2 2 4 R R
Operating instructions and warnings
22

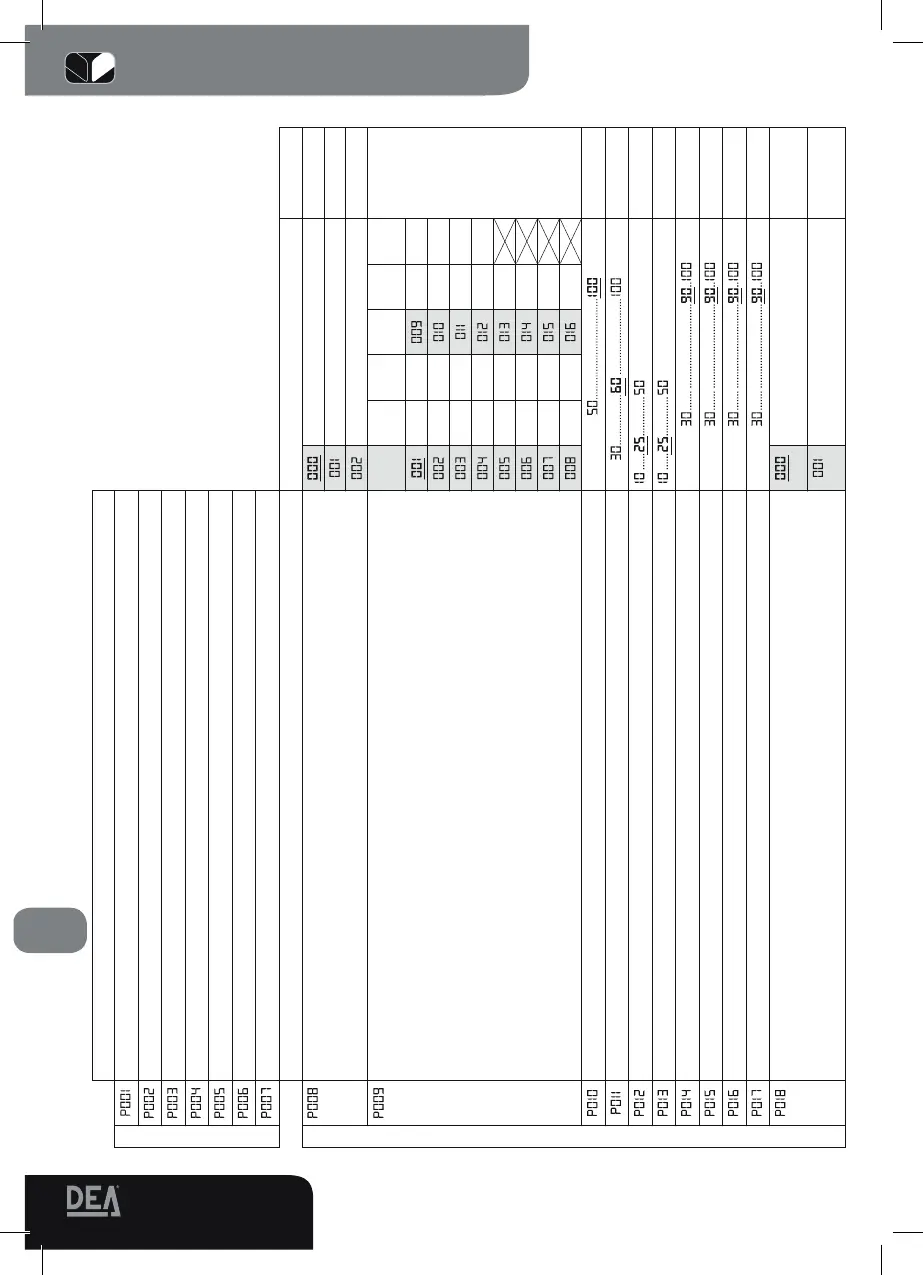

PROCEDURE DESCRIPTION
PROCEDURE
Positioning of leaf M1
Positioning of leaf M2
Memorization of the motors’ stroke
Deletion of the radio receiver memory
Transmitters memorizing
Search and deletion of a transmitter
Resetting of default parameters
PARAMETER DESCRIPTION SETTABLE VALUES
1
USER
2
PARAMETRES
Type of coding of the radio receiver
HCS fixed part only
HCS rolling code
HT12E dip switch
Channel selection and linking to “start” and “pedestrian” inputs
start
pedes-
trian
start
pedes-
trian
CH1 CH2 CH3 CH4
CH1 CH3 CH4 CH1
CH1 CH4 CH4 CH2
CH2 CH1 CH4 CH3
CH2 CH3 CH1 CH2
3
CH2 CH4 CH2 CH2
3
CH3 CH1 CH3 CH2
3
CH3 CH2 CH4 CH2
3
Motors’ speed during normal stroke (calculated as % of max speed)
Motors’ speed during slow-down phase (calculated as % of max speed)
Slow-down duration of M1 (expressed as % of total stroke)
Slow-down duration of M2 (expressed as % of total stroke)
Motor 1 force while opening
Motor 1 force while closing
Motor 2 force while opening
Motor 2 force while closing
Selection of type of external safety device: rib / barrier. If the ribs are activated the
movement direction of both motors is inverted; during slow-down phase, the activation
is interpreted as stroke end. If the barrier is activated the movement of both motors is
stopped.
safety ribs
photoelectric barriers
