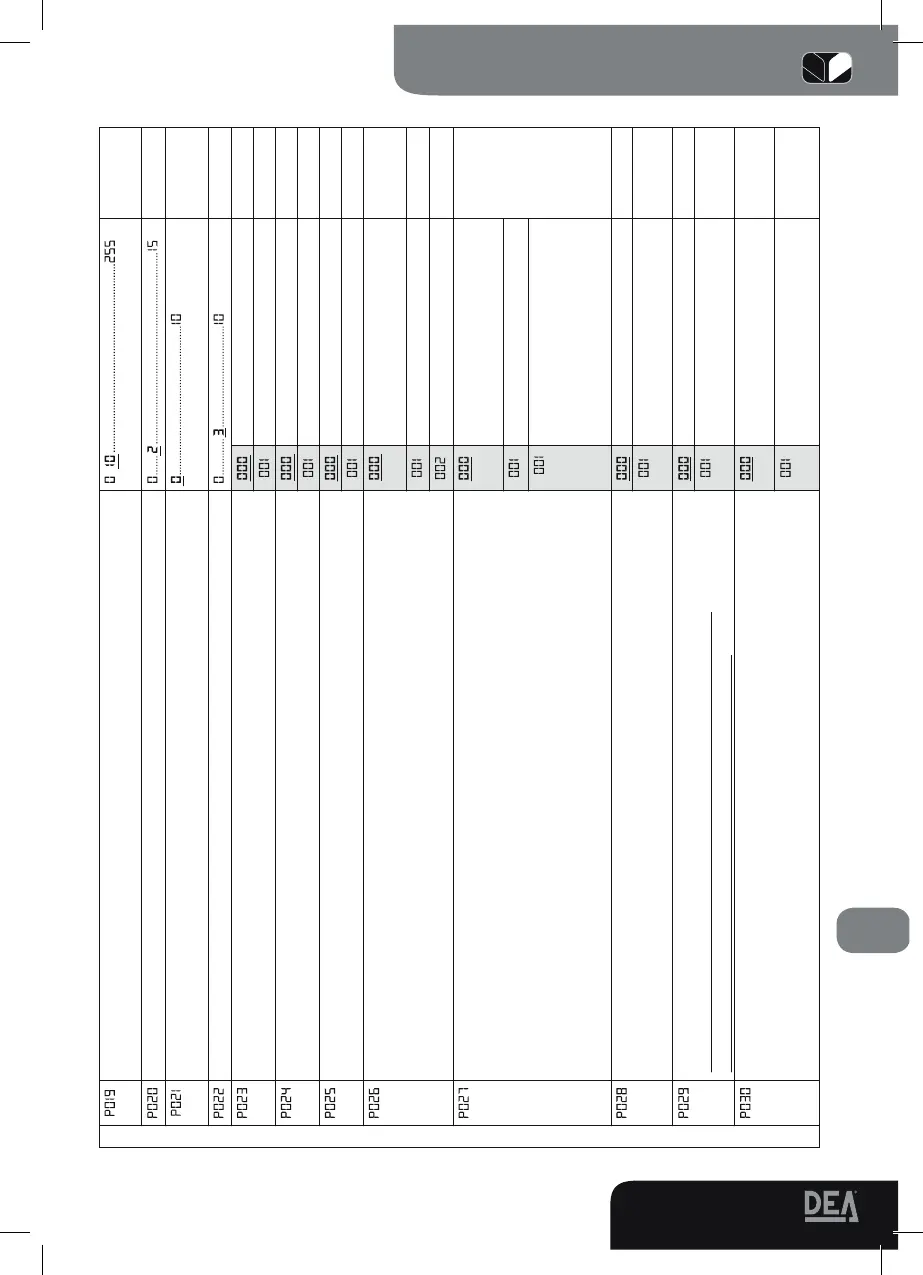

Time of automatic closing (expressed in sec). If = 0 the automatic closing is
deactivated
Time of pre-flashing (expressed in sec)
Time of phase displacement in opening (expressed in sec) ATTENTION: if=0 the exit
which controls the electric lock is automatically deactivated
Time of phase displacement in closing (expressed in sec)
Collectivity function: if it is activated it deactivates both start and pedestrian inputs for
the whole duration of automatic opening and closing
deactivated
activated
Ram blow function: if it is activated, it pushes the motors close for one second before
each opening movement, so as to ease the releasing of any electric lock
deactivated
activated
Operating program: reversal (start->open, start->close, start->open ...), s t e p - b y-
step (start->open, start->stop, start-close...)
inversione
step-by-step
PHOTO input functioning: if=0 photocells are activated while closing and at start when
gate is closed; if=1 photocells are always activated; if=2 photocells are activated while
closing only. PHOTO input activation, when activated, provokes: the inversion (while
closing), the stop (while opening) and prevent the starting (when gate is closed).
photocells are activated while
closing and when gate is closed
photocells are always activated
fotocells are activated at closing only
Clean contact operation:
- If = 0, open gate fixed warning light, the contact is always closed when the gate is
moving or opened, it opens again only when the closing movement is completed
- If =1, open gate intermittent light, the contact is slow while opening and fast while
closing, always closed when the gate is opened, it opens again when the closing
movement is completed
- If>1 courtesy light, the contact is closed during every movement, it opens again when
the motor stops according to a pre-settable delay (expressed in sec)
open gate fixed warning light
open gate intermittent warning light
>
courtesy light with settable delay-off
Short reversal at end of stroke: when each leaf reaches the end of stroke, it reverses
shortly the movement so as to “release” the mechanical stress due to the leaf’s pressure
on the end of stroke itself.
deactivated
activated
One motor function: if it is activated, the control board controls motor 1 only
ATTENTION: activate this function before memorizing motor’s stroke.
ATTENTION: When 1 motor is working (P029=1) set P022=0
deactivated
activated
Searches for end of stroke while opening: when activated, operators stop only at their
arrival et the end of stroke. If deactivated, operators stop on the point memorized
during the learning procedure. Its activation assures a complete opening even in the
presence of the operator inertia and/or in case of many inversions during the stroke.
deactivated
activated
