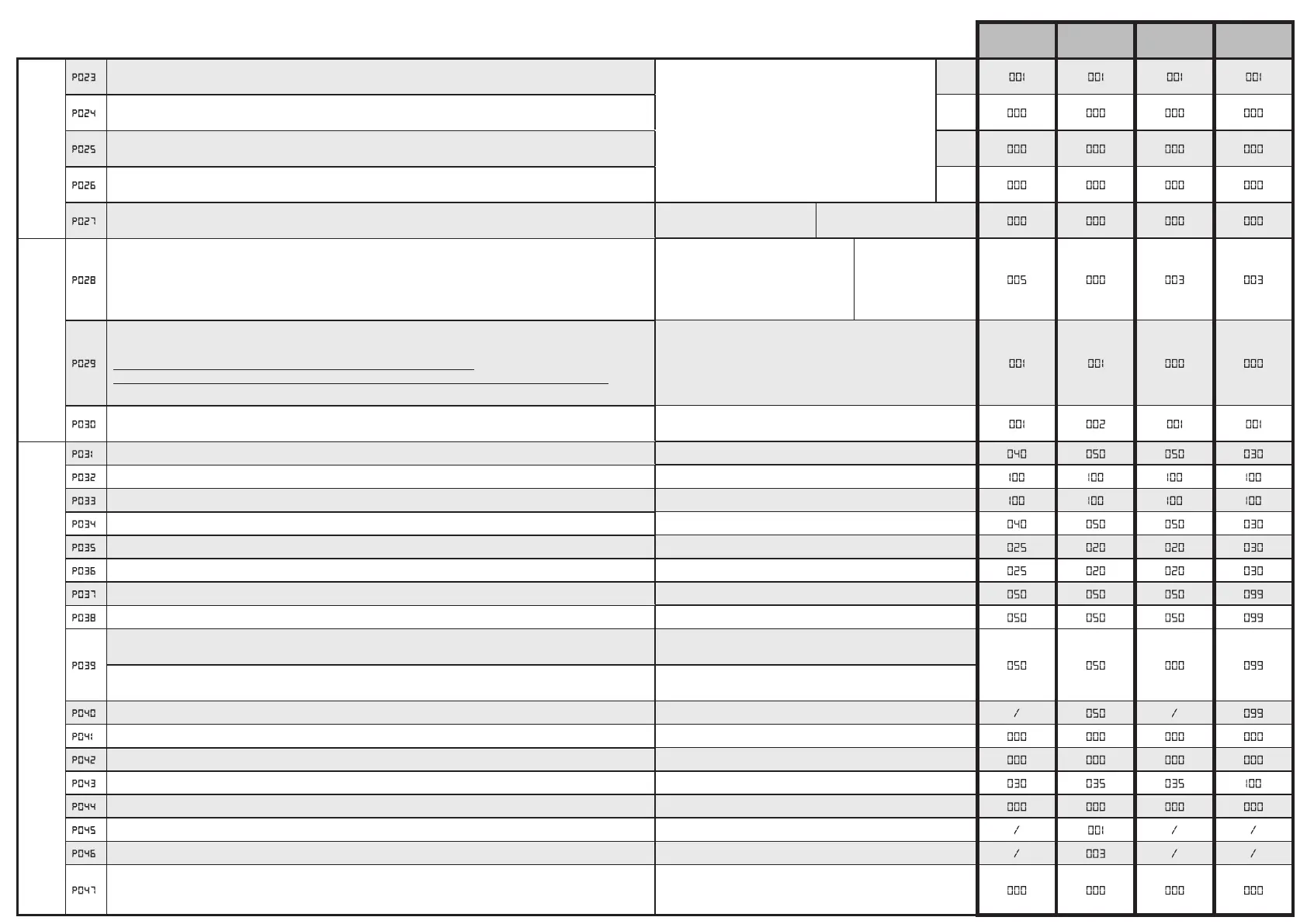

INPUTS CONFIGURATION
PARAMETERS
Allocation of CHANNEL 1 of remotes
Allocation of CHANNEL 2 of remotes
Allocation of CHANNEL 3 of remotes
Allocation of CHANNEL 4 of remotes
Selection of type of remotes
OPERATORS
CONFIGURATION PARAMETERS
Selection type of operators
Selected work with or without encoders.
CAUTION: Remember to correctly set the jumpers J5 and J9 (see table 1)
WARNING: J5, J9 and P029 must be set correctly before performing the procedure for programming
Selectioning operators number
OPERATING PARAMETERS
Operators speed adjustment during slow-down while opening
Operators speed adjustment during the stroke while opening
Operators speed adjustment during the stroke while closing
Operators speed adjustment during slow-down while closing
Slow down duration adjustment while opening
Slow down duration adjustment while closing
Operator 1 force adjustment while opening (if = 100% obstacle detection deactivated)
Operator n.1 force adjustment while closing (if = 100% obstacle detection deactivated)
TYPE 00 - 01 - 03 ONLY: Operator n.2 force adjustment while opening (if = 100% obstacle detection
deactivated)
TYPE 02 ONLY: Secondary force adjustment in closing: adjusts the motor’s force during the last part of the
closing movement de ned by P058
Operator n.2 force adjustment while closing (if = 100% obstacle detection deactivated)
Automatic closing times adjustment (if = 0 automatic closing deactivated)
Pedestrian automatic closing time adjustment (se = 0 pedestrian automatic closing deactivated)
Pedestrian stroke duration adjustment
Pre- ashing time adjustment
Adjustment of phase displacement time while opening
Adjustment of phase displacement time while closing
Collectivity function: if it is activated it deactivates both opening and closing inputs for the whole duration of
automatic opening and closing
TYPE
00
TYPE
01
TYPE
02
TYPE
03
• 000: NONE (unused parameter)
• 001: START (start)
• 002: PEDESTRIAN (pedestrian)
• 003: OPEN (separated open)
• 004: CLOSED (separated close)
• 005: Unused
• 006: Unused
• 007: ELOCK-IN (electric-lock activation. See P062)
• 008: AUX_IN (with NET_EXP only)
CH1
CH2
CH3
CH4
• 000: HCS x-code
• 001: HCS rolling-code
• 002: Dip-switch
• 003: DART
• 000: GEKO
• 001: LOOK - MAC - STING
• 002: GHOST 100/200
• 003: 500 - 502 - 902 - PASS - 550PL -
ANGOLO
• 004: 502MT/24 - 902R/24 - STOP
• 005: LIVI 5/24
• 006: LIVI 8/24
• 007: REV
• 000: motors with encoder
• 001: engines without encoder
• 001: one operator
• 002: two operators
15%tot........................100%tot
15%tot........................100%tot
15%tot........................100%tot
15%tot........................100%tot
0%tot............................80%to
0%tot............................80%tot
15%tot…...........................100%tot
15%tot…...........................100%tot
15%tot…...........................100%tot
0%tot...................................100%tot
15%tot…...........................100%tot
0sec...................................255sec
0sec...................................255sec
5%tot…...........................100%tot
0sec…….10sec
0sec……………30sec
0sec……………30sec
• 000: disabled
• 001: activated only upon opening
• 002: activated on automatic opening and closing
