DSH/DSV/RSH/DBH/RBH Series Dehumidifier
Owner’s Manual
Data subject to change without notice.
220

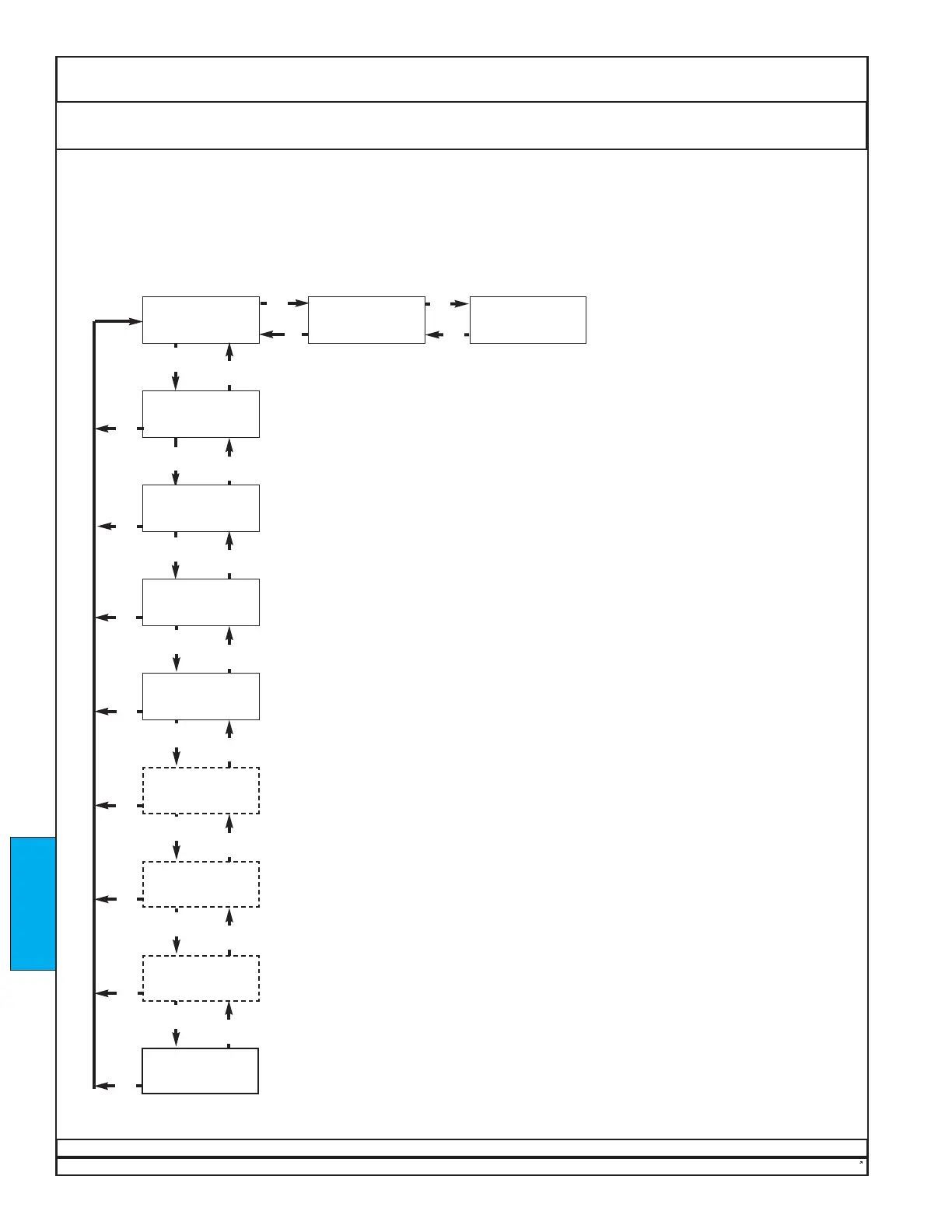

Startup Controller Interface
PROGRAM: xxxxxxxx
MAIN MENU
SCROLL DOWN
FOR OPTIONS
Default Screen
GO TO
AUTO/OFF CONTROLS
GO TO
SENSOR READINGS
GO TO
SET POINTS
GO TO
PURGE SETTINGS
GO TO
OCCUPIED PERIOD
OPTIONS
GO TO
CLOCK SETTINGS
There are many possible status messages. This screen is the
gateway to other screens that display these status messages.
See Operation - Controller Messages.
The unit ships with the major components disabled in software.
This screen is the gateway to other screens used to enable or
disable the major components of the DRY-O-TRON®. See
Startup - Enable Operation.
There are several sensors throughout the unit. This screen is
the gateway to other screens used to display the readings of
these sensors. See Startup - Read Sensors or Operation -
Read Sensors.
This screen is the gateway to other screens used for setting the
operating set points of the unit. The set points are protected by
a user password. See Startup - Adjust Set Points or
Operation - Adjust Set Points.
This screen appears only on units with the optional Purge fea-
ture. This screen is the gateway to other screens used to adjust
or trigger Purge mode. See Startup - Pre-Startup Adjustments.
This screen appears only on units with the optional Occupation
feature. This screen is the gateway to other screens used to
adjust or trigger Occupied periods. See Startup - Pre-Startup
Adjustments.
This screen appears only on units with the optional Occupation
feature. This screen is the gateway to other screens used to set
the internal clock (where used). See Startup - Pre-Startup
Adjustments.
GO TO
SERVICE MENU
This screen is the gateway to other screens used for service
monitoring or modification. Consult Dectron or a Dectron-
certified technician.
This displays the version of the
operating program.
GO TO
STATUS MESSAGES
HUMIDITY aaa / bbb %
ROOM AIR ccc / ddd F
NOTE: In the images and the discussion, “aa”, “bb”, “cc”, “dd”, and “xxxxxxxx” are placeholders. Your screen will
actually show the current values for your unit.
NOTE: For a controller interface map, see Operation.
STARTUP
↵↵
↑↑
↑↑
↑↑
↑↑
Esc
Esc
Esc
Esc
Esc
Esc
Esc
Esc
Esc
Prg
Esc
↓↓
↓↓
↓↓
↓↓
↑↑
↓↓
↑↑
↓↓
↑↑
↓↓
↑↑
↓↓
6.14
