Air Filters Maintenance Operation
CHECK THAT ALL FILTERS ARE CLEAN AND IN PLACE
Draw Tabs
Return-Air
Filters
Return-Air
Filters
Return-Air
Filters
FILTER
FILTER
FILTER

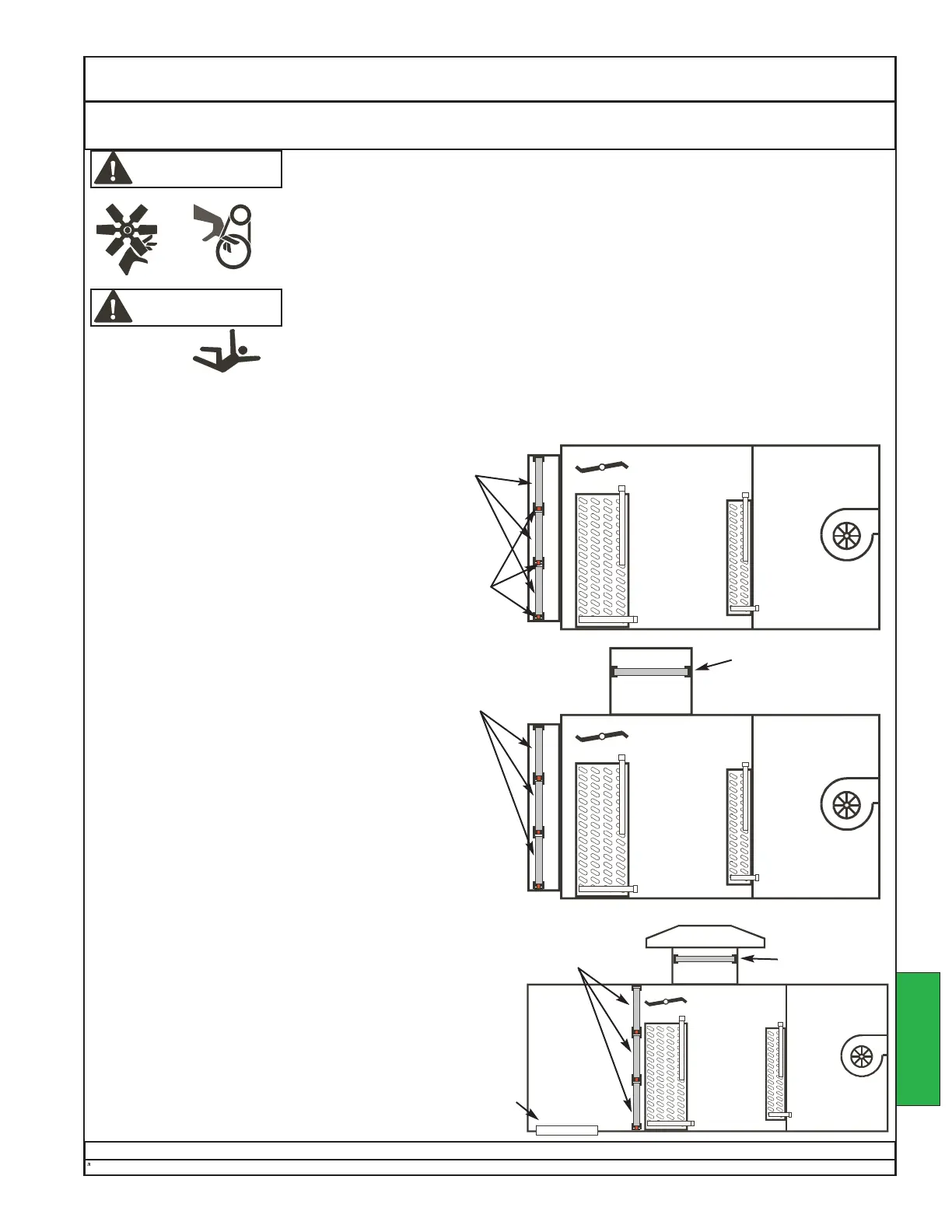

Basic horizontal units may have return-air
filters just before the cooling coil. Use draw
tabs (if any) to remove all filters, then replace
them. This assures that all filters are
present.
The size and number of filters and draw
tabs may vary.
FILTER
FILTERFILTER
FILTER
Some horizontal units may have a connection
for outdoor-air intake, as shown. Use draw
tabs to remove all filters, then replace them.
This assures that all filters are present.
Filters for outdoor air must be moisture
resistant.
The size and number of filters and draw tabs
may vary.
FILTER
FILTER
FILTERFILTER
Some horizontal units may have bottom
return-air connection, as shown. Most such
units have lift-out return-air filters accessible
through a door.
Filters for outdoor air must be moisture
resistant.
The location, size, and number of filters may
vary.
Return-Air
Connection
Samples
Actual layout
may vary.
Outdoor-
Air Filters
Outdoor-
Air Filters
Risk of contact with moving parts. Can cause injury or death.
This product contains rotating parts and V-belt drives. Some procedures could
expose personnel to the risk of injury or death from contact with these parts.
Using only approved devices (e.g. locking safety switch), disconnect, lockout, and
tagout all sources of electrical energy before working inside the unit cabinet. Allow
adequate time for rotating parts to stop. Follow all applicable safety regulations.
Do not operate the unit until ductwork or a screen is installed at each blower outlet.
Risk of falling. Can cause injury or death.
Depending on the size and location of this product, some installation, service, and
maintenance procedures could expose personnel to the risk of injury or death by falling.
Use fall-protection equipment as appropriate.
