The length of the tubes connecting the remote air-cooled condenser to the DRY-O-TRON
®
must not exceed that
shown on the DRY-O-TRON
®
nameplate (See Product Description - Unit Nameplate.)
Select a suitable location for the condenser, where (a) it will not be subject to damage from traffic,
falling ice, or vandalism, (b) it will not be in the vicinity of steam, hot air,
or kitchen or
fume exhausts,
and (c) where airflow will not be restricted. Any supporting structure must be suitable for the weight of
the condenser. Allow clear space as shown below. Spacing requirements are also subject to applicable
electrical codes.
Do not point the fans of a horizontal air-flow condenser within 60° of the direction of the
prevailing wind.
NOTE 1: The condenser should be mounted level to within ¼ bubble. Shim as necessary.
NOTE 2: The condenser legs should be bolted to the supporting structure.
NOTE 3: Horizontal-airflow condensers cannot be mounted vertically.
DECTRON
Dectron, Inc. March 2012
Owner’s Manual
DSH/DSV/RSH/DBH/RBH Series Dehumidifier
Data subject to change without notice.
65

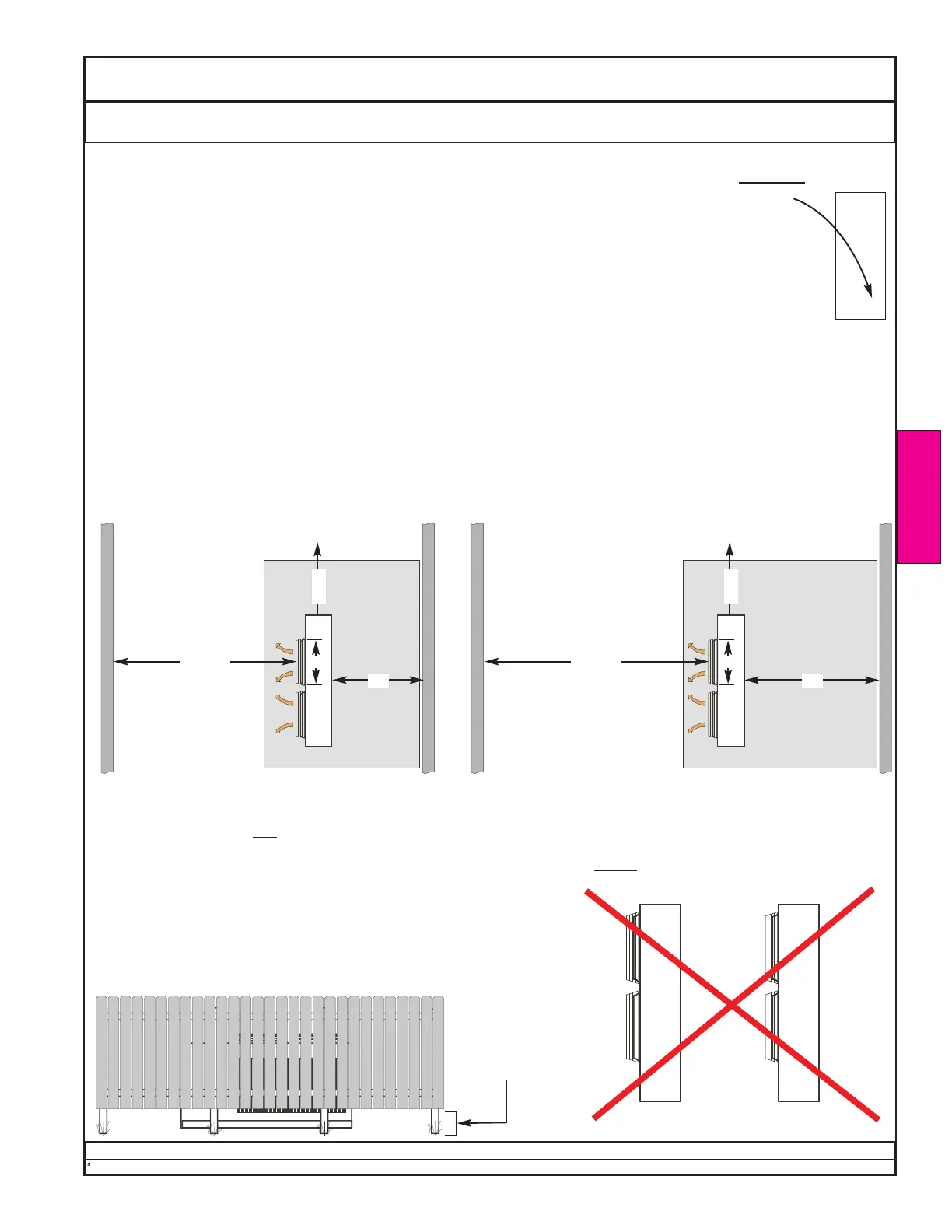

Remote Condenser or DryCooler Lifting and Locating
NOTE: Horizontal-airflow condensers
cannot be mounted for
vertical airflow.
Never
place a horizontal airflow con-
denser behind another one.
minimum
12 in. (30 cm)
The condenser should not
be enclosed within a
solid fence or wall, or in a pit, since such structures
promote recirculation of air. If a solid fence or wall
must be installed, it must not extend lower than 12
inches (30 cm) above grade. Fences lower than
12 inches above grade may cause recirculation of
heated air and a corresponding reduction in
performance.
Vegetation under a fence must be kept short.
any obstruction
any adjacent structure
Top View of Single Fan Row Condenser
NOTE 4: The clearance in front of the electrical enclosure must be the greatest of:
a) (Canada) the greater of 1 meter or the distance specified by CEC 2-238, or
b) (U.S) the greater of 36 inches (230V condensers), 42 inches (460V condensers), or the
distance specified by NEC 110-26, or
c) the distance specified by other applicable code.
Horizontal-Airflow Condensers
minimum
10 ft
(3 m)
W
2W
Note 4
any obstruction
Top View of Dual Fan Row Condenser
minimum
10 ft
(3 m)
W
3W
Note 4
DRY-O-TRON ®
MODEL #:
SERIAL #:
I.D.
D
ELECTRICAL RATING
460 V ac, 3 ph, 60 Hz
COMPRESSOR LRA RLA
COMPRESSOR LRA RLA
COMPRESSOR LRA RLA
COMPRESSOR LRA RLA
BLOWER MOTOR HP FLA
BLOWER MOTOR HP FLA
BLOWER MOTOR HP FLA
COND. FAN MOTOR HP FLA
COND. FAN MOTOR HP FLA
PUMP MOTOR HP FLA
ENTHALPY MOTOR HP FLA
ELECTRIC HEATER kW A
Max. L.A.T. (°F)
SERVICE POWER
SPACE HEATING COIL
PSIG Max.
MCA A MAX. FUSE/ CKT. BKR.*
15
A
*(HACR type per NEC)
R-22 FACTORY CHARGE
lbs
AIR VOLUME CFM
BELT SIZE
WIRING DIAGRAM
REFRIGERANT DESIGN PRESSURES: HIGH/LOW 300/150 PSIG
COMFORMS TO ANSI/UL STD 1995
CERTIFIED TO STD CAN/CSA-
C22.2 NO. 236
LR 45671
FABRIQUÉ AU CANADA / MADE IN CANADA
REF.:
POOL # 1: ft² POOL # 3: ft²
E.W.T.: °F E.W.T.: °F
POOL # 2: ft² POOL # 4: ft²
E.W.T.: °F E.W.T.: °F
AIR TEMP.: °F R.H.: %
R-22 TOTAL SYSTEM CHARGE:
lbs
OIL TO BE ADDED AT START-UP:
oz
OIL TYPE:
MAX. LENGTH OF REF. LINES (ONE WAY) ft
BETWEEN D.O.T. & REMOTE CONDENSER:
LINE SIZE:
AIR COOLED COND. MODEL #:
HOT GAS: in
LIQUID: in
50379
