Where the supply diffusers will be overhead, they should be primarily along any exterior walls and directed toward
windows, doors, or other surfaces that might cool below room-air dew point. Allow 3 to 5 CFM per square foot (15 -
26 l/s per square meter)of exterior glass. If possible, direct supply air through linear diffusers with steerable vanes.
In the case below, the bottom of the return grille should be located 8 to 15 ft. (2.5 to 4.5 m) up an interior wall.
Air speeds over a pool surface should be 10 to 50 FPM (0.05 to 0.25 m/s) in heating mode. Note that temperature
and humidity buoyancy effects should be considered. Dectron offers computerized analysis of airflows.
For tall or very tall windows, more complex supply-diffuser placements may be necessary. See Installation - Air
Distribution and Installation - Ducts in this manual for further considerations.
High ceilings or large room dimensions may require more than one return grille.
For units equipped with the Purge feature, see Appendix M6 - Purge for further considerations.

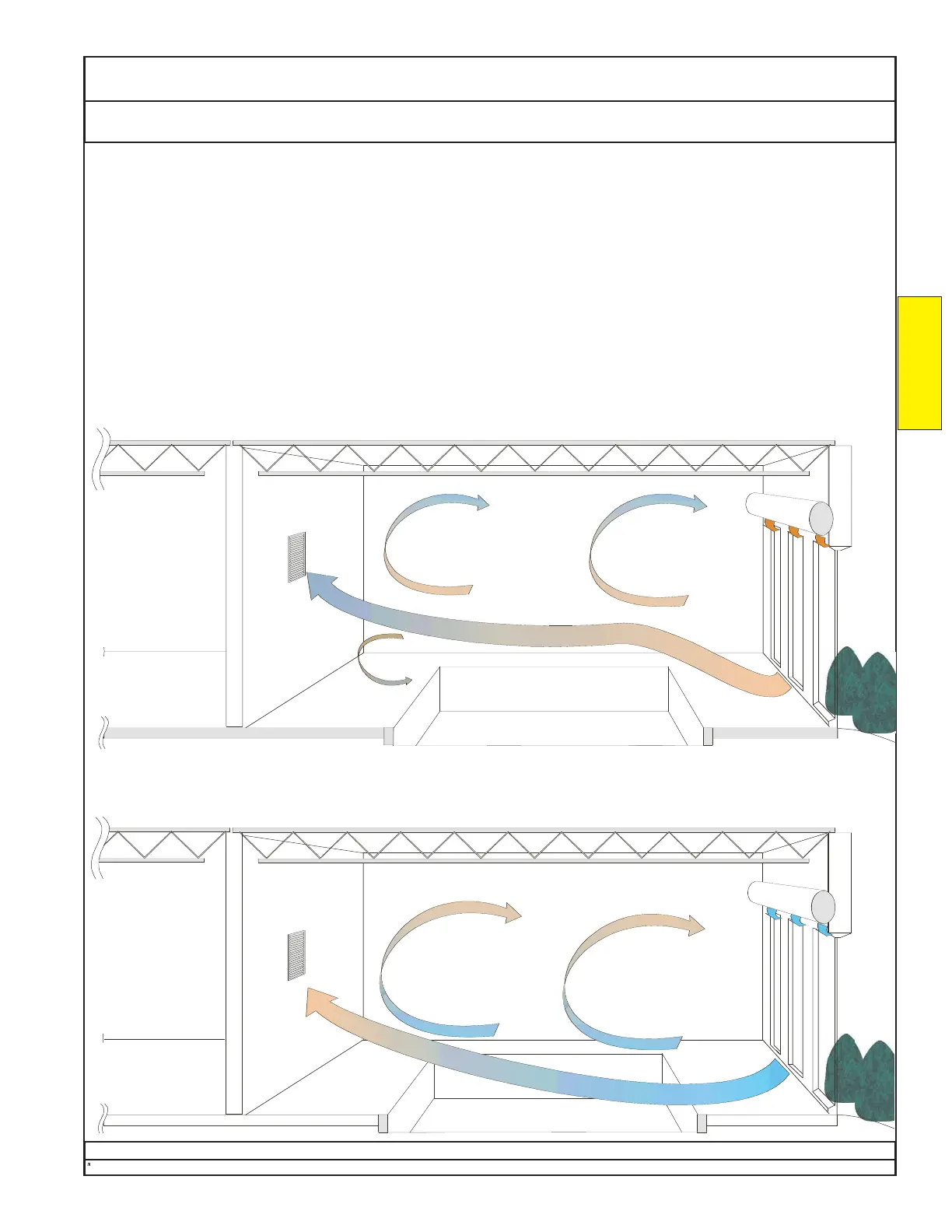

Overhead Supply-Air Distribution
