Dectron DRY-O-TRON Supervisaire DSV 020 User Manual

Dectron, Inc. March 2012
DECTRON
Owner’s Manual
DSH/DSV/RSH/DBH/RBH Series Dehumidifier
Door Clearances Lifting and Locating
Data subject to change without notice.
57
In some installations, a unit may have to go through a narrow
door to reach the final destination.

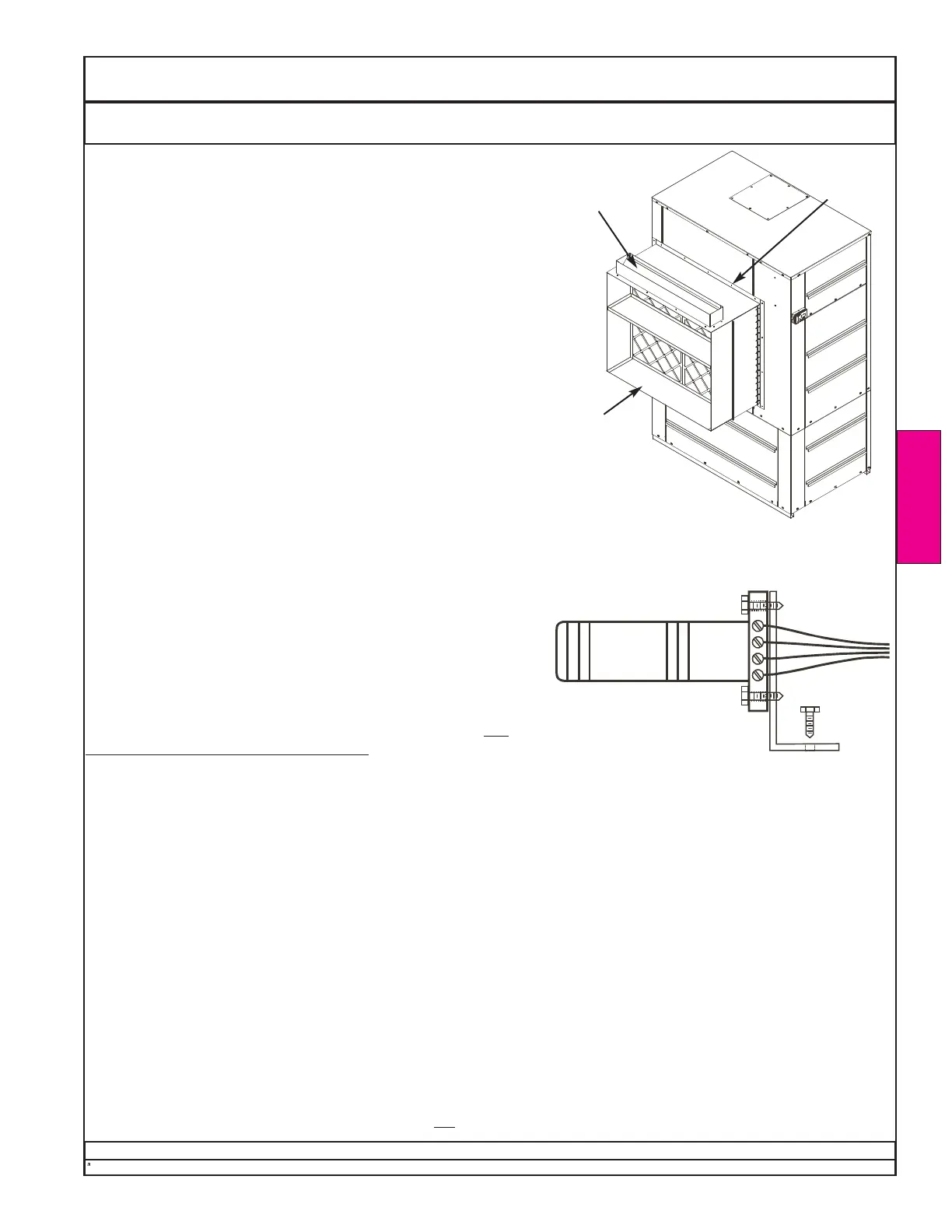

For units with vertical cabinets, the filter box can be
temporarily removed to reduce the overall width.
If the outdoor-air damper has an electric actuator, the wires
must be located and disconnected. Mark the wires for proper
re-connection.
Remove and retain the box-flange screws to remove the filter
box. Carefully remove the filter box -
a) taking care not to damage any heat exchanger fins,
b) taking care not to damage any exposed sensors, and
c) taking care not to damage the filter box.
In some cases, a humidity and/or temperature sensor may
protrude slightly from the remaining cabinet. If necessary,
remove and retain its bracket-mounting screws, and reposition
the sensor and bracket to maximize clearance.
Tape cardboard over the exposed heat-exchanger fins. It is
import
ant not to allow the fins to be bent. Should fins become
bent, use extreme care while straightening them to prevent
scratching the film coating on each fin.
After the doorway has been passed:
1. Remove the cardboard.
2. Remount the sensor(s) as necessary.
3. Reconnect any motorized-damper actuator wires.
4. Remount the filter box, using all box-flange screws.
NOTE: Take care not to cross-thread the screws.
NOTE: It may be necessary to seal or tape the flange.
outdoor-air
connection and
damper
return-air
connection
box-flange
screws (all
around)
Sample
Actual appearance
may vary.
Sample
Actual appearance
may vary.
Temporary disassembly of filter boxes by methods described in the DRY-O-TRON® owners manual does not affect
the DRY-O-TRON
® warranty, except that:
1. The cost of labor required to dis-assemble and re-assemble parts, components, and/or assemblies is not covered
by the warranty.
2. The cost of repair or replacement due to any loss or damage to the filter box, filters, dampers, actuators, sensors,
heat exchangers, wiring, fasteners, or other affected parts or assemblies resulting from such dis-assembly and/or
re-assembly, whether functional or cosmetic, is not
covered by the warranty.
LIFTING AND
LOCATING
3.7
