Dectron DRY-O-TRON Supervisaire DSV 020 User Manual

Dectron, Inc. March 2012
DECTRON
Owner’s Manual
DSH/DSV/RSH/DBH/RBH Series Dehumidifier
Data subject to change without notice.
59

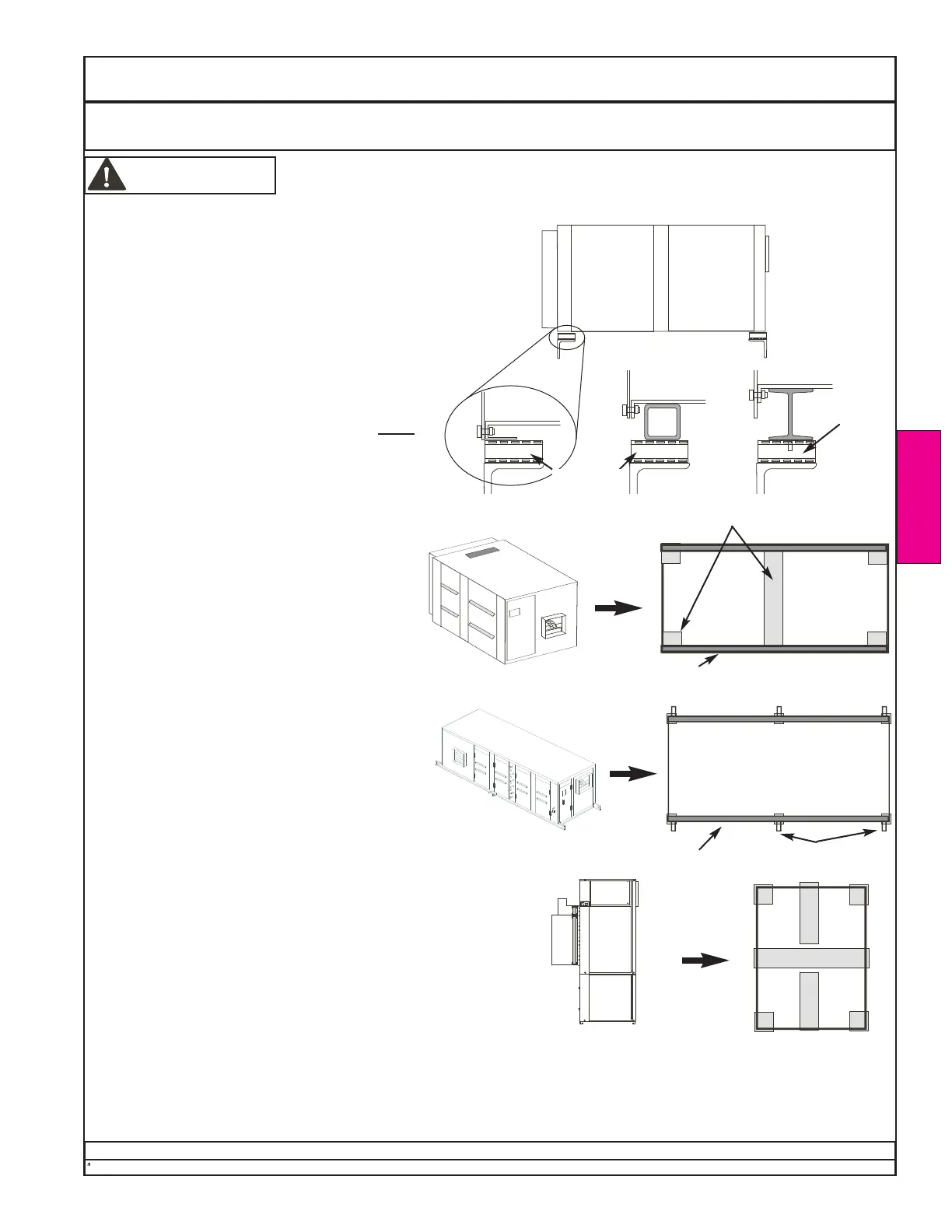

Unit Support & Vibration Isolation Lifting & Locating
Horizontal units size 050 and smaller should
at least be supported at the corners and mid-
dle as shown at right. More supports may be
required to maintain straightness.
Where units must be supported from over-
head, any supports must not interfere with
service access as described on a
previous page.
Vertical units should at least be supported at each corner
and along the midlines, as shown at right. More supports
may be required to maintain straightness.
All units should be supported on a steady surface. Where mounted above grade, the unit should be firmly
attached to an adequate supporting structure. Outdoor units must be firmly fastened to prevent movement even in
high winds.
Where large units must be installed overhead, provide suitable under-base support with a service mezzanine. The
support must include horizontal stabilization. See section Lifting & Locating - Overhead Air Handler.
pads, rails, etc. (by others)
unit side rails
unit side rails
unit lifting lug
Unit Footprint
Unit Footprint
Unit Footprint
ENCLOSURE
BASE
ENCLOSURE
BASE
ENCLOSURE
BASE
ANTI-VIBRATION
PAD
DRY-O-TRON
ANTI-VIBRATION
PAD
All units must be supported to maintain the
straightness of the frames and to prevent binding
of access doors or panels.
Install anti-vibration springs or pads such as
machinery cork, rubber pads, or other approved
isolation materials to isolate the unit from the
supporting structure (see drawing at right).
IMPORTANT!
Do not mount the unit on a plywood floor or on
any other material that will resonate.
IMPORTANT!
Where seismic mounts are used, care must be
taken to prevent strains on conduits, refrigera-
tion tubes, water tubes, or condensate tubes.
All horizontal units should be uniformly
supported along the side rails. Where this is not
possible, the following minima apply:
Horizontal units size 060 and larger with
lifting lugs should at least be supported under
the frames near each lifting lug. More
supports may be required to maintain
straightness.
LIFTING AND
LOCATING
WARNING
Risk of structural collapse. Can cause property damage, injury, and death.
All supporting structures should be designed and built by qualified persons only.
3.9
