NOTICE
Risk of unit damage. Risk of building damage from water leakage.
Apply the requirements applicable to your unit. Do not confuse options.
Dectron, Inc. March 2012
DSH/DSV/RSH/DBH/RBH Series Dehumidifier Owner’s Manual
Data subject to change without notice.
92
Installation Ducts Airflow Rates
INSTALLATION
DECTRON

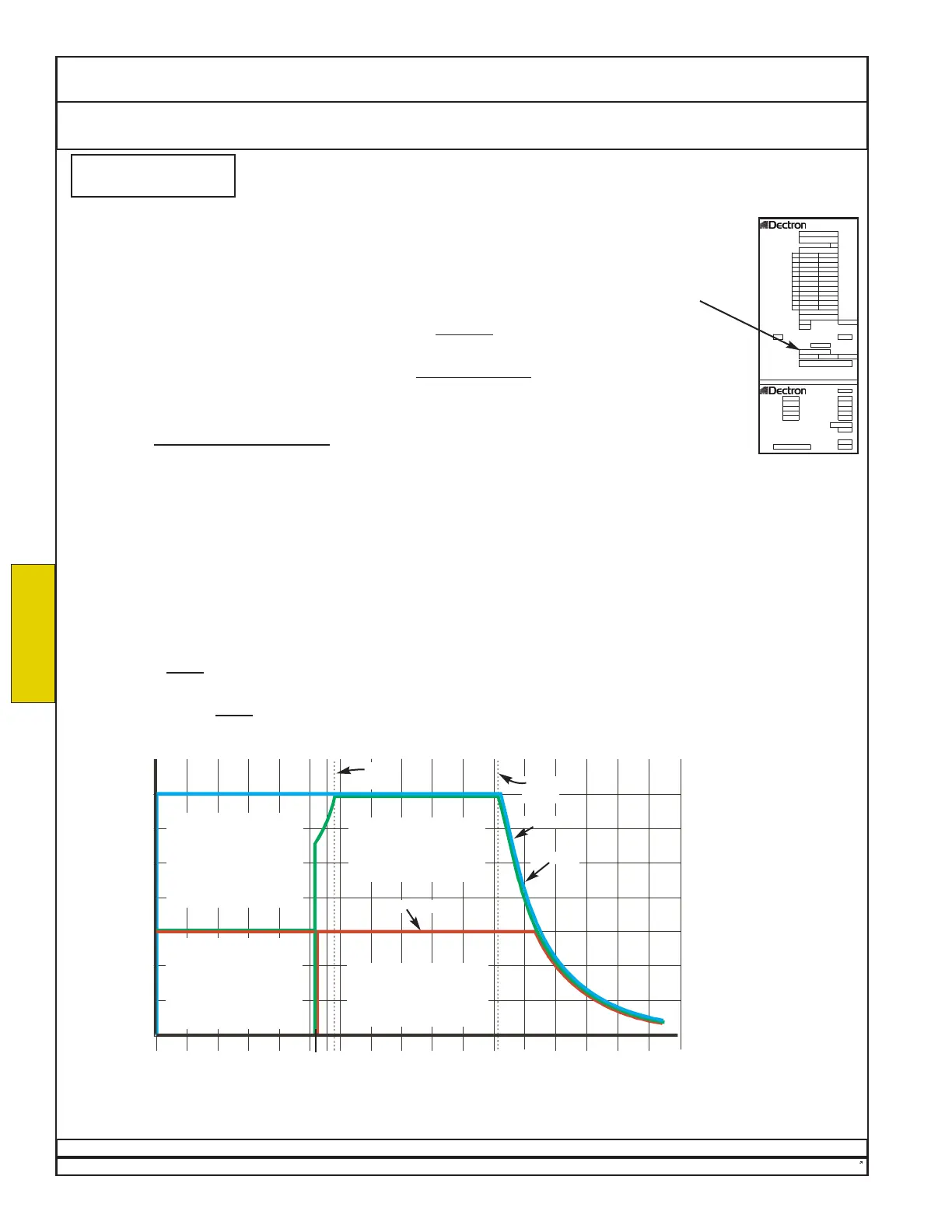

Determine airflow rates
The maximum amount of outdoor air that can enter a unit depends on the outdoor temperature
and the unit options.
••
With the space conditions near the nameplate values, the pressure-corrected
airflow rate in the supply duct must be within ±10% of the nameplate value AIR VOLUME.
The return duct must be sized for AIR VOLUME. There are other requirements
elsewhere in this manual. Proper airflow rates are essentia
l to reliable operation.
••
The outdoor-air intake (if any) flow rate is determined by the project engineer. Where connected
to the DRY-O-TRON
®, any outdoor airflow rate must not exceed the values shown in the chart
below.
NOTE: Units with the SmartSaver option may have different allowable flow rates. Request and
refer to Appendix M3 SmartSaver.
NOTE: Units with the Economizer option may have up to 100% of nameplate value AIR VOLUME.
This rate is only allowable during Economizer mode. During other times, the maximum rate
of outdoor-air intake should be determined from the graph below.
NOTE: Units with the Intelligent Energy Saver
® option may have up to 100% of nameplate value AIR VOLUME.
This rate is only allowable during Intelligent Energy Saver mode. During other times, the maximum rate of
outdoor-air intake should be determined from the graph below.
NOTE: Units with the Purge option may have up to 100% of nameplate value AIR VOLUME.
This rate is only allowable during Purge or EconoPurge modes. During other times, the maximum rate of
outdoor-air intake should be determined from the graph below.
IMPORTANT! Refer to submittal data for the maximum allowable external static pressure drops. Ducts
must
be designed and installed to have no more than the maximum allowable external static
pressure drop.
IMPORTANT! Ducts must
be designed and installed to minimize energy losses due to system effect.
DRY-O-TRON ®
MODEL #:
SERIAL #:
I.D.
D
ELECTRICAL RATING
460 V ac, 3 ph, 60 Hz
COMPRESSOR
LRA RLA
COMPRESSOR
LRA RLA
COMPRESSOR
LRA RLA
COMPRESSOR
LRA RLA
BLOWER MOTOR HP FLA
BLOWER MOTOR HP FLA
BLOWER MOTOR HP FLA
COND. FAN MOTOR HP FLA
COND. FAN MOTOR HP FLA
PUMP MOTOR HP FLA
ENTHALPY MOTOR HP FLA
ELECTRIC HEATER kW A
Max. L.A.T. (°F)
SERVICE POWER
SPACE HEATING COIL
PSIG Max.
MCA A MAX. F USE/CKT. BKR.*
15
A
*(HACR type per NEC)
R-22 FACTORY CHARGE
lbs
AIR VOLUME CFM
BELT SIZE
WIRING DIAGRAM
REFRIGERANT DESIGN PRESSURES: HIGH/LOW 300/150 PSIG
FABRIQUÉ AU CANADA / MADE IN CANADA
REF.:
POOL # 1: ft² POOL # 3: ft²
E.W.T.: °F E.W.T.: °F
POOL # 2: ft² POOL # 4: ft²
E.W.T.: °F E.W.T.: °F
AIR TEMP.: °F R.H.: %
R-22 TOTAL SYSTEM CHARGE:
lbs
MAX. LENGTH OF REF. LINES (ONE WAY) ft
BETWEEN D.O.T. & REMOTE CONDENSER:
LINE SIZE:
AIR COOLED COND. MODEL #:
HOT GAS: in
LIQUID: in
32°F
0°C
5%
35%
30%
25%
20%
15%
10%
5%
35%
30%
25%
20%
15%
10%
50°F
10°C
100°F
38°C
91°F
32°C
150°F
66°C
allowable outdoor-air
intake rates for units
without
air-conditioning option
allowable outdoor-air
intake rates for units
with A/C option
(includes area below)
Allowable flowrate of outdoor air entering a unit, as a percentage of AIR VOLUME
Intake-Air
Temperature
38°F
3°C
Example1
Example2
Example3
0°F
-18°C
-20°F
-29°C
allowable outdoor-air
intake rates for units
with A/C option and
either O/A preheat or
the SmartSaver option
(includes area below)
allowable outdoor-air
intake rates for units
without A/C option but
with either O/A preheat
or with the
SmartSaver option
4b.14
