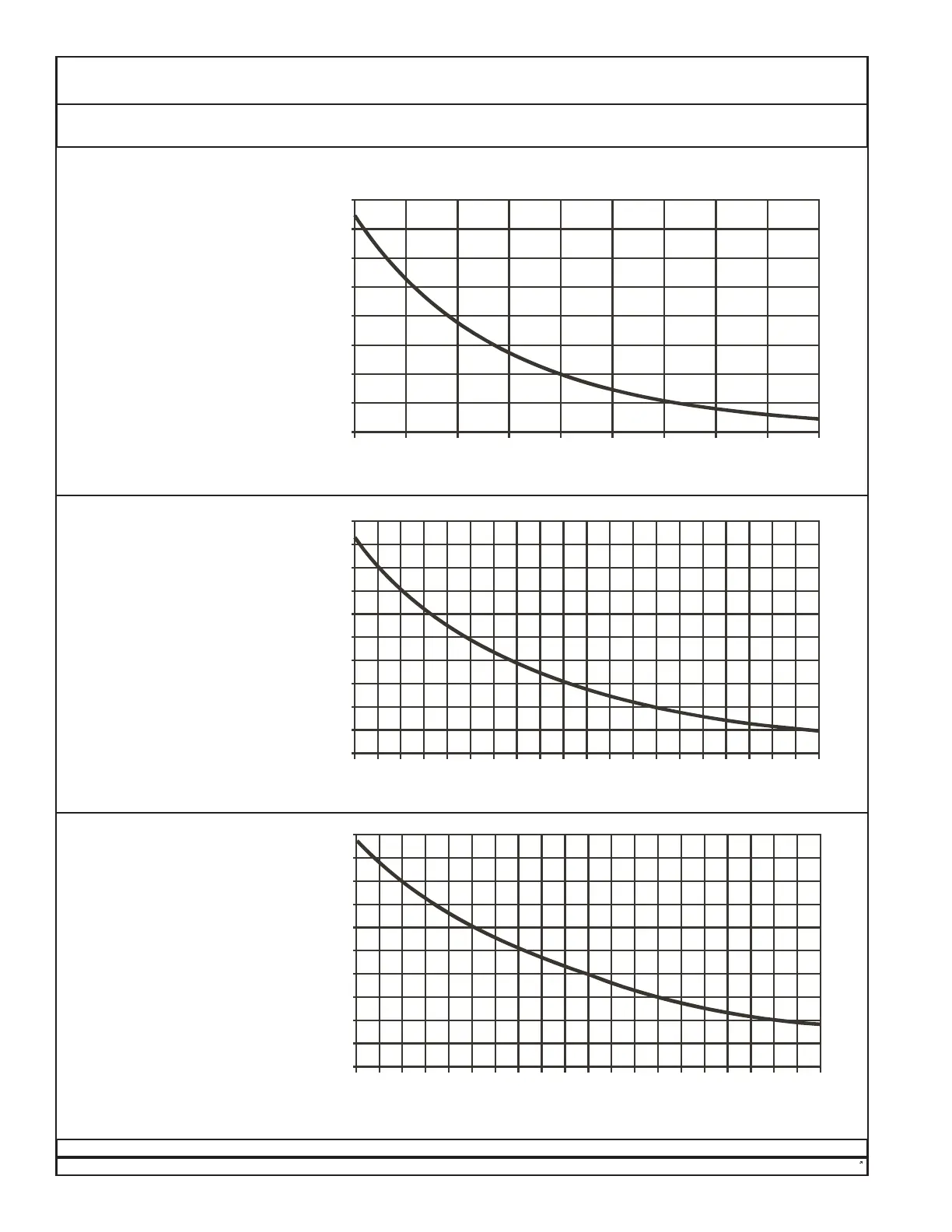

Service Temperature Sensors
1000
900
800
700
600
500
400
300
200
100
0
150 160 170 180 190
Temperature (°F)
200 210 220 230 240 250
Sensor Resistance (Ω)
10000
9000
8000
7000
6000
5000
4000
3000
2000
1000
0
50 60 70 80 90
Temperature (°F)
100 110 120 130 140 150
Sensor Resistance (Ω)
160000
140000
120000
100000
80000
40000
60000
20000
0
-40 -30 -20 -10 0
Temperature (°F)
10 20 30 40 50
Sensor Resistance (Ω)
Use this chart for the
temperature range
-40°F to 50°F.
Use this chart for the
temperature range
50°F to 150°F.
Use this chart for the
temperature range
150°F to 250°F.
