98
71.06952.02 - EN

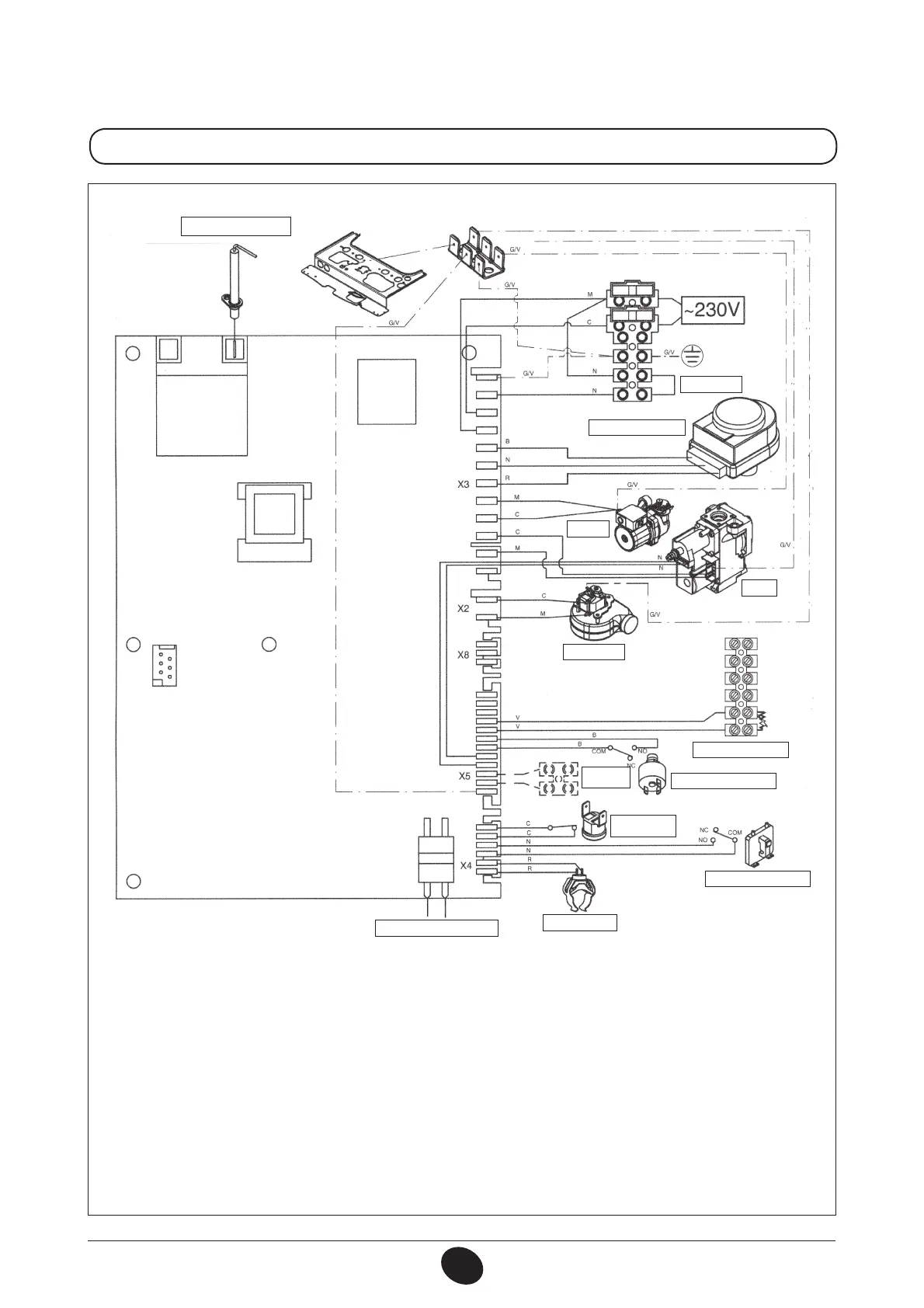

INSTALLATION INSTRUCTIONS
24 FF
Cable colours
C = Light blue
M = Brown
N = Black
R = Red
G/V = Yellow/Green
B = White
V = Green
DETECTION/IGNITION
ELECTRODE
THERMOSTAT
TERMINAL BLOCK M2
PUMP
EXTERNAL
SENSOR
HYDRAULIC PRESSURE
SWITCH
SAFETY
THERMOSTAT
AIR PRESSURE SWITCH
CH NTC SENSOR.
PROGRAMMING
FAN
CG_2271 / 1006_1603
THREE-WAY VALVE
GAS
VALVE
