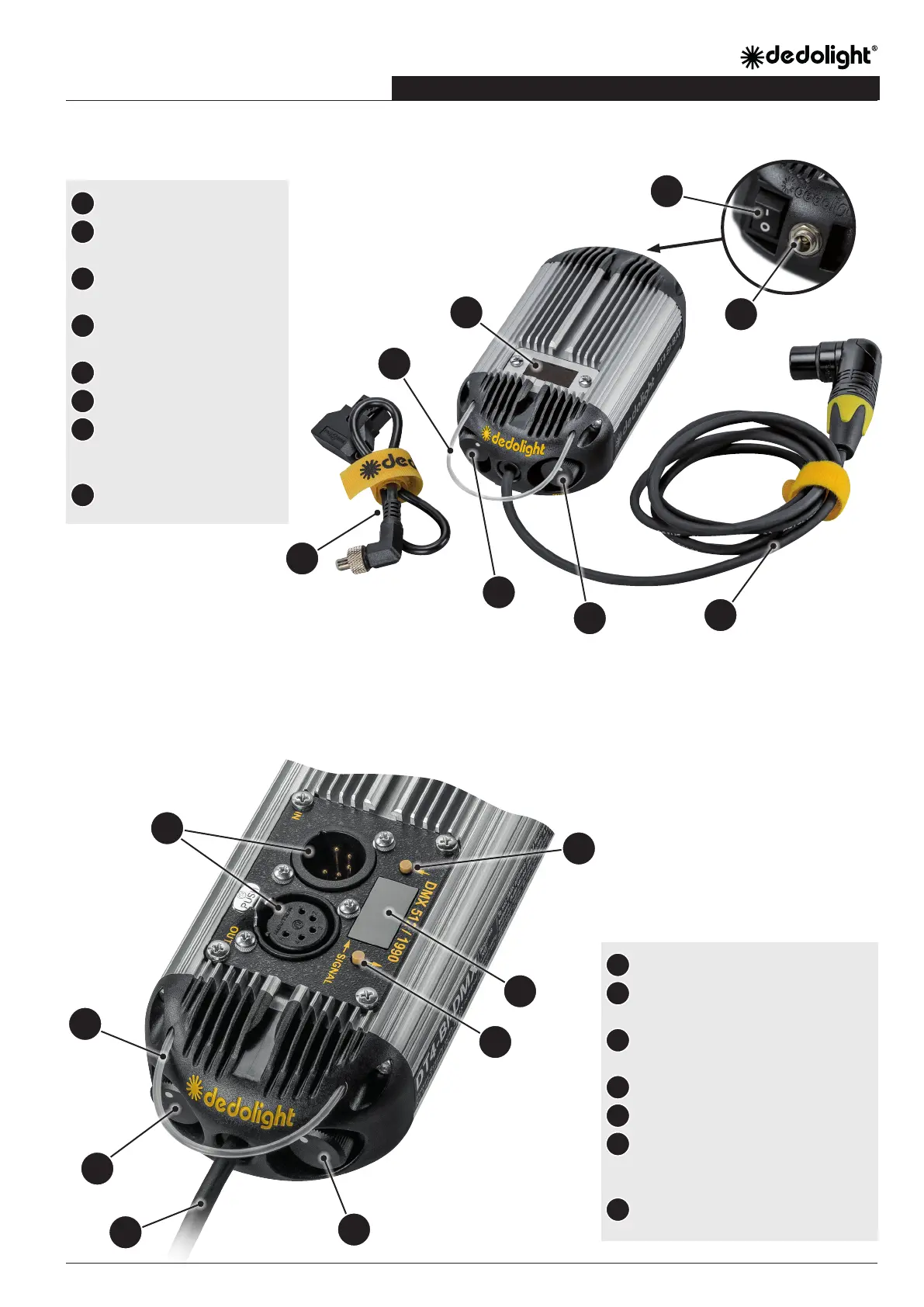

Brightness controls [DIM]
K
Cable to light head DLED4-D/T,
DLED4-BI
L
Loop for hanging power supply on
lighting stand
M
Color controls [Bicolor version only]
T
DMX connector In and Out
U
Display for DMX-address, Kelvin
and dimming e.g.: C32=3200K
D99=99% dimming
V
Buttons to change the values
T
Electronic Transformer DT-BAT (Battery Version)
Electronic Transformer with DMX control
I
Brightness controls [DIM]
K
Cable to light head DLED4-
D/T, DLED4-BI
L
Loop for hanging power
supply on lighting stand
M
Color controls [Bicolor
version only]
P
Power Switch
Q
Battery cable
R
Display for Dimming and
Color Temperature [Bicolor
version only]
S
Battery connector
R
Q
K
K
L
I
I
M
M
L
V
U
V
P
S
