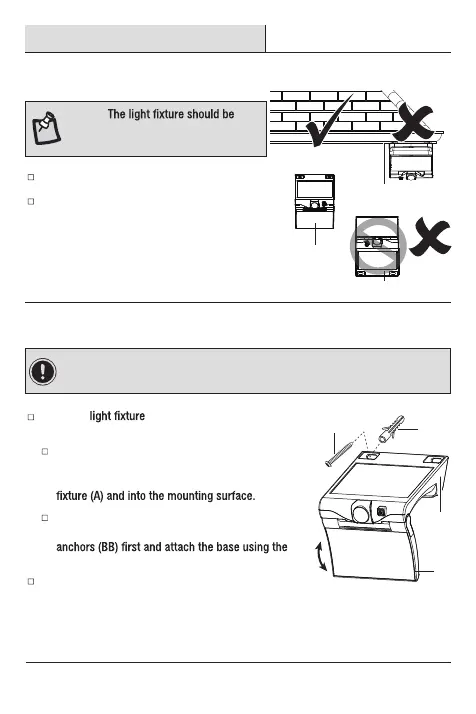

Mounting the light fixture
Place the (A) against the mounting surface
and mark the mounting holes.
Rotate the lamp head (E) to the desired angle.
If mounting to a wooden surface, drill two 3/32 in.
holes into the mounting surface. Install the two
mounting screws (AA) through the base of the light
If mounting to wallboard or brick, drill two 7/32 in.
holes into the mounting surface. Insert the wall
two mounting screws (AA).
A
E
BB
AA
IMPORTANT: The solar panel must receive as much direct sunlight over the course of
the day as possible. Keep in mind that shadows may block the sunlight from reaching the
solar panel during the day.
Installation
1
Determining the mounting
location
Wall Mount
NOTE:
mounted approximately 8 ft. (2.4 m)
above the ground.
Mounting location must be on the wall.
Position the lamp head (E) in the general
direction of the desired light coverage.
Eave Mount
E
To Next Page
