Definitive Technology DYMENSION DM10 - Wiring Center and Surround Speakers

19
The DM70 and DM80 speakers come with more than one set of binding posts. As
seen in the diagrams, the bottom pair of binding posts connect the main speaker
array. The top pair of binding posts are used to connect a DM90 height module to
your receiver. For more information about the other binding posts and wiring options
for DM80, see page 27.

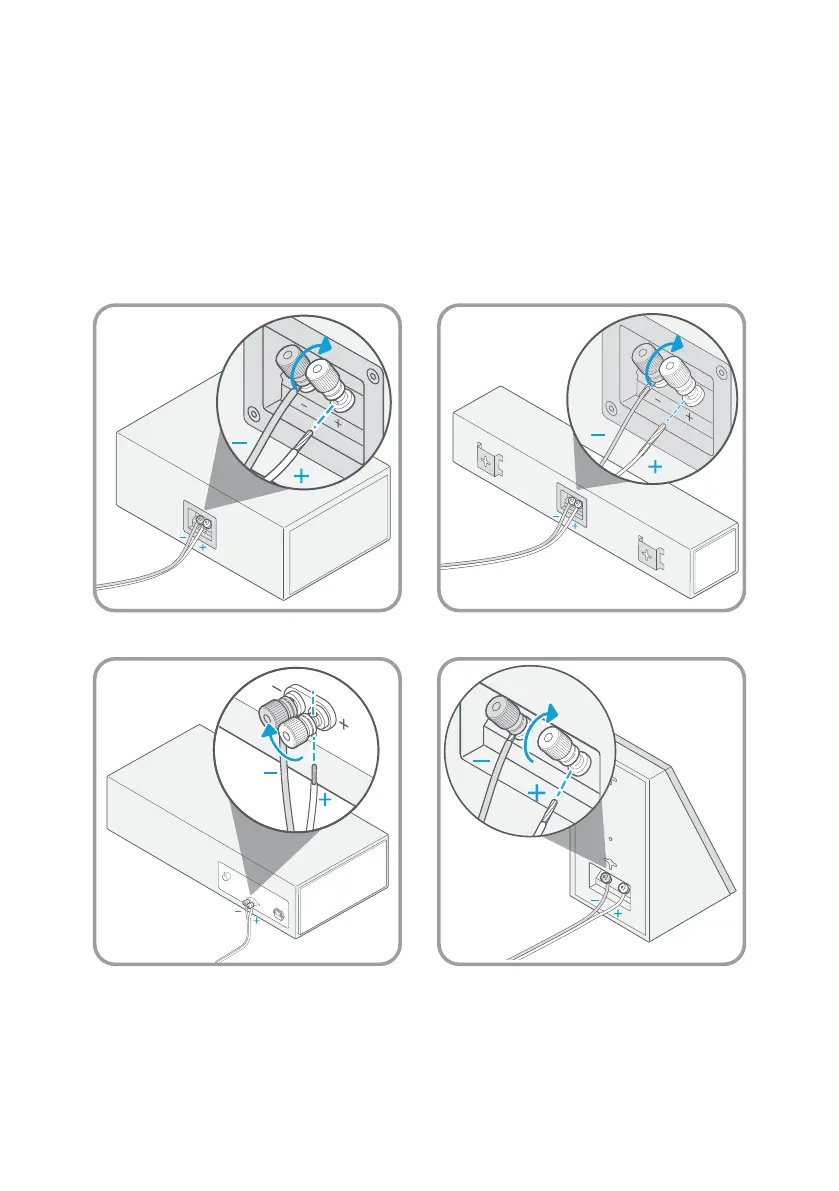

Wiring the center and surround speakers
DM10 DM20
DM30 DM95
