DM80 Wiring Configurations
You can take advantage of seven different wiring conigurations for your DM80 tower
speakers. This includes full bi-polar or forward-focused conigurations for standard
wiring, bi-wiring, and bi-amping. Any wiring coniguration can be used, depending on
your speaker setup, room environment, and personal listening preferences. Refer to
the illustrations and descriptions for speciic wiring help.

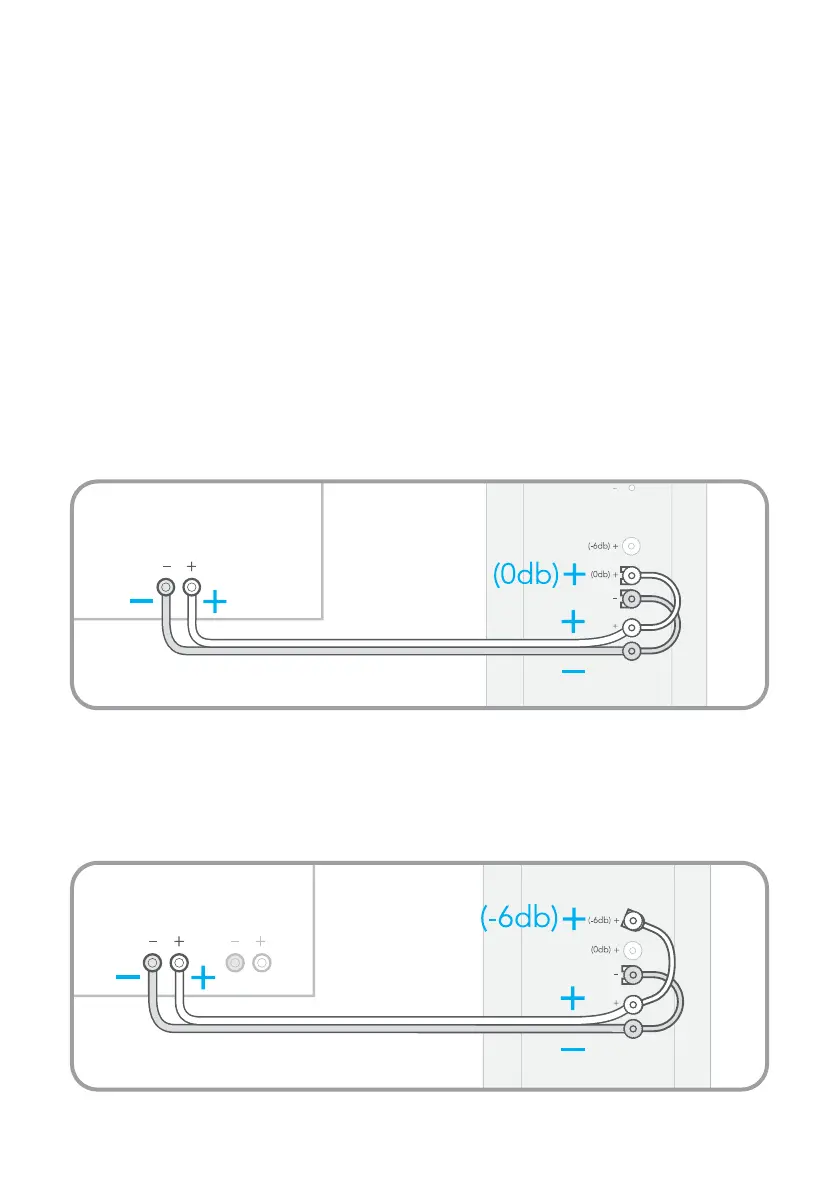

Standard wiring options
Standard wiring | Bi-polar
Connect speaker wires from an output on your ampliier or AVR to the Speaker Input
binding posts on the speaker. The red and black jumpers are connected to the full
bi-polar binding posts at the factory. Leave them in place as shown.
Standard wiring | Forward focused
Connect speaker wires from an output on your ampliier or AVR to the Speaker Input
binding posts on the speaker. Move the red jumper cable from the 0dB Rear Input
binding post to the -6dB Rear Input binding post.
Speaker Out
Speaker Out
