Definitive Technology DYMENSION DM10 User Manual

28

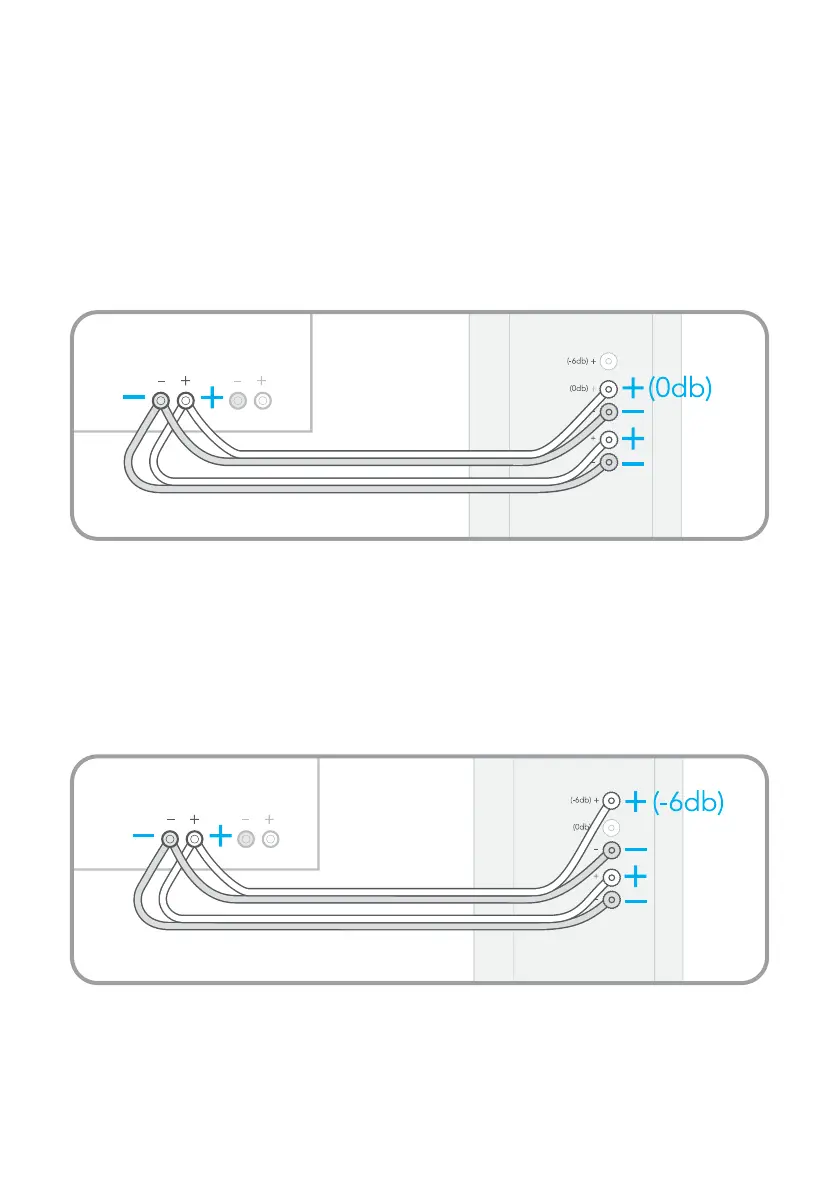

Bi-wiring options
Bi-wiring | Bi-polar
Remove both jumper cables. Connect speaker wires from an output on your ampliier
or AVR to the Speaker Input binding posts on the speaker. Connect negative speaker
wires from the negative ampliier binding post to the negative Rear and Speaker
Input binding posts. Similarly, Connect the positive speaker wire to the positive (red)
rear (0db) and speaker input binding posts. Be sure to connect positive red binding
posts to positive binding posts and negative to negative.
Bi-wiring | Forward focused
Remove both jumper cables. Connect speaker wires from an output on your ampliier
or AVR to the Speaker Input binding posts on the speaker. Connect negative speaker
wires from the negative ampliier binding post to the negative Rear and Speaker
Input binding posts. Similarly, Connect the positive speaker wire to the positive (red)
rear (6db) and speaker input binding posts. Be sure to connect positive red binding
posts to positive binding posts and negative to negative.
Speaker Out
Speaker Out
