Speaker Wiring
All of the Dymension series speakers use the same binding posts that can be un-
screwed and then tightened to connect bare speaker wire. You can also attach a
banana plug or spade connector to connect wire to the binding posts. See the next
sections for wiring illustrations.
To connect bare speaker wire to the binding posts on your Dymension speaker:
1. Strip about 3/8 in (10 mm) of insulation from two speaker wires.
2. Unscrew the binding posts.
3. Insert the wires through the binding posts.
4. Tighten the binding posts until secure.

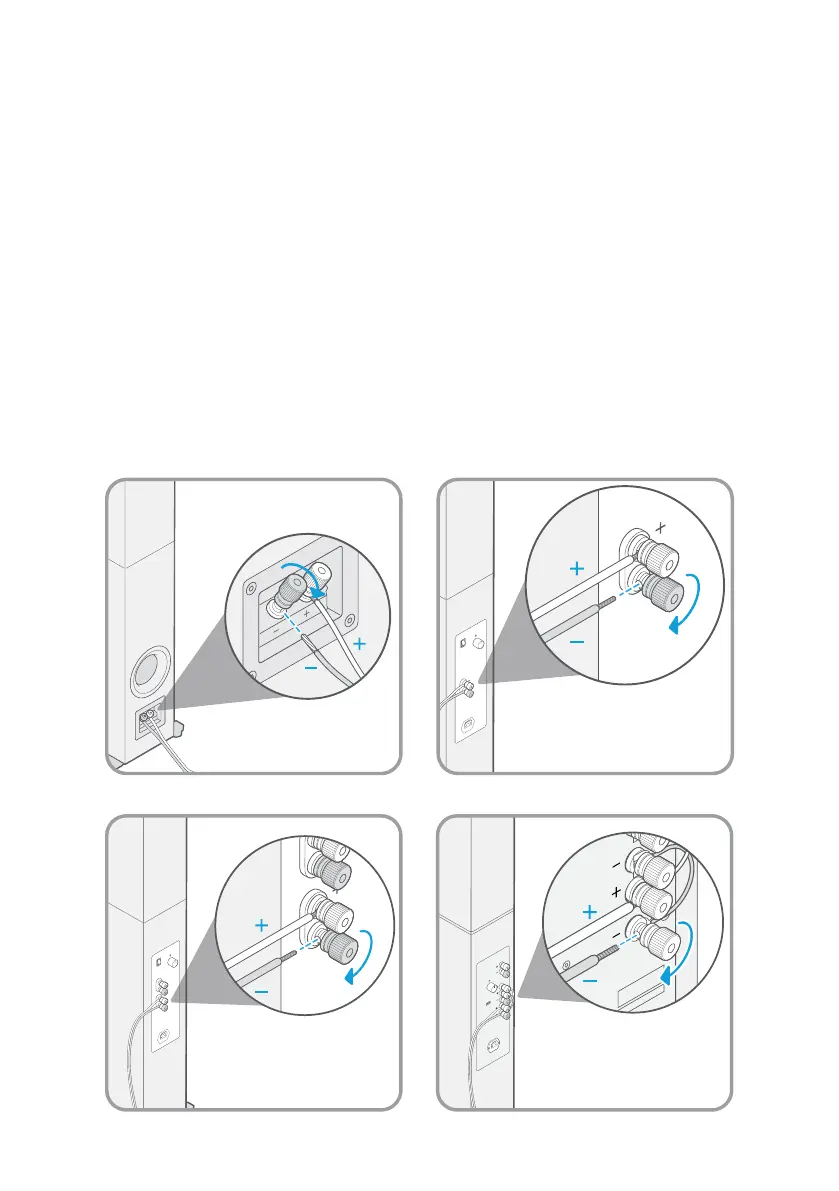

Wiring the tower speakers
DM80DM70
DM40 DM60
