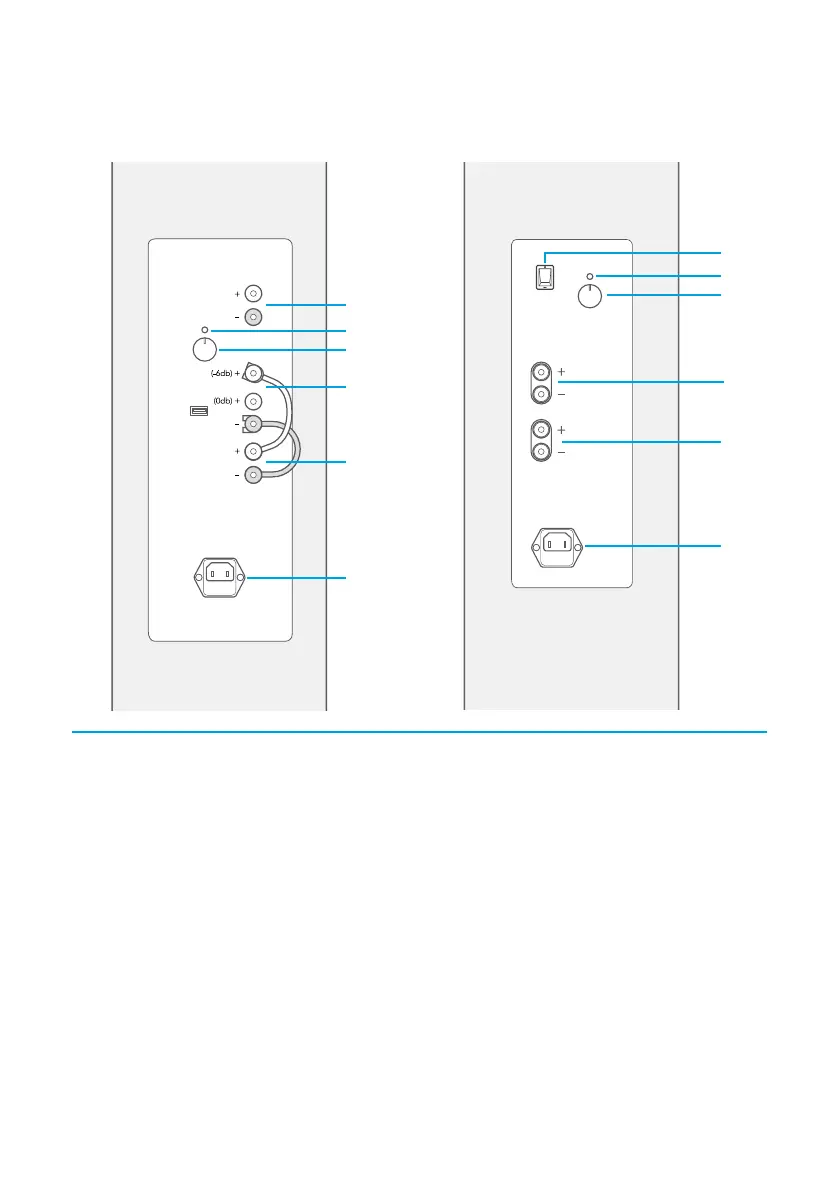

Tower speaker back panels
1
2
3
5
6
1
2
3
5
6
7
1 -
2 -
3 -
4 -
5 -
6 -
7 -
Height-channel binding posts: Connect to an ampliier or receiver when the
optional DM90 speaker is installed.
Status light: The light turns from red to blue when the speaker receives a signal
from your ampliier or receiver. For more information, see page 26.
Intelligent Bass Control knob: Increases or decreases the bass level. We recom-
mend starting at the 12-o’clock position when setting up the speaker.
Rear input binding posts: The DM80 speaker comes installed with additional
binding posts and a jumper cable to independently control the rear speaker array
between 0 dB (full bi-polar) and -6 dB (forward-focused).
Speaker input binding posts: Connect the main speakers to your ampliier or
receiver.
Power connector: Required to power the integrated subwoofer.
Rear tweeter switch: Switches the rear tweeter between 0 dB (full bi-polar) and
-6 dB (forward-focused).
DM80 DM70
4
