Defy 600STE - Oven Installation; Control Panel

INSTALLATION
• Insert the oven into the cupboard.
• Open the door to expose the fixing holes in the side trims.
• Secure the oven by 4 countersunk screws (fasteners are not supplied).
590
Aperture

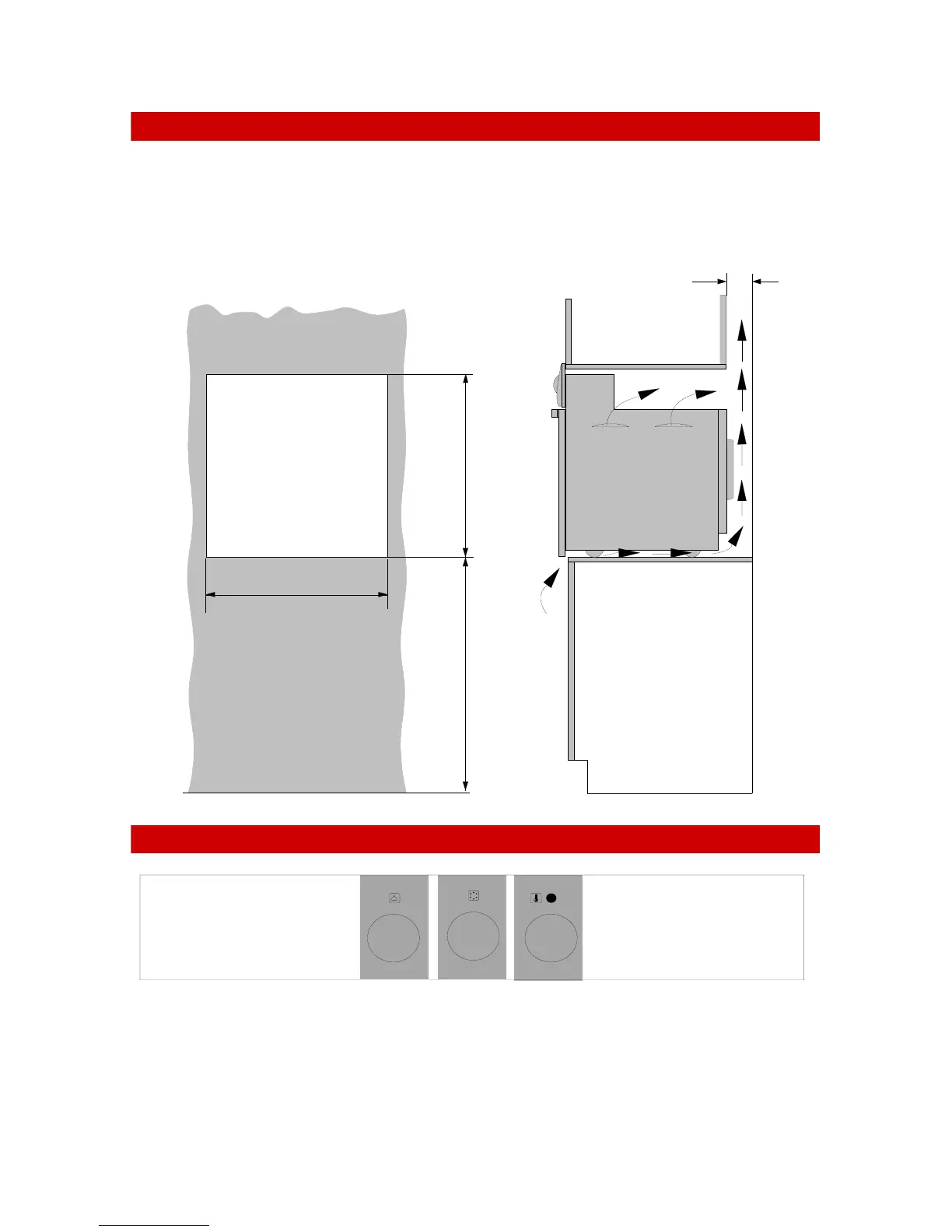

Typical section showing
ventilation requirements
Aperture
590 H x 565 W x 570 D
565
Aperture
900
Above floor
level
Floor
60
+
_
3
0
+
_
3
0
+
_
3
0
+
_
3
0
THE CONTROL PANEL
Ringer
timer
Oven
Thermostat
Multi function
selector
