Installation for Solid plate hobs
Installation is the buyers responsibility. The manufacturer accepts no liability for this
service. Any action that the manufacturer has to take as a result of an erroneous
installation will not be covered by the warranty.
x The hob should be installed in a ventilated cupboard fitted with a sturdy worktop and
must be secured using the fixing brackets provided. (see sketch below)
x Hobs without control panels should be installed directly above the oven.
x Allow an unrestricted air space of at least 75mm underneath the underside of the hob
for ventilation and cooling purposes.
x To avoid liquid spills penetrating between the hob and the worktop, please attach the
rubber ‘U’ seal to the perimeter of the hob. Do not use a silicone sealer.
x Invert the hob on the worktop adjacent to the aperture before making the electrical
connection. This will ensure sufficient cable length for subsequent servicing.

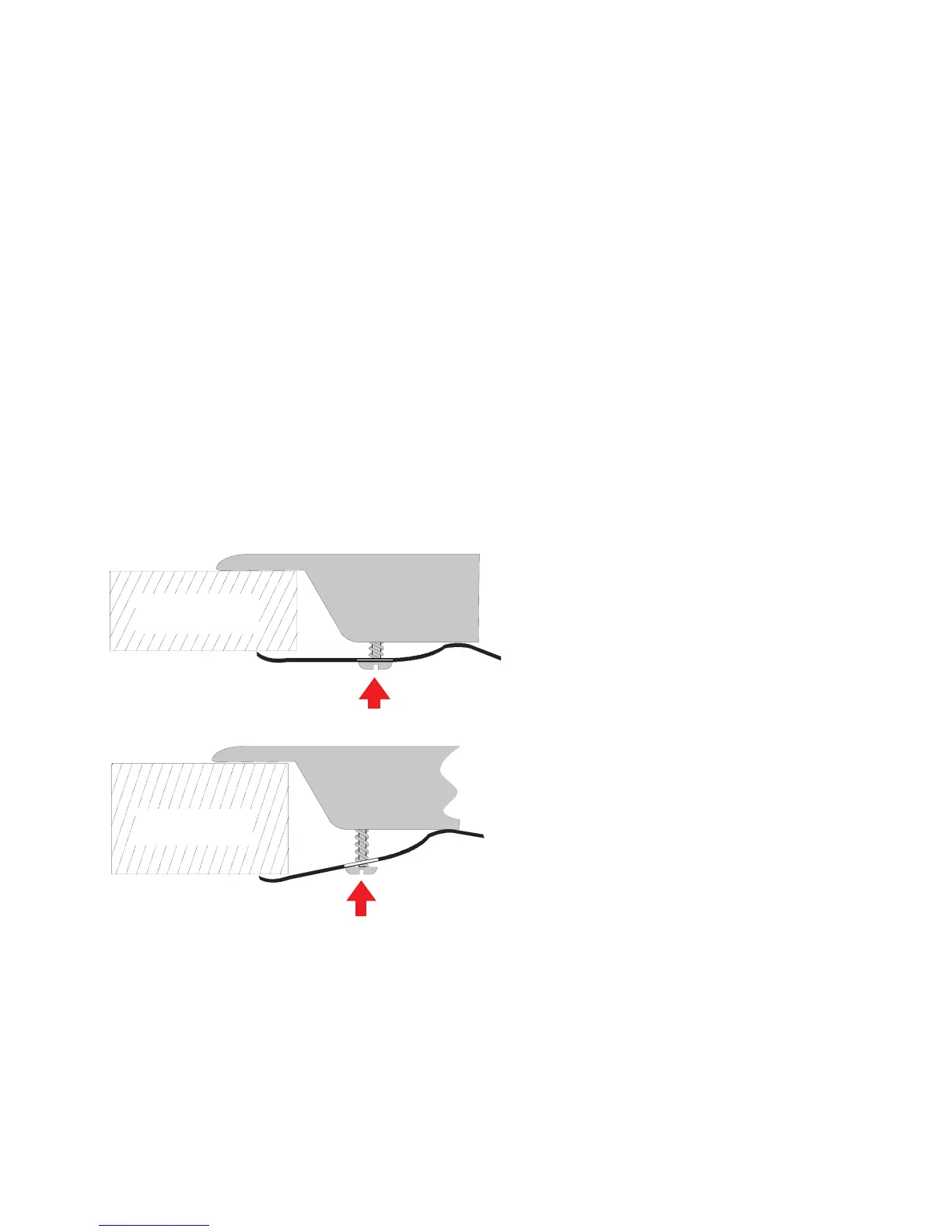

Fixing method
Suitable for Gemini Black Enamel hobs, Slimline Black Enamel hobs and Slimline
Stainless steel hobs.
STANDARD
COUNTER TOP
HOB
SECURING BRACKE
T
AND SCREW
SECURING BRACKE
T
AND SCREW
HOB
THICKER
COUNTER TOP
