Dehler 32 - General Drawings and Layouts; Cabin Version Layout

Yacht Manual DEHLER 32
17 - 67

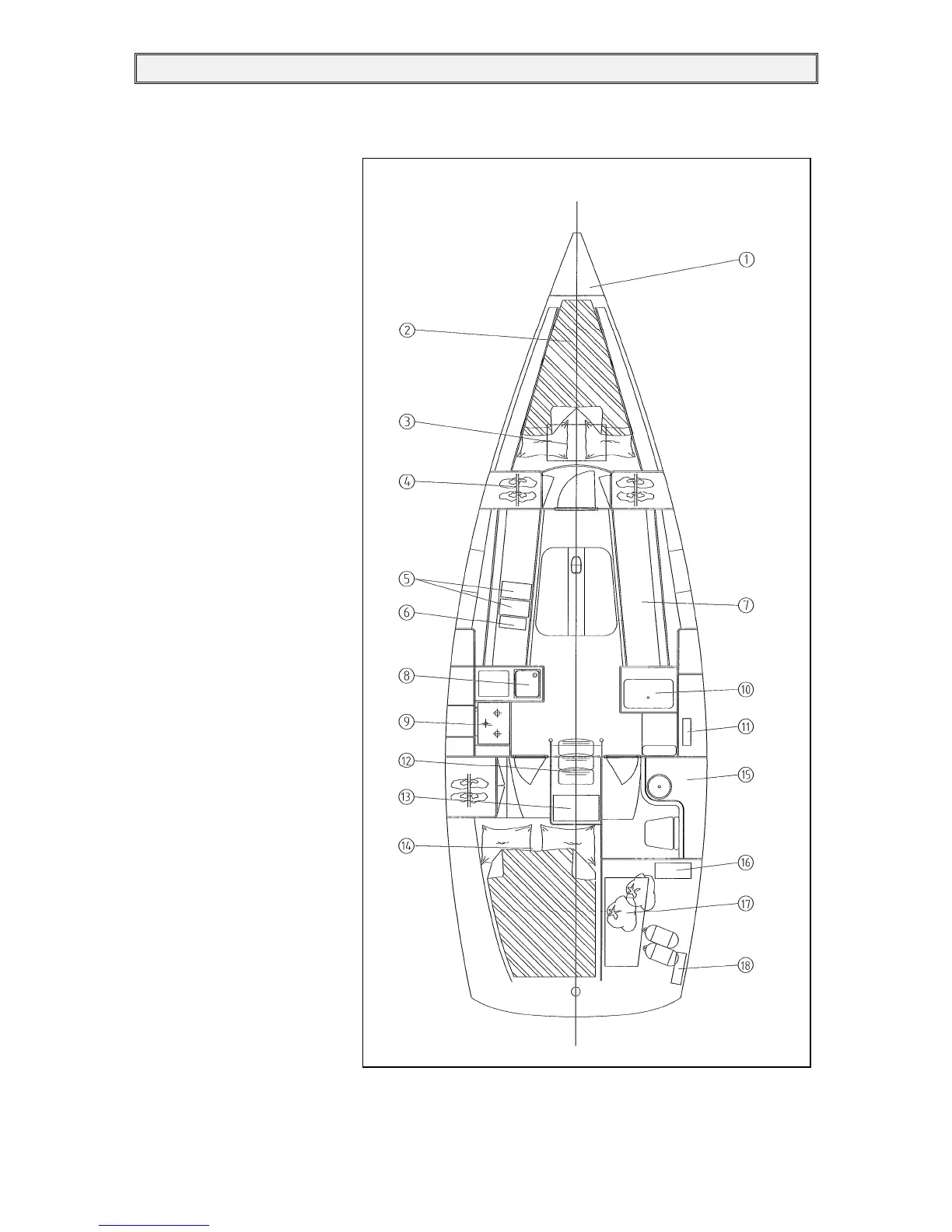

3. General Drawings
3.1 Cabin Version
1. Anchor peak
2. Bow berths
3. Water tank
4 Bow locker
5.Battery: general
Consumption
6 Battery Starter engine
7 Saloon Sofa
8 Galley
9. Gas cooker
10.- Navigation area
11 Battery changer
12 engine
13 Heat exchanger
(option)
14 aft cabin
15 head
16 wasewater tank
17 Fuel tank
18 heating (option)
Figure 4: General
