Dehler 32 - Fresh Water and Drinking Water System

Yacht Manual DEHLER 32
31 - 67
4.2 Fresh water, drinking water
The Dehler 32 has a polyurethane water tank, with a capacity of 100 l. It is installed under
beth in fore cabin. The filler nozzle is on the sportside on the coaming. An electric pressure
water pump with a secondary surge tank supplies the sink and the washbasin in the toilet area.
A heat exchanger with a 22 l capacity is installed for the production of hot water. It is
situated in the starboard rear storage space (Option)
4.2.1 Cockpit shower
The fresh water tank also supplies
the cockpit shower. The unit is
installed on the cockpit starboard.
Components
1. Ventilation tank
2. Water tank.
3. Pressure water pump
4. Filler nozzle
5. Hand washbasin outlet
6. hot water supply
7. cold water pipe
8. Outlet head
9. heat exchanger
10. Cocpit shower

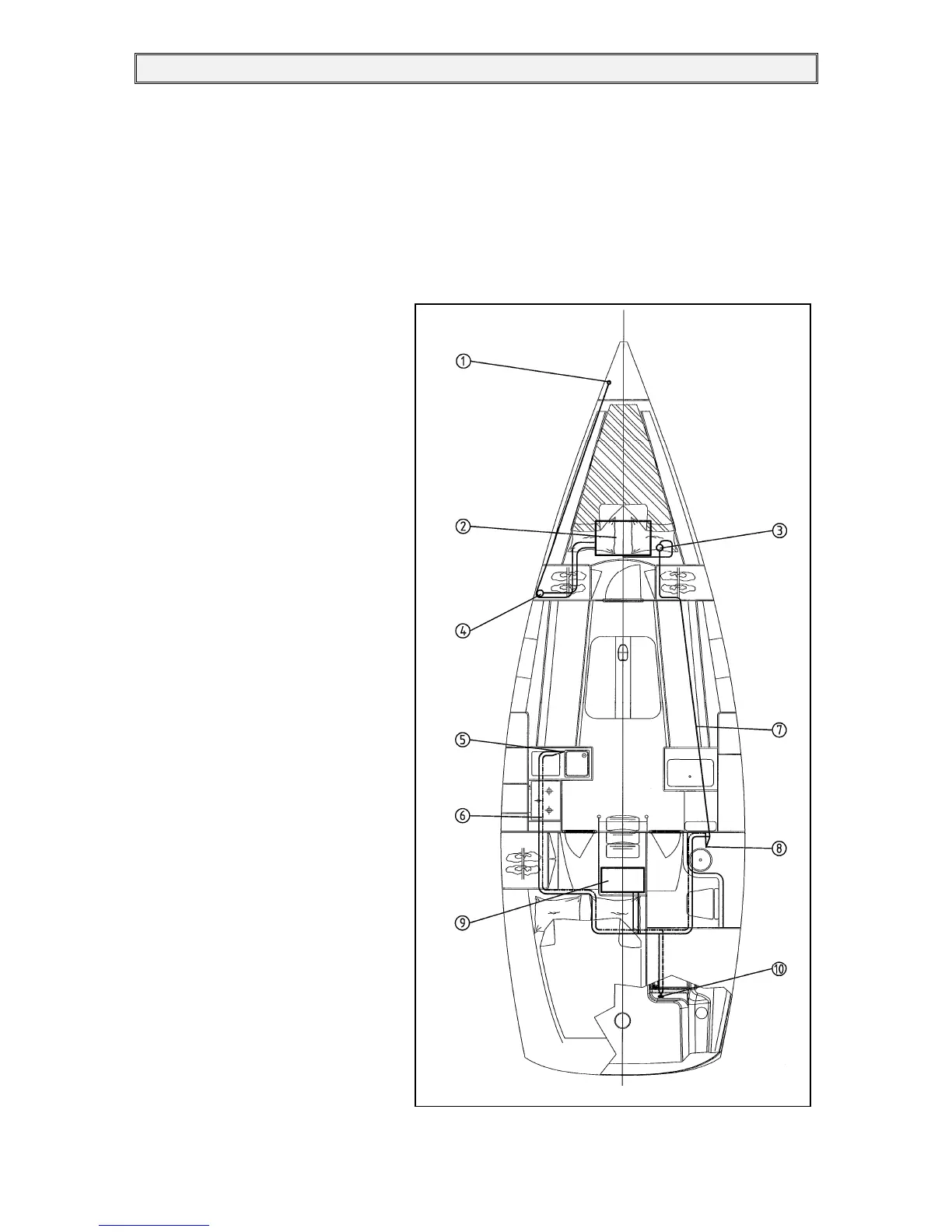

Figure 12: Drinking water
