Yacht Manual DEHLER 32
41 - 67
4.6 Bilge systems
4.6.1 Anchor locker
The anchor locker is watertight from the boat. It empties outboard directly through an
opening.
4.6.2 Drainage
Components
1. Electrical bilge pump
2. Suction nozzle mechanical pump
3. Bilge pipe - mechanical bilge
pump
4. Bilge pipe –electric bilge pump
5. Mechanical pump
6. Outlet – mechanical pump
7. Outlet - electric pump
8. non return valve
4.6.3 Hand bilge pump
The suction filter is installed in the
saloon between the galley and the
navigation table in the bilges (2). It is
connected by a flexible hose to the
hand bilge pump with a capacity of 90
l/min, mounted on the bulkhead wall
of the aft starboard locker. The outlet
is on the starboard rear surface of the
boat.

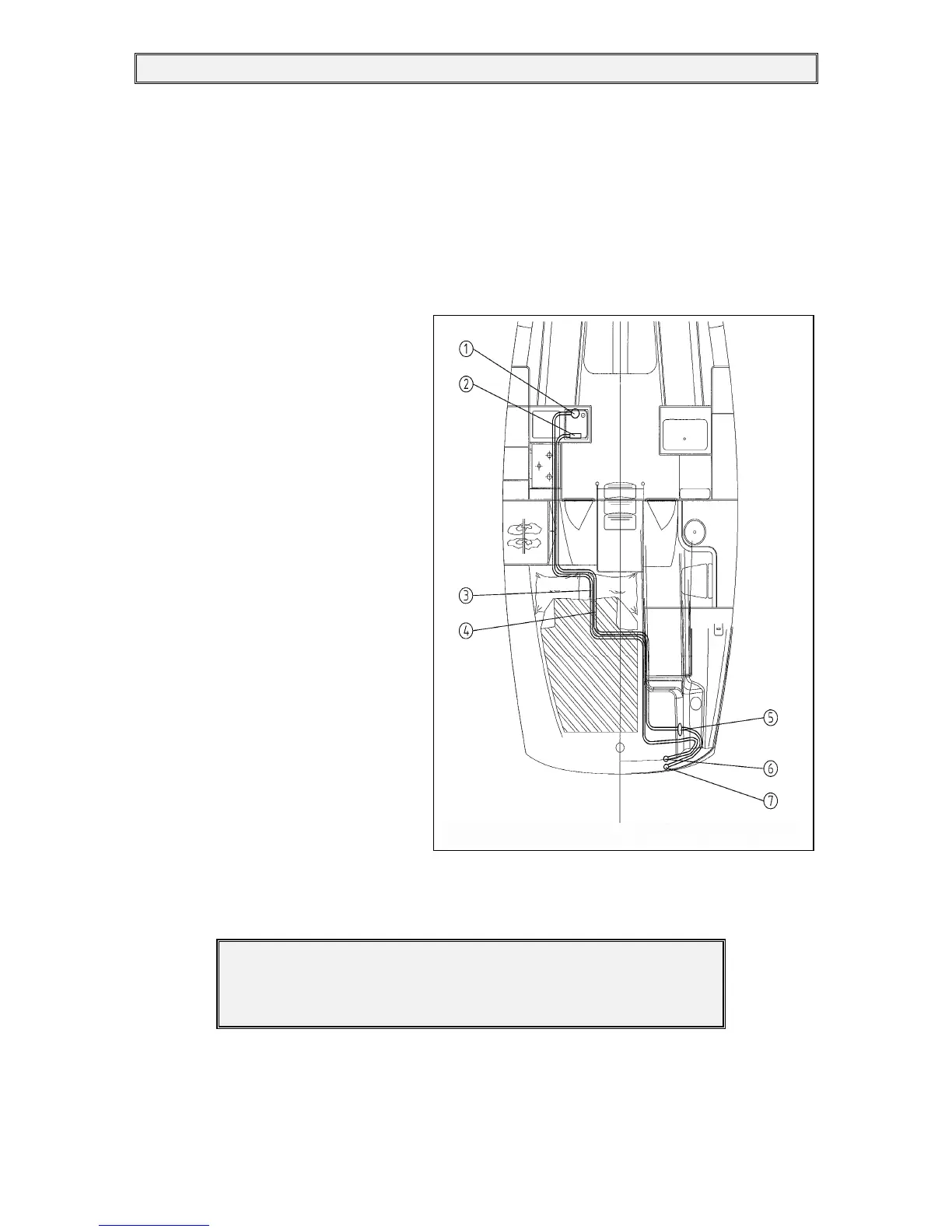

Figure 18: Bilge system
NOTE
The hand lever is easily accessible, fixed in locker seatlid
