Dehler 34 - 3 General Drawings; Cabin Version

Yacht Manual DEHLER 34
15 - 62

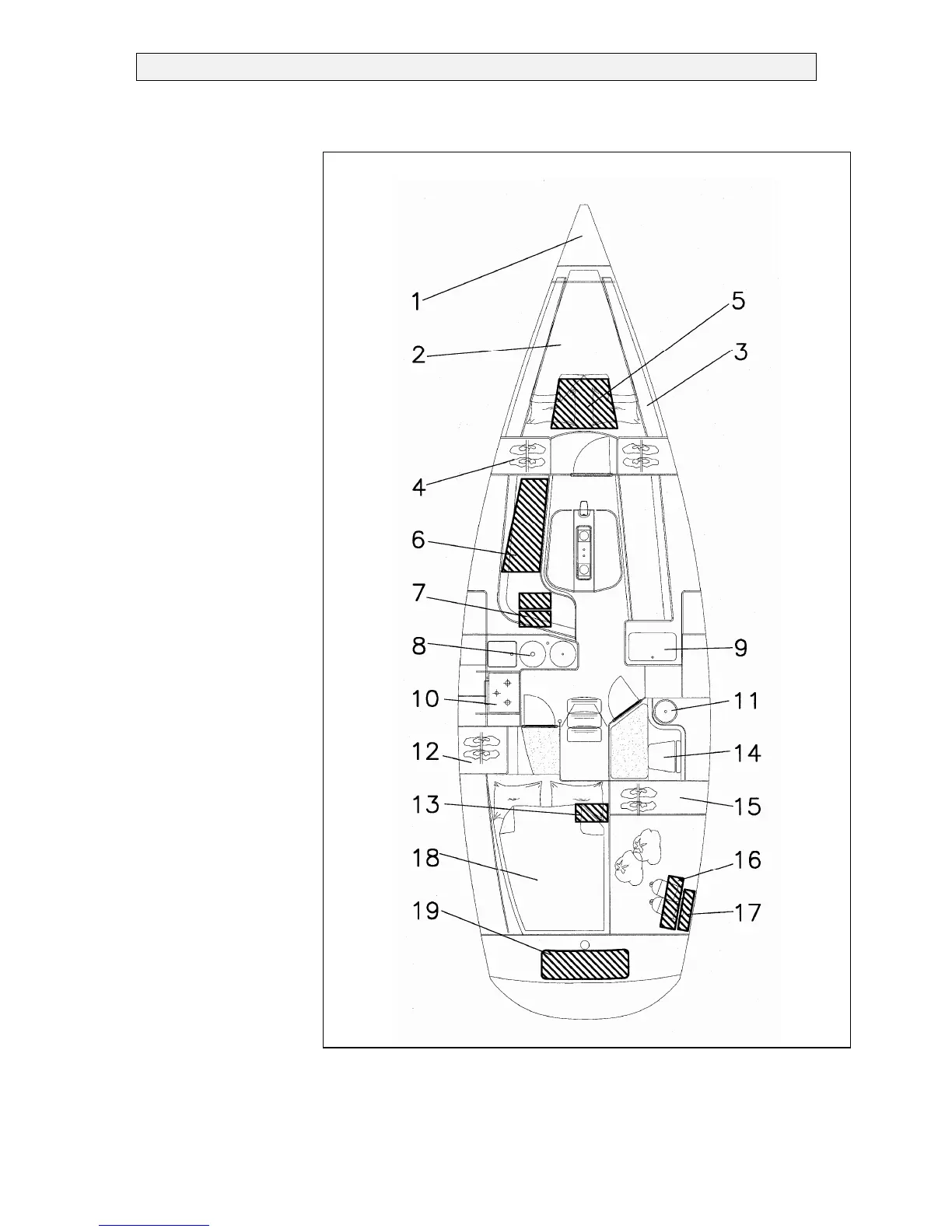

3. General Drawings
3.1 2 Cabin Version
1. Anchor peak
2. Bow berths
3. Sponson
4. Bow locker
5. Water tank
6. Fuel tank
7. Battery: general
consumption
8. Galley
9. Navigation area
10. Gas cooker
11.Hand washbasin
12.Clothes locker
13. Battery: engine
14. WC pump
15. Storage space.
16. Heat exchanger
17. Heating
18. Stern bunks
19.Stern storage space
Figure 4: General
