Yacht Manual DEHLER 34

16 - 62

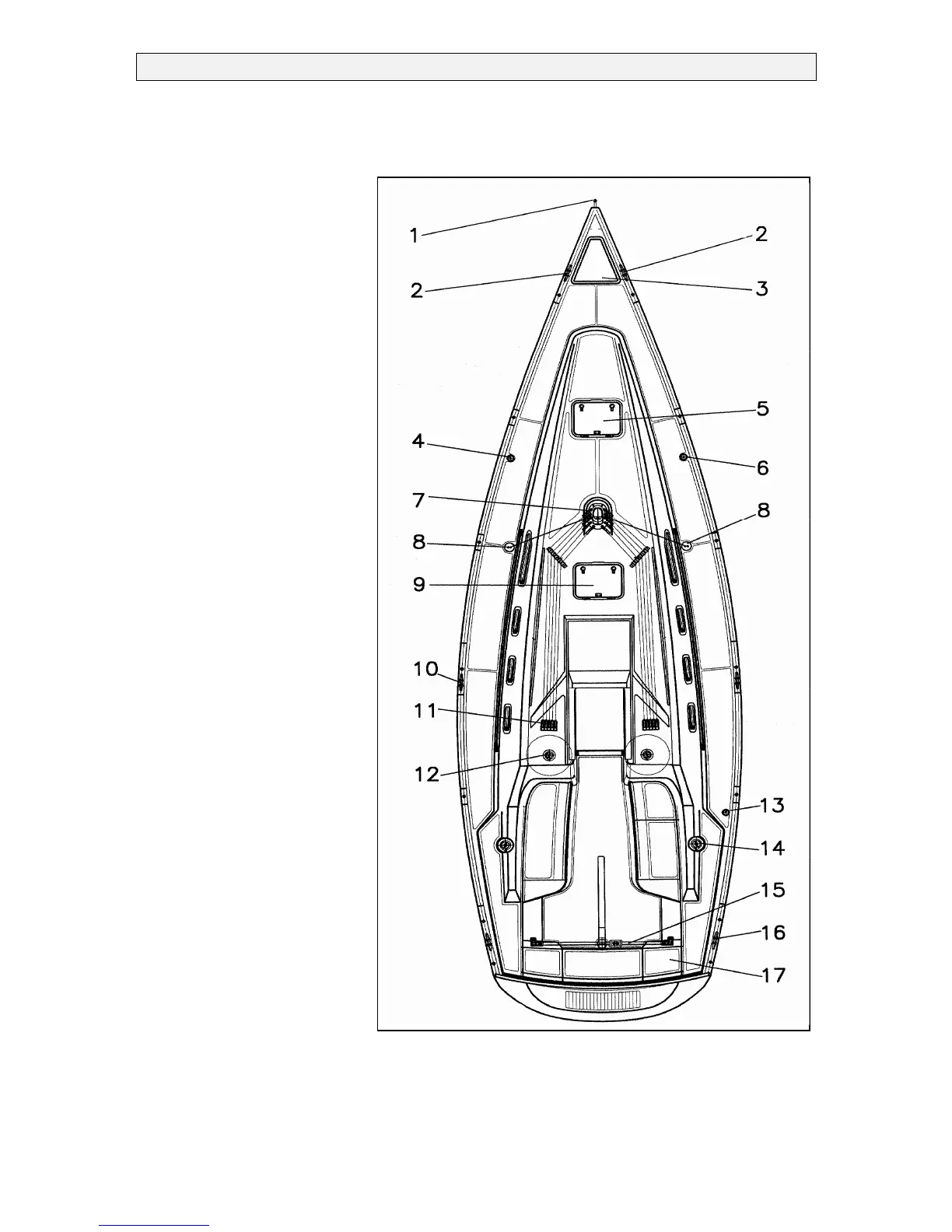

3.2 Deck plan

Components

1. Anchor roller

2. Bow cleats

3. Anchor locker cover

4. Filling cap Diesel port

5. Forward (escape) hatch

6. Filling cap Water starboard

7. Mast trunk

8. Shroud chainplate port

8. Shroud chainplate starboard

9. Saloon hatch

10. Spring cleats

11. Locking levers

12. Halyard winches

13. Suction nozzle

14. Genoa winches

15. Traveller

16. Stern cleats

17. Gas container

Figure 5: Deck plan
