4.4.2
MASTERVOLT
B
ATTERY CHARGER
Name Standard
Model IVO 12/25-2
Voltage 230/110V
Power 25 Amp.
Charging voltage 14,25-13,25V
Charging characteristic IUoUo
NOTE
Please make yourself familiar with the safety instructions attached for the
battery charger!
4.5 Onboard direct current system
The 12 V direct current system is responsible for the power supply for all general use
appliances. The 12 V – Plus load circuit can be switched off using the main switches next to
the port companion way and with the second master switch of the starter battery. The 12 V
power supply is comprised of the following main components/power supply sources.
Starter battery, consumer battery, motor generator (dynamo), and a battery charger
4.5.1 Master switches
The master switches of engine are situated at bottom of bed on the port side of the stern cabin.
The master switches of consumer batterie is mounted under the Navi-Table.

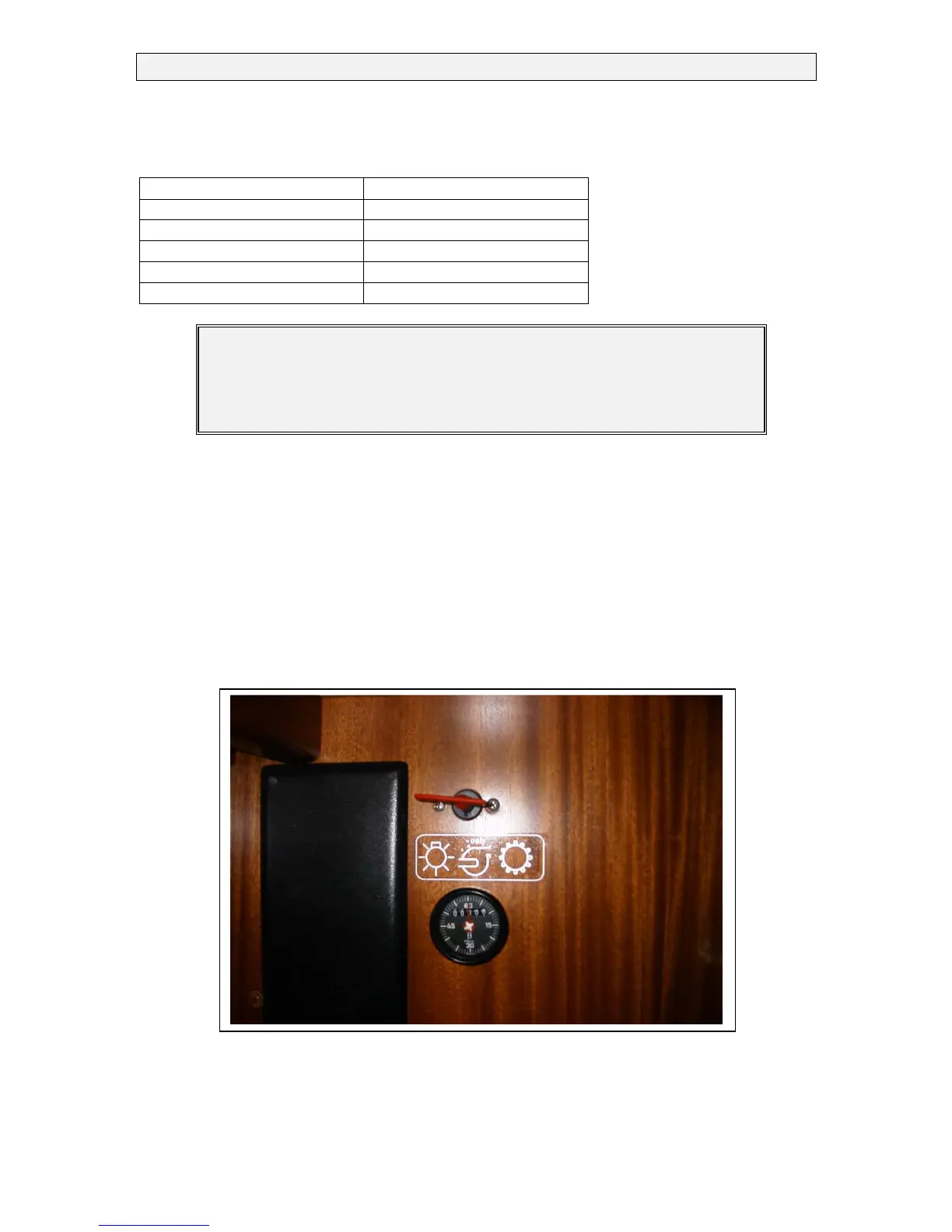

Figure 15: Master switches
