4.3 Fresh water, hot
A heat exchanger with a 20 l capacity is installed for the production of hot water. It is
situated in the starboard rear storage space.
Components
1 Ventilation tank
2 Filler cap
3 Water tank
4 Pressure water pump
5 Sink bleed point
6 Surge tank
7 Hand washbasin bleed point
8 Cold water supply
9 Hot water supply
10 Heat exchanger
11 Engine supply hot
12 Engine return
13 Cockpit shower, hot

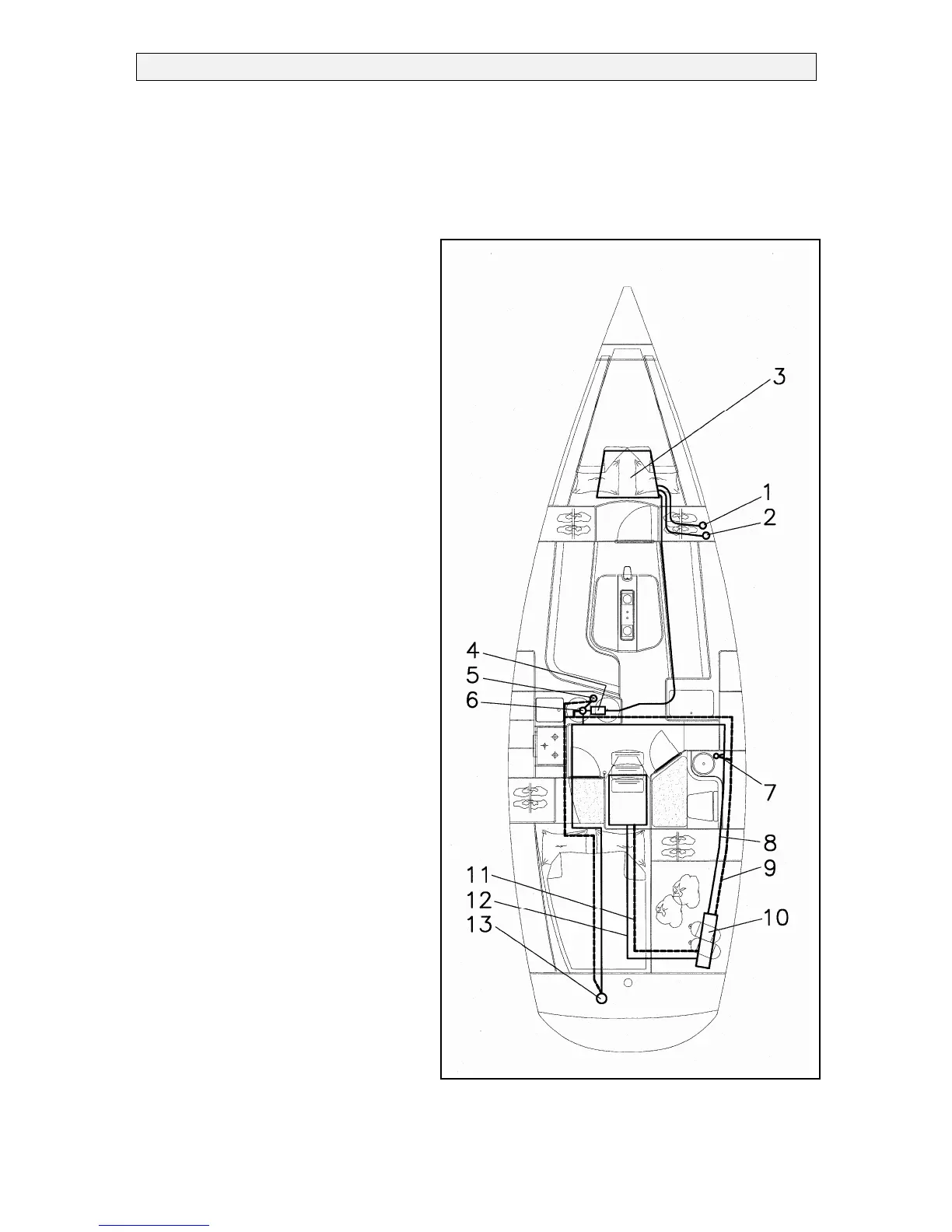

Figure 13: Hot water
