Yacht Manual DEHLER 34
22 - 62

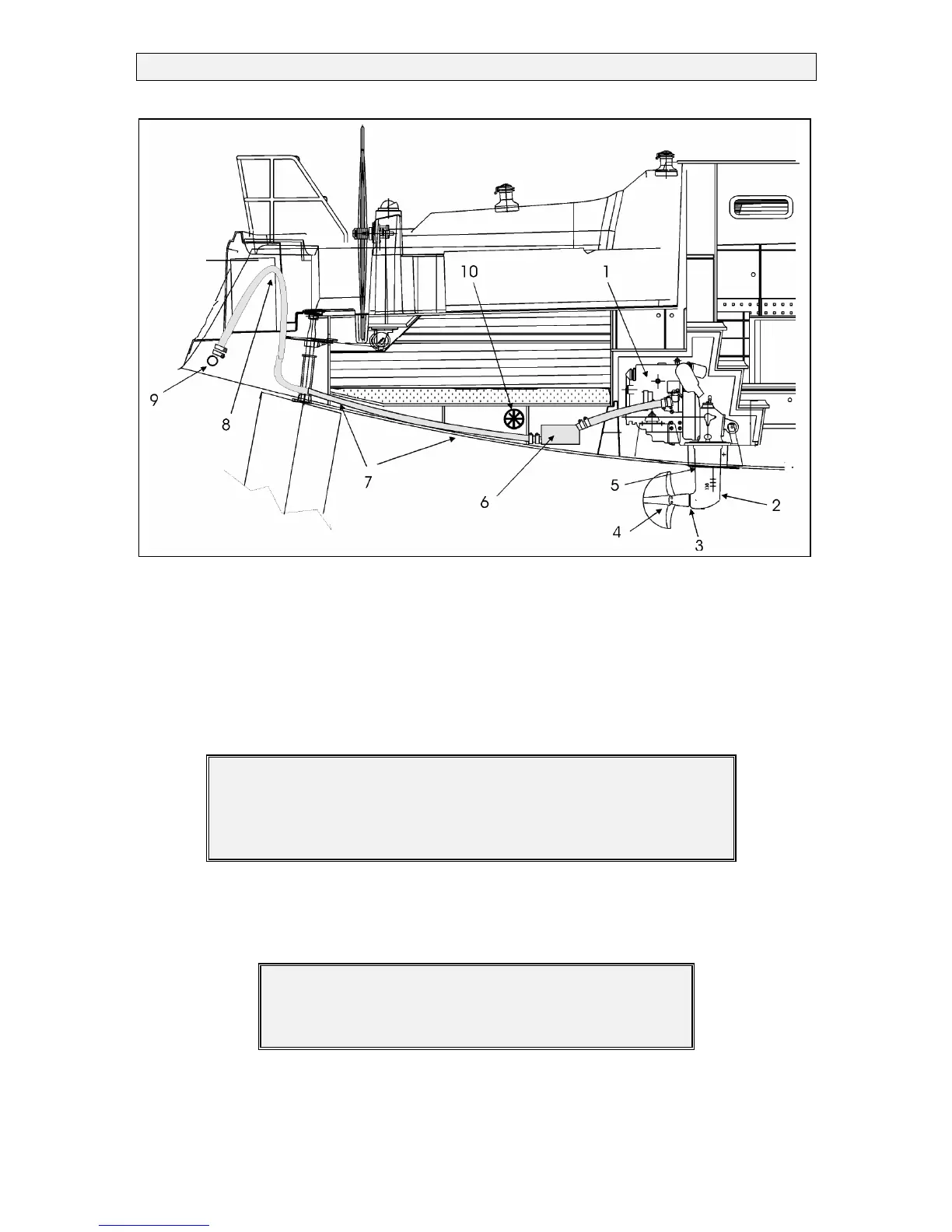

Figure 9: Engine installation
Components
1 = Inboard diesel 2 = Saildrive 3 = Zinc ring
4 = Folding propeller 5 = Gasket 6 = Water collector
7 = Exhaust pipe 8 = Swan’s neck 9 = Outlet
10 = Ventilator fan
IMPORTANT
Every time after starting the engine, you should check that cooling
water is being expelled with the exhaust fumes at the outlet!
4.1.2 Propeller
The yacht can be fitted with either a fixed screw or a folding screw.
IMPORTANT
In freshwater areas the zinc ring (3) must be replaced by
a magnesium ring.
