4. Additional configuration
4.1 Change advanced network configuration

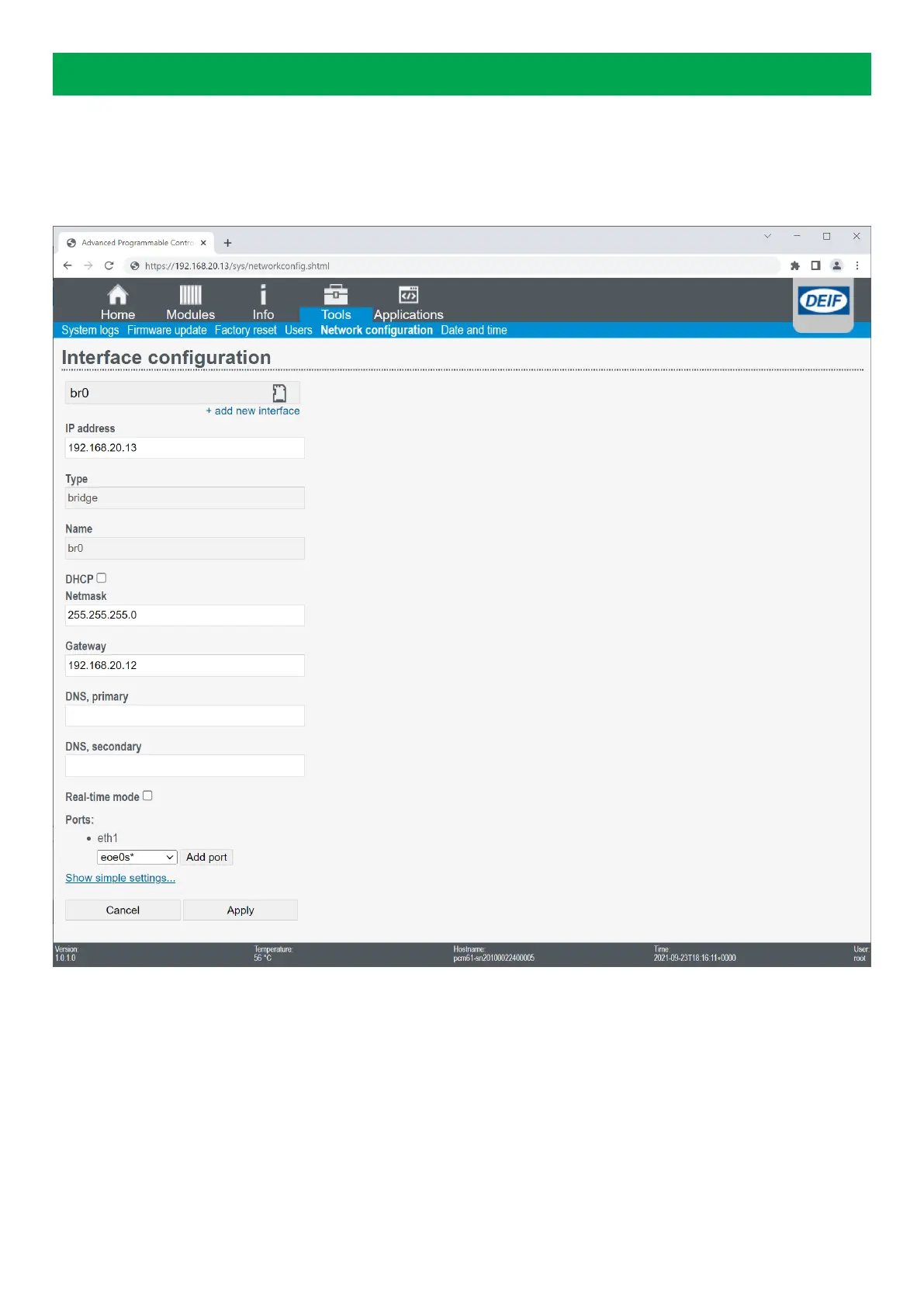

Under Tools > Network configuration the network interface configurations for each port (eg. eth0 or eth1) or bridged
connections between ports (eg. br0) can be configured.
4.1.1 Ports
When configuring a bridge up, you can specify the Port that should be included in the bridge.
4.1.2 Real-time mode
When checking the box Real-time mode the priority of the Ethernet is raised to priority 50, but still below the real-time priorities in
CODESYS. This enables real-time communication to for example: Power converters.
User's manual 4189341335A EN Page 15 of 33
