Dekker VMAX SERIES - Page 34

DEKKER Vacuum Technologies, Inc. – Vmax/July 2016
34

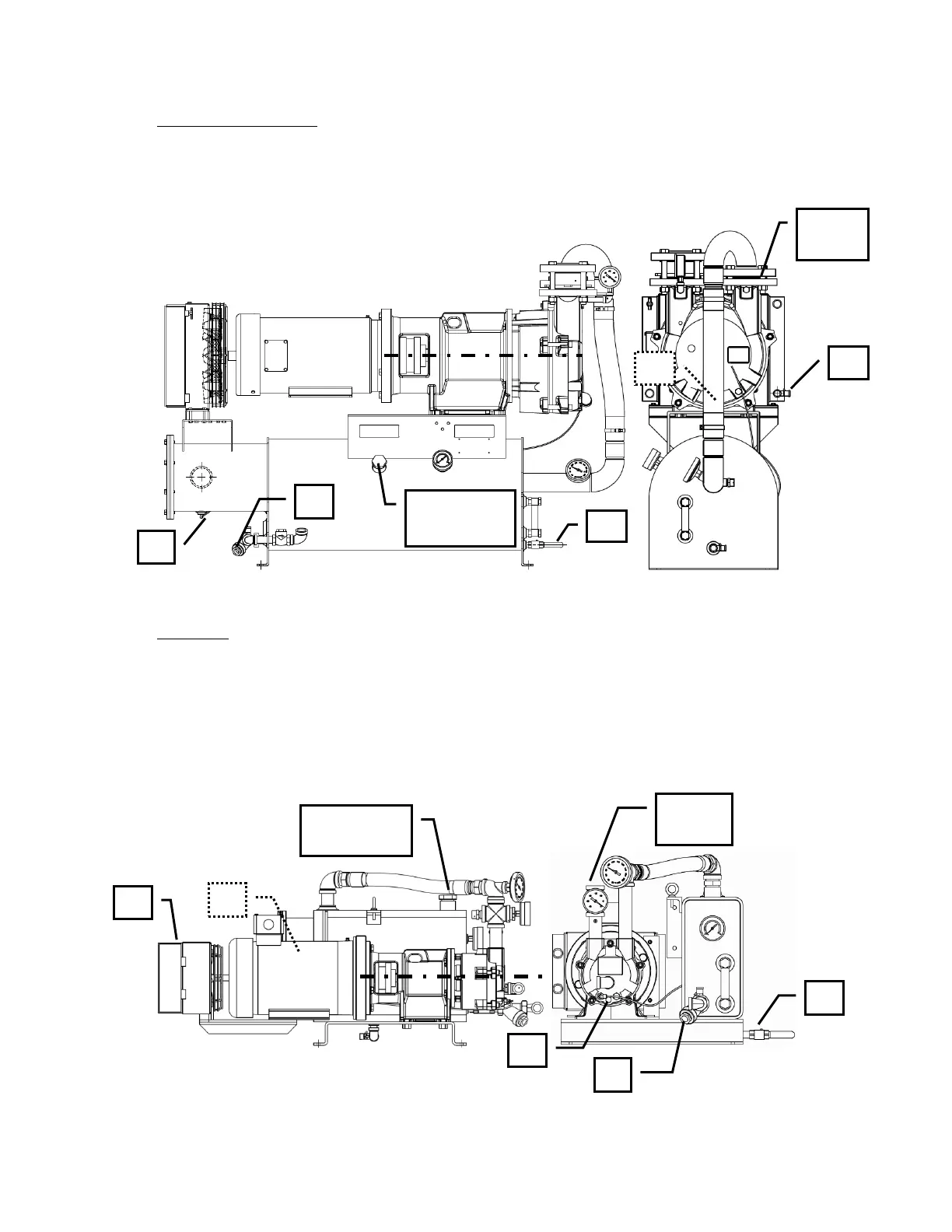

VMX0063 – VMX0153
A. Pump Drain (Typically Plugged) Not Shown; Face of Pump 6 o’clock position
B. Y-Strainer (Hex Plug/Mesh Screen)
C. Main Tank Drain (Ball Valve)
D. Separator Scavenge Line Drain (90 Degree Brass Push-Lock Fitting)
E. Heat Exchanger Drain (Hex Plug/Ball Valve)
VMX0036
A. Pump Drain (Typically Plugged)
B. Y-Strainer (Hex Plug/Mesh Screen)
C. Main Tank Drain (Ball Valve)
D. Separator Scavenge Line Drain (90 Degree Brass Push-Lock Fitting) Not Shown; Under Separator Element
Housing
E. Heat Exchanger. Disconnect Hoses/Piping to Drain
A
B
C
E
Prime
Pump
Oil Fill
(Reservoir)
D
A
B
C
D
Prime
Pump
Oil Fill
(Reservoir)
E
