No. Name Range Default Description/optionsNo. Name Range Default Description/options
0 = no acidic cleaning0 = no acidic cleaning
1 = one alkaline, one acidic cleaning1 = one alkaline, one acidic cleaning
2 = two alkaline, one acidic cleaning2 = two alkaline, one acidic cleaning
3 = etc.3 = etc.
Maintenance an calibration
The following points are important to sustain
correct dosing of etergents. Note that
these two tasks should be performed by an
authorised DeLaval service engineer.
• The tubes in the peristaltic pumps should
be replaced at least two times a year.
• The dosing volume (P6-P8) of the
detergent pumps should be checked
every third month. The dosing capacity
(P32-P34) may need to be adjusted.
Starting cleaning or rinsing
from the touch screen
Note: Any ongoing backflush process must
first be finished before cleaning or rinsing
can be started.
1. Ensure that the milking station is in
manual mode.
2. Remove any cow that might be in the
milking station.
After treatment window
Note: Both gates should be closed to
prevent a cow from entering before the
system cleaning has been started. Closing
and opening gates is done in the Stall
control window.
3. Press the tab After Treatment on the
touch screen to display the After treatment
window.
4. In the After treatment window, press the
Cleaning and Rinsing button. This will open
the Cleaning and rinsing window.
4. Tap "Local rinse" and then "Start".
5. Wait until the end of the rinse cycle (when
all icons in the washing tab turn green). The
process takes approximately 10 minutes.
6. Note! For VMS BL8.2.9 and higher go
directly to
Ä
step 8 on page 37. Herd
Navigator 100 unit stops/starts automati-
cally when the ORI sampler/DeLaval fat
sampler is started/stopped.
In the "Maintenance" tab tap "Herd
Navigator".
7. Stop the Herd Navigator 100 with the
"Stop" button.
7.1 If the OCC is installed, deactivate the
OCC.
8. Disconnect the milk tube between the SSO
pump and the Herd Navigator 100 module.
9. Connect the fat sampler to the SSO pump.
287495

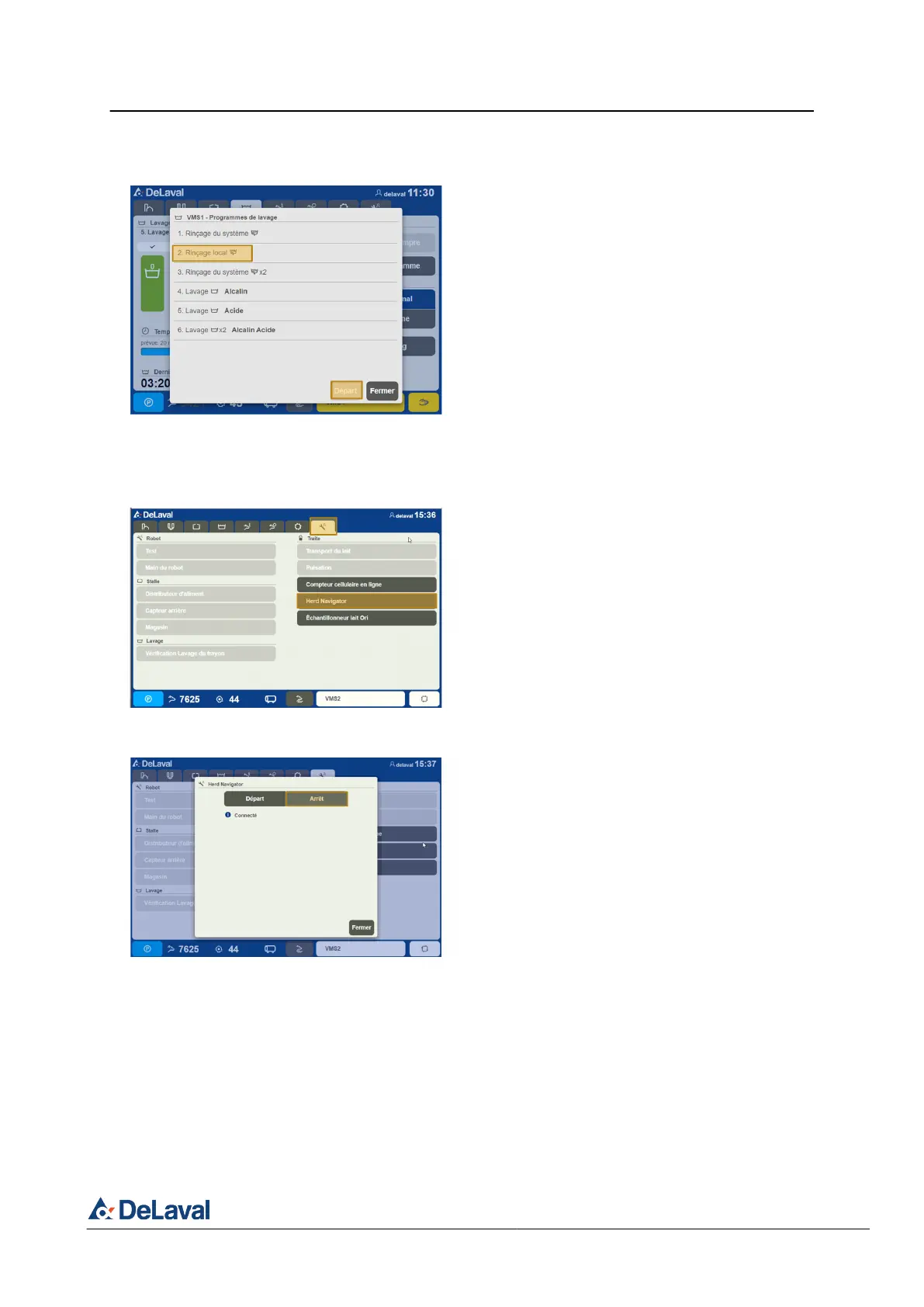

Fig. 26: Local rinse.
Deactivating the Herd Navigator 100 sam-
pling
287496
Fig. 27: Maintenance tab.
287497
Fig. 28: Stop button.
DeLaval Herd Navigator™ precision analytics 100
Operator's maintenance
© DeLaval 2021.
2021-05-10, Version 3 37 (44) 2800008901
