7. Diagnostics
If the service row is pressed for 2 seconds in Automatic mode or
Manual mode the DA-40T will enter its built-in diagnostic mode.
The diagnostic mode can be switched off by tapping the service
row again. These diagnostic screens are intended to be used on
request of a service engineer from the machine manufacturer.
7.1 Axis state

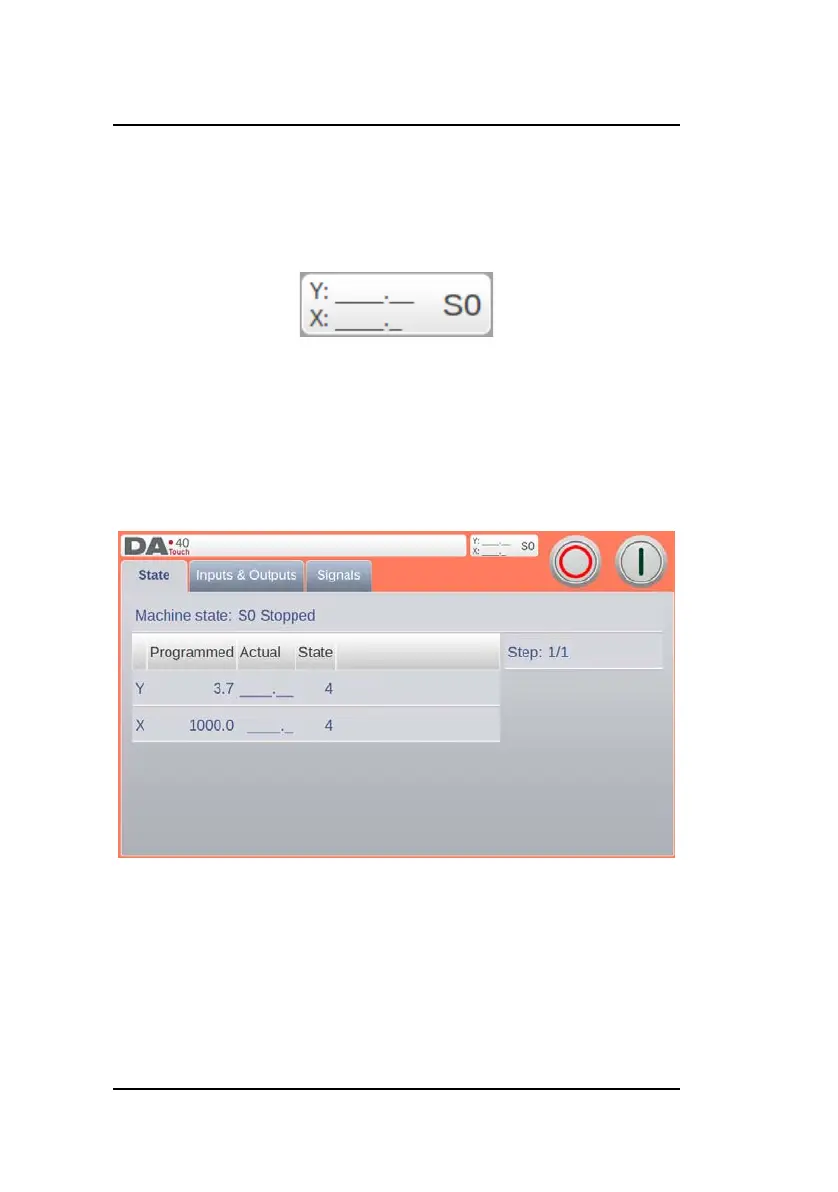

The programmed position, actual position and control state for
the X-axis and Y-axis are displayed.
Mentioned below are the possible machine states:
• S0 -> Stopped
• S1 -> Positioning
• S2 -> Wait for Retract
