Delfield CoolScapes GBR1P-S User Manual

28 pages

To Next Page

To Next Page

Page #1 background image

Loading...

Page #1 background image

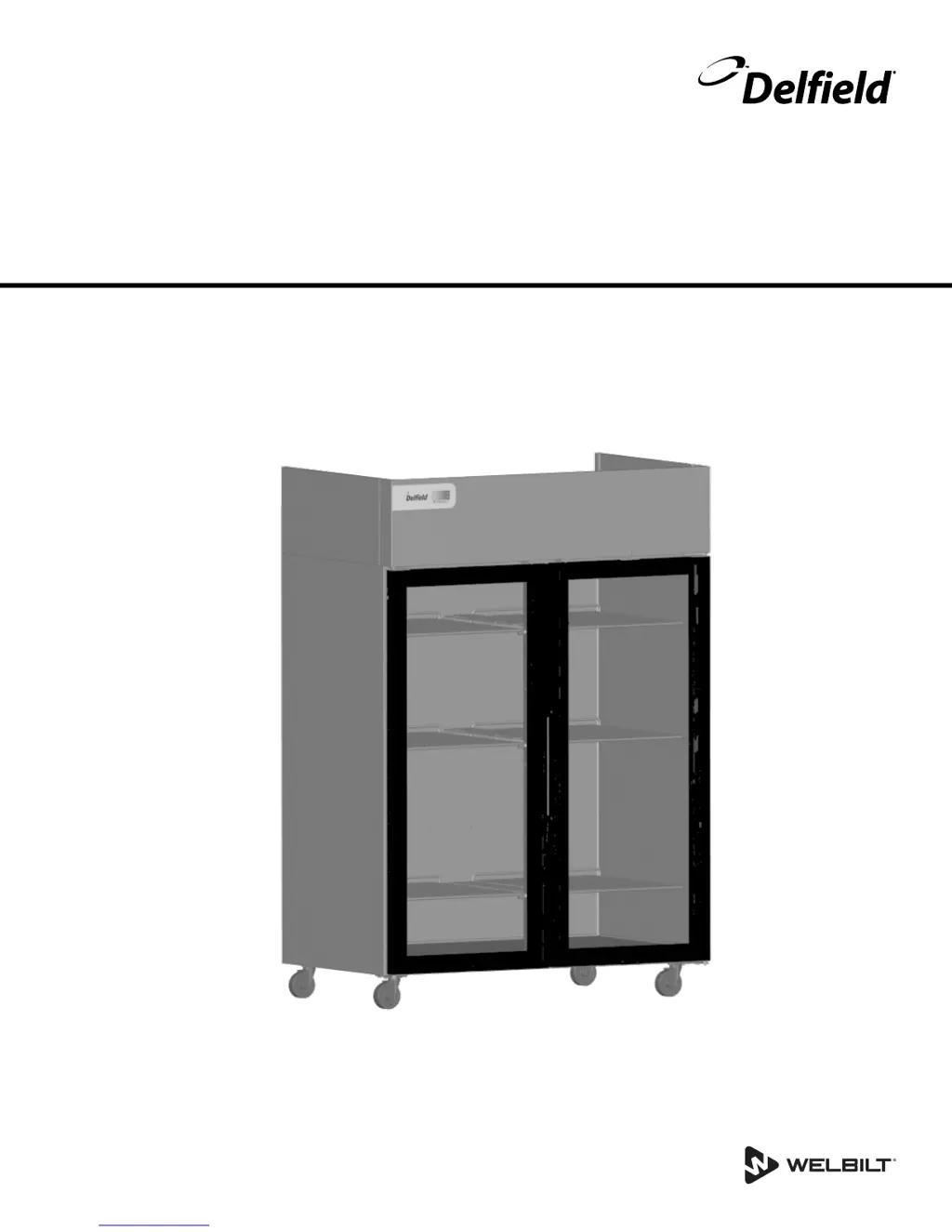

Series GC, GB & GBS Reach-Ins

CoolScapes™

Original Instructions

Installation, Operation and Maintenance Manual

This manual is updated as new information and models are released. Visit our website for the latest manual.

Part Number: 9294839 03/17

Table of Contents

Questions and Answers:

T
tmontesAug 16, 2025
Why is my Delfield Refrigerator temperature too high?
- D
  Diamond GreeneAug 16, 2025
  If your Delfield Refrigerator's cabinet temperature is too high, there are several potential causes. Begin by ensuring the thermostat is set to a lower temperature. Check for and correct poor air circulation by rearranging the product inside. Recalibrate the exterior thermometer if it's out of calibration. Allow adequate time for warm products to cool down. Minimize prolonged door openings, ensure the doors are properly closed, and clean the condenser coil. Finally, if the evaporator coil is iced over, turn off the unit to defrost, and verify the thermostat isn't set too cold, also check the door gasket condition.
S
Sierra SchneiderAug 19, 2025
What does E13 mean on a Delfield CoolScapes GBR1P-S display?
- K
  Kristi LeonSep 12, 2025
  If the temperature display on your Delfield Refrigerator reads E13, it indicates a communication error between the controller and the display. First, check for loose plugs on the cable connecting the control to the display. If the plugs are secure, the display or control may need to be replaced.
C
Calvin BriggsAug 22, 2025
What does E6 error mean on Delfield CoolScapes GBR1P-S?
- C
  Carol LiuAug 22, 2025
  If the temperature display on your Delfield Refrigerator reads E6, it means the control has a defective potentiometer. Replace the control to resolve this issue.
G
gerald79Aug 25, 2025
What does E2 error mean on Delfield CoolScapes GBR1P-S?
- J
  Jessica HamptonAug 26, 2025
  If the temperature display on your Delfield Refrigerator reads E2, the coil temperature sensor circuit is either open or shorted. Check the sensor's resistance for an open or short circuit. If either condition is found, replace the sensor. If the sensor is fine, the control may need to be replaced.
E
Elizabeth JonesAug 28, 2025
What does E1 mean on Delfield CoolScapes GBR1P-S display?
- D
  David MooreAug 28, 2025
  If the temperature display on your Delfield Refrigerator reads E1, it indicates that the box temperature sensor circuit is either open or shorted. To solve this, check the resistance of the sensor for an open or short circuit. If either condition is found, replace the sensor. If the sensor checks out, the control might need replacing.
A
Aaron KaneAug 31, 2025
Why is my Delfield CoolScapes GBR1P-S running constantly?
- V
  Veronica Washington MDAug 31, 2025
  If your Delfield Refrigerator's condensing unit runs for extended periods or continuously, it could be due to several reasons. First, check if you've placed an excessive amount of warm product inside; allow sufficient time for cooling. Ensure doors are closed when not in use to prevent prolonged openings. Inspect door gaskets for proper sealing, adjusting the door or replacing the gasket if needed. Clean the condenser coil, and if the evaporator coil is iced over, turn off the unit to defrost it, ensuring the thermostat isn't set too cold and that the gasket is in good condition.
J
Jessica McclureSep 3, 2025
How to fix a Delfield CoolScapes GBR1P-S Refrigerator that is not running?
- L
  lynchmichaelSep 3, 2025
  If your Delfield Refrigerator cabinet isn't running, check the following: First, replace the fuse or reset the circuit breaker if it has blown or tripped. Ensure the power cord is plugged in. Adjust the thermostat to a lower temperature if it's set too high. Turn the main power switch on if it's off. If it's a freezer model, wait for the defrost cycle to complete.
R
Rebecca TravisSep 6, 2025
What to do if Delfield Refrigerator is freezing food?
- E
  Emily GriffinSep 6, 2025
  If your Delfield Refrigerator is freezing product, the thermostat might be set too low; try setting it to a higher temperature. A dirty condenser coil can also cause this issue, so cleaning it may help. Lastly, ensure there's enough cabinet clearance for proper refrigeration system operation; adjust the cabinet's position to improve clearance if needed.
R
Rachel WhiteSep 9, 2025
Why won't the compressor start on my Delfield CoolScapes GBR1P-S?
- D
  Desiree WeeksSep 9, 2025
  If your Delfield Refrigerator's compressor will not start, the issue might be due to low voltage. Check the incoming voltage to the cabinet and correct it as necessary.
L
Leah BestSep 12, 2025
How to fix a noisy Delfield CoolScapes GBR1P-S?
- T
  Tiffany DiazSep 12, 2025
  If your Delfield Refrigerator is making unusual noises, locate and tighten any loose parts.

Delfield CoolScapes GBR1P-S Specifications

General

Brand	Delfield
Model	CoolScapes GBR1P-S
Category	Refrigerator
Language	English

Summary

Section 1 General Information

Model Identification

Details about the different model numbers covered in the manual.

Serial Number Information

Location and importance of the unit's serial number for service.

Warranty Information

How to register, verify, and download warranty information online.

Regulatory Certifications

Lists the certifications and standards the models comply with.

Section 2 Installation

Site Preparation and Location

Guidelines for selecting an appropriate installation location and required clearances.

Electrical Service Requirements

Details on voltage, wiring, circuit breakers, and power cord specifications.

Leveling and Casters

Instructions for leveling the unit and installing casters for stability.

Shelf Installation

Procedures for installing shelves within the unit's interior.

Door Installation and Adjustment

Steps for reversing doors and adjusting hinges for proper function.

Tray and Rack Slide Installation

Instructions for installing tray slides (T-1, T-2, T-3) and rack slides (T-4).

Section 3 Operation

R290 Control System Operation

How to set temperatures, manage defrost cycles, and understand control display.

Control System Features

Information on power switch, energy saver, temperature alarms, and fan operation.

Display Unit Conversion

Guide to switching the temperature display between Fahrenheit and Celsius.

Section 4 Maintenance

Cleaning and Sanitizing Procedures

General guidelines and schedules for cleaning the equipment.

Interior and Exterior Care

Specific instructions for cleaning the inside and outside surfaces of the unit.

Component Maintenance

Procedures for maintaining drains, condenser coils, casters, doors, and preventing corrosion.

Section 5 Troubleshooting

Common Operational Issues

Solutions for problems like unit not running, temperature issues, or noise.

Compressor Troubleshooting

Steps to diagnose and resolve issues with the compressor not starting.

Error Code Diagnosis

Guidance for interpreting and resolving error codes displayed on the unit.
