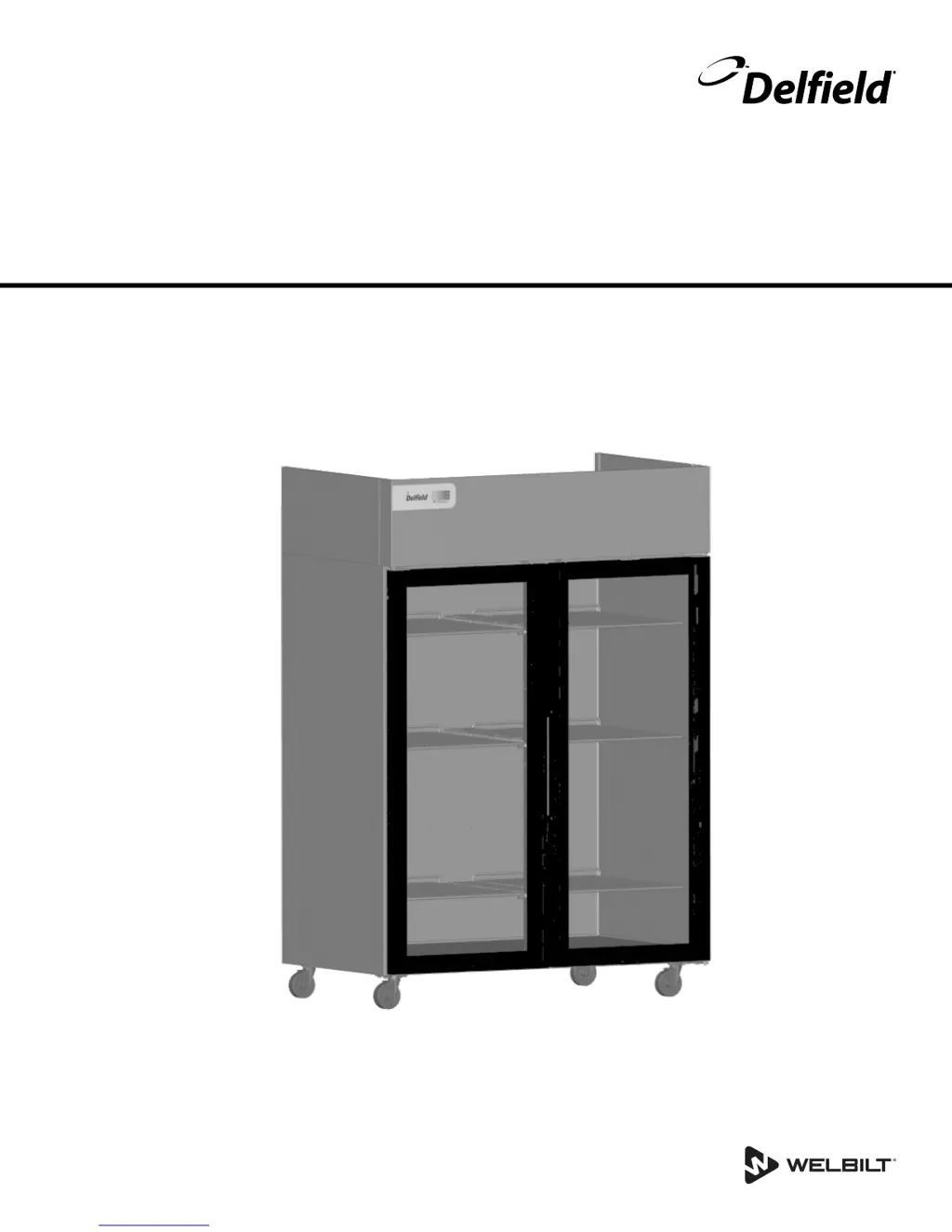

Series GC, GB & GBS Reach-Ins
CoolScapes™
Original Instructions
Installation, Operation and Maintenance Manual
This manual is updated as new information and models are released. Visit our website for the latest manual.
Part Number: 9294839 03/17

Table of Contents

Questions and Answers

  • B
    Brandon CookAug 15, 2025
    Why is my Delfield Refrigerator temperature too high?
    • L
      Lori LinAug 16, 2025
      If your Delfield Refrigerator's cabinet temperature is too high, there are several potential causes. Begin by ensuring the thermostat is set to a lower temperature. Check for and correct poor air circulation by rearranging the product inside. Recalibrate the exterior thermometer if it's out of calibration. Allow adequate time for warm products to cool down. Minimize prolonged door openings, ensure the doors are properly closed, and clean the condenser coil. Finally, if the evaporator coil is iced over, turn off the unit to defrost, and verify the thermostat isn't set too cold, also check the door gasket condition.
  • A
    andrewsandovalAug 19, 2025
    What does E13 mean on a Delfield CoolScapes GCF2P-S Refrigerator display?
    • U
      umillerAug 19, 2025
      If the temperature display on your Delfield Refrigerator reads E13, it indicates a communication error between the controller and the display. First, check for loose plugs on the cable connecting the control to the display. If the plugs are secure, the display or control may need to be replaced.
  • S
    Sabrina WadeAug 22, 2025
    What does E6 error mean on Delfield CoolScapes GCF2P-S Refrigerator?
    • J
      jordanwilliamsAug 22, 2025
      If the temperature display on your Delfield Refrigerator reads E6, it means the control has a defective potentiometer. Replace the control to resolve this issue.
  • A
    Adam DunnAug 25, 2025
    What does E2 error mean on Delfield Refrigerator?
    • E
      ewalshAug 26, 2025
      If the temperature display on your Delfield Refrigerator reads E2, the coil temperature sensor circuit is either open or shorted. Check the sensor's resistance for an open or short circuit. If either condition is found, replace the sensor. If the sensor is fine, the control may need to be replaced.
  • J
    Jose HarrisonAug 27, 2025
    What does E1 mean on Delfield Refrigerator display?
    • E
      Edwin LeeAug 28, 2025
      If the temperature display on your Delfield Refrigerator reads E1, it indicates that the box temperature sensor circuit is either open or shorted. To solve this, check the resistance of the sensor for an open or short circuit. If either condition is found, replace the sensor. If the sensor checks out, the control might need replacing.
  • C
    Calvin MitchellAug 30, 2025
    Why is my Delfield CoolScapes GCF2P-S running constantly?
    • K
      Kristen LewisAug 31, 2025
      If your Delfield Refrigerator's condensing unit runs for extended periods or continuously, it could be due to several reasons. First, check if you've placed an excessive amount of warm product inside; allow sufficient time for cooling. Ensure doors are closed when not in use to prevent prolonged openings. Inspect door gaskets for proper sealing, adjusting the door or replacing the gasket if needed. Clean the condenser coil, and if the evaporator coil is iced over, turn off the unit to defrost it, ensuring the thermostat isn't set too cold and that the gasket is in good condition.
  • W
    William RobertsonSep 2, 2025
    How to fix a Delfield CoolScapes GCF2P-S that is not running?
    • A
      Anna LyonsSep 2, 2025
      If your Delfield Refrigerator cabinet isn't running, check the following: First, replace the fuse or reset the circuit breaker if it has blown or tripped. Ensure the power cord is plugged in. Adjust the thermostat to a lower temperature if it's set too high. Turn the main power switch on if it's off. If it's a freezer model, wait for the defrost cycle to complete.
  • A
    Allison PowellSep 6, 2025
    What to do if Delfield Refrigerator is freezing food?
    • L
      Laura MooreSep 6, 2025
      If your Delfield Refrigerator is freezing product, the thermostat might be set too low; try setting it to a higher temperature. A dirty condenser coil can also cause this issue, so cleaning it may help. Lastly, ensure there's enough cabinet clearance for proper refrigeration system operation; adjust the cabinet's position to improve clearance if needed.
  • J
    Jennifer HansenSep 8, 2025
    Why won't the compressor start on my Delfield CoolScapes GCF2P-S?
    • B
      Brian CampbellSep 8, 2025
      If your Delfield Refrigerator's compressor will not start, the issue might be due to low voltage. Check the incoming voltage to the cabinet and correct it as necessary.
  • R
    Robert AlexanderSep 12, 2025
    How to fix a noisy Delfield CoolScapes GCF2P-S?
    • J
      jbrownSep 12, 2025
      If your Delfield Refrigerator is making unusual noises, locate and tighten any loose parts.

Summary

Safety Notices

Installation Guide

Site Selection & Location

Details on choosing a suitable installation location, ensuring stability and clearance.

Clearance Requirements

Specifies minimum clearances needed around the unit for ventilation and safety.

Electrical Service Requirements

Information on voltage, grounding, circuit breakers, and GFCI/GFI for safe operation.

Leveling and Stabilizing Procedures

Leg and Caster Installation

Guide for attaching legs or casters, including safety notes and proper mounting.

Shelf Installation

Door Reversal Instructions

Step-by-step guide on how to reverse the doors on full door models.

Pilaster Clip Kit Installation

Bottom Hinge Cartridge Replacement

T-1 Tray Slide System Installation

Universal Tray Slide Setup

T-3 Tray Slide System Installation

T-4 Rack Slide System Installation

Operation and Controls

R290 Refrigerator Controls & Defrost

Explains initial setup, defrost, and temperature control for R290 refrigerators.

R290 Freezer Controls & Defrost

Explains initial setup, defrost, and temperature control for R290 freezers.

Temperature Control Display Codes

R290 Temperature Control Operation

How to adjust temperature set-points and initiate defrost/stand-by modes.

Power, Energy Saver & Alarm Functions

R290 Evaporator Fan Operation

Changing Display to Celsius

Maintenance Procedures

General Cleaning & Sanitizing

General guidelines and a maintenance schedule for cleaning the unit.

Interior and Exterior Cleaning

Drain & Condenser Coil Maintenance

Troubleshooting Guide

Common Problems and Solutions

A table listing common issues, their causes, and corrective actions.
