Delfield CoolScapes GBF3P-S User Manual

28 pages

To Next Page

To Next Page

Page #1 background image

Loading...

Page #1 background image

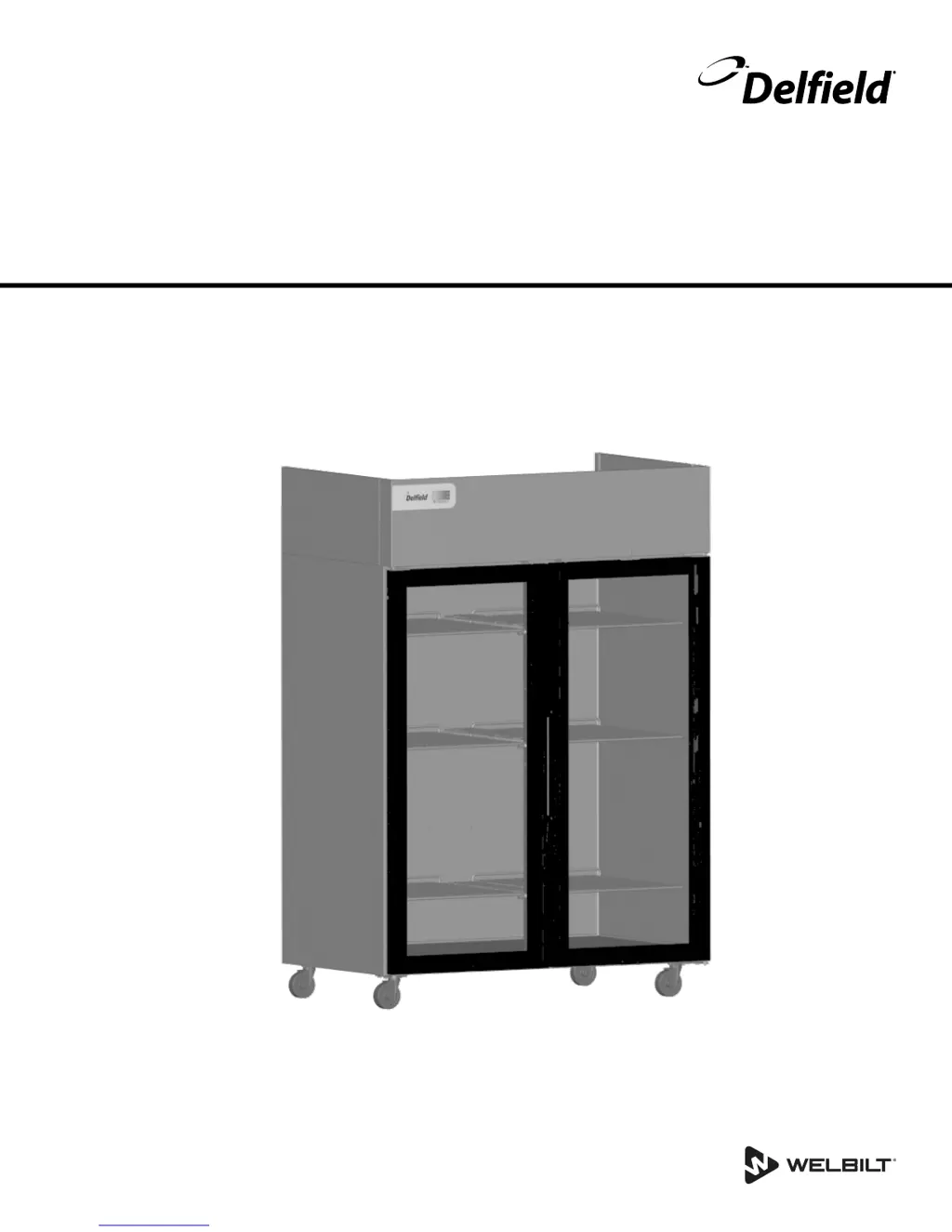

Series GC, GB & GBS Reach-Ins

CoolScapes™

Original Instructions

Installation, Operation and Maintenance Manual

This manual is updated as new information and models are released. Visit our website for the latest manual.

Part Number: 9294839 03/17

Table of Contents

Questions and Answers:

D
Donald BaileyAug 15, 2025
Why is my Delfield CoolScapes GBF3P-S Refrigerator temperature too high?
- L
  lorinewtonAug 15, 2025
  If your Delfield Refrigerator's cabinet temperature is too high, there are several potential causes. Begin by ensuring the thermostat is set to a lower temperature. Check for and correct poor air circulation by rearranging the product inside. Recalibrate the exterior thermometer if it's out of calibration. Allow adequate time for warm products to cool down. Minimize prolonged door openings, ensure the doors are properly closed, and clean the condenser coil. Finally, if the evaporator coil is iced over, turn off the unit to defrost, and verify the thermostat isn't set too cold, also check the door gasket condition.
A
Antonio RobinsonAug 18, 2025
What does E13 mean on a Delfield CoolScapes GBF3P-S Refrigerator display?
- V
  victoriaallenAug 18, 2025
  If the temperature display on your Delfield Refrigerator reads E13, it indicates a communication error between the controller and the display. First, check for loose plugs on the cable connecting the control to the display. If the plugs are secure, the display or control may need to be replaced.
H
harmstrongAug 21, 2025
What does E6 error mean on Delfield CoolScapes GBF3P-S Refrigerator?
- V
  velasquezdustinAug 22, 2025
  If the temperature display on your Delfield Refrigerator reads E6, it means the control has a defective potentiometer. Replace the control to resolve this issue.
E
erikamartinAug 25, 2025
What does E2 error mean on Delfield CoolScapes GBF3P-S?
- C
  Christopher MccarthyAug 25, 2025
  If the temperature display on your Delfield Refrigerator reads E2, the coil temperature sensor circuit is either open or shorted. Check the sensor's resistance for an open or short circuit. If either condition is found, replace the sensor. If the sensor is fine, the control may need to be replaced.
J
Joy PattersonAug 27, 2025
What does E1 mean on Delfield CoolScapes GBF3P-S display?
- G
  Greg LopezAug 27, 2025
  If the temperature display on your Delfield Refrigerator reads E1, it indicates that the box temperature sensor circuit is either open or shorted. To solve this, check the resistance of the sensor for an open or short circuit. If either condition is found, replace the sensor. If the sensor checks out, the control might need replacing.
R
Rebecca YoderAug 30, 2025
Why is my Delfield Refrigerator running constantly?
- M
  Michael RogersAug 30, 2025
  If your Delfield Refrigerator's condensing unit runs for extended periods or continuously, it could be due to several reasons. First, check if you've placed an excessive amount of warm product inside; allow sufficient time for cooling. Ensure doors are closed when not in use to prevent prolonged openings. Inspect door gaskets for proper sealing, adjusting the door or replacing the gasket if needed. Clean the condenser coil, and if the evaporator coil is iced over, turn off the unit to defrost it, ensuring the thermostat isn't set too cold and that the gasket is in good condition.
L
Lisa RoachSep 2, 2025
How to fix a Delfield CoolScapes GBF3P-S that is not running?
- C
  Cheryl HillSep 2, 2025
  If your Delfield Refrigerator cabinet isn't running, check the following: First, replace the fuse or reset the circuit breaker if it has blown or tripped. Ensure the power cord is plugged in. Adjust the thermostat to a lower temperature if it's set too high. Turn the main power switch on if it's off. If it's a freezer model, wait for the defrost cycle to complete.
E
ebeltranSep 5, 2025
What to do if Delfield Refrigerator is freezing food?
- T
  thomas10Sep 6, 2025
  If your Delfield Refrigerator is freezing product, the thermostat might be set too low; try setting it to a higher temperature. A dirty condenser coil can also cause this issue, so cleaning it may help. Lastly, ensure there's enough cabinet clearance for proper refrigeration system operation; adjust the cabinet's position to improve clearance if needed.
R
Rebecca BanksSep 8, 2025
Why won't the compressor start on my Delfield CoolScapes GBF3P-S Refrigerator?
- L
  lisa29Sep 8, 2025
  If your Delfield Refrigerator's compressor will not start, the issue might be due to low voltage. Check the incoming voltage to the cabinet and correct it as necessary.
M
Ms. Audrey Harper DDSSep 12, 2025
How to fix a noisy Delfield Refrigerator?
- B
  Beth ClarkSep 12, 2025
  If your Delfield Refrigerator is making unusual noises, locate and tighten any loose parts.

Delfield CoolScapes GBF3P-S Specifications

General

Brand	Delfield
Model	CoolScapes GBF3P-S
Category	Refrigerator
Language	English

Summary

Installation

Location

Specifies criteria for selecting an optimal and safe installation location for the unit.

Clearance Requirements

Electrical Service

Covers essential electrical requirements including voltage, grounding, and circuit protection.

Leveling

Leg & Caster Installation

Step-by-step guide for installing legs or casters on the unit's base.

Reversible Door Instructions

Detailed procedure for reversing the door swing direction on full door models.

Operation

R290 Controls/Programming/Settings

Overview of the R290 control panel, settings, and initial operation modes.

R290 Freezer

Specific operational guidelines and temperature settings for R290 freezer units.

R290 TEMPERATURE CONTROL & DISPLAY

Explains the functions and status indicators of the temperature control display.

R290 Temperature Control & Display Operation

Details on operating the temperature controls and understanding display readouts.

R290 CHANGING DISPLAY FROM FAHRENHEIT TO CELSIUS ON ERC112 CONTROL

Maintenance

Cleaning and Sanitizing Procedures

General guidelines and schedule for maintaining unit cleanliness and hygiene.

INTERIOR CLEANING

Instructions and precautions for safely cleaning the interior storage area.

EXTERIOR CLEANING

CLEANING THE CONDENSER COIL

Procedure and importance of regularly cleaning the condenser coil for efficiency.

Troubleshooting

Problem -> Cause -> Correction Chart

A comprehensive chart to diagnose and resolve common operational issues.
