F18 Series Service and Installation Manual
21
For customer service, call (800) 733-8829, (800) 773-8821, Fax (989) 773-3210, www.delfield.com

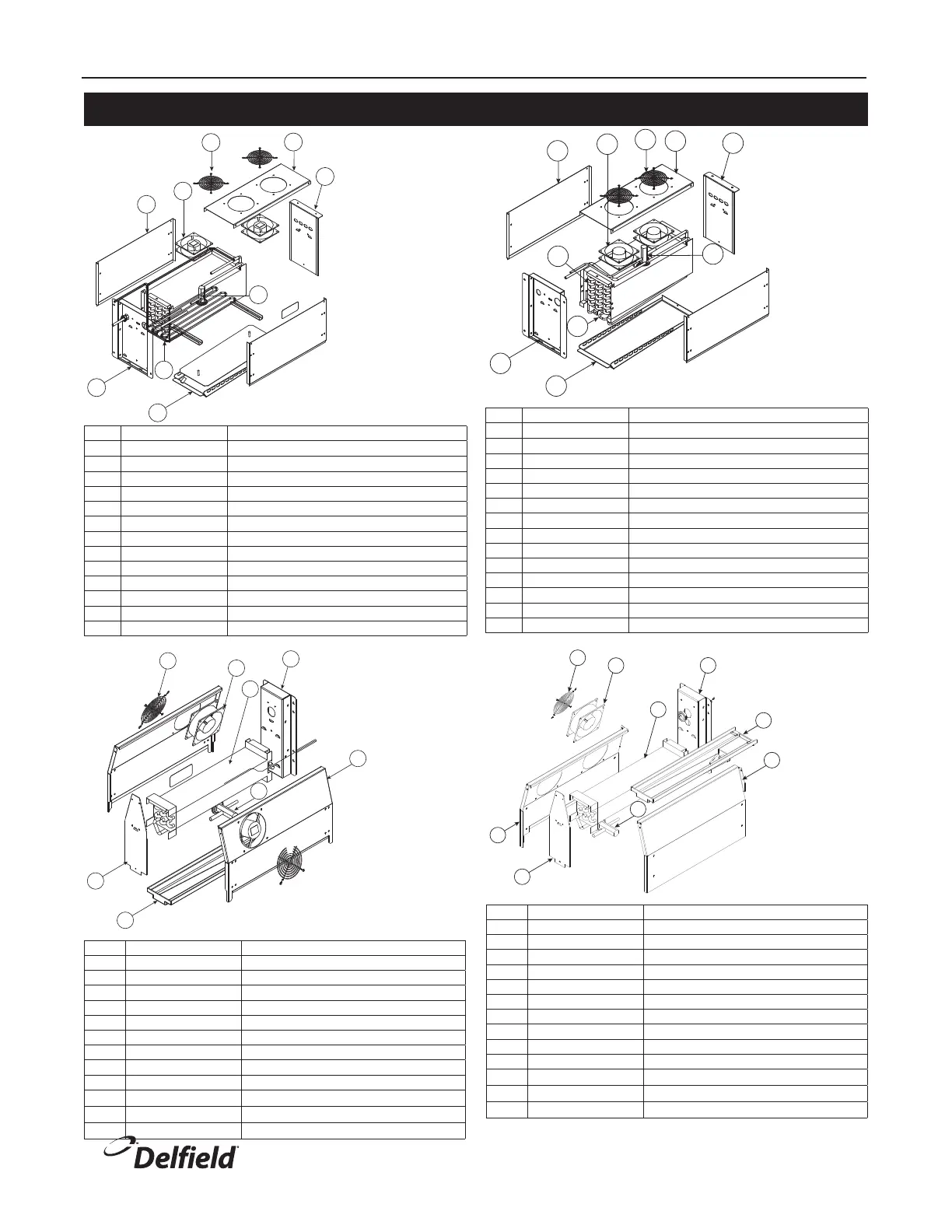

Replacement Part Assemblies
Key Part Number Description
- 000-249-0004 Coil Assembly, Evap, Freezer
1 030-262-0001 Side, evaporator
2 2160023 Fan, axiel
3 2160024 Guard, fan, 4.7", SC120-W2
4 030-260-0001 Top, frz, evaporator
5 030-259-0000 Front, enclosure
6 3516271 Valve, expansion, R404a
7 265-261-0001 Pan, freezer evaporator
8 3516073 Coil, Evaporator
9 030-263-0001 Back, evaporator
- 2184318 Harness, coil, frz, male
- 2194808 Probe, Defrost, Danfoss, Control
- 2194809 Probe, Temp, Sensor, Danfoss
3
2
5
7
9
6
4
1
8
Key Part Number Description
- 000-248-0030 Coil Assembly, R404A, Ref
1 2160024 Guard, fan, 4.7"
2 2160023 Fan, axiel, 120V
3 3516095 Coil, evaporator
4 030-232-0003 Back, evaporator, enclosure
5 3516273 Expansion valve, 1/4, R-404a
6 030-233-0001 Side, coil, angled
7 075-231-0033 Drip pan, evaporator
8 030-234-0003 Front, coil
- 2184317 Harness, coil
- 2194808 Probe, Defrost, Danfoss, Control
- 2194809 Probe, Temp, Sensor, Danfoss
1
2
3
4
5
6
7
8
Key Part Number Description
- 000-249-0006 Coil Assembly, Freezer Evap, Remote
1 030-262-0001 Side, evaporator
2 2160023 Fan, axiel
3 2160024 Guard, fan, 4.7", SC120-W2
4 030-260-0001 Top, frz, evaporator
5 030-259-0000 Front, enclosure
6 3516271 Valve, expansion, R404a
7 3516073 Coil, Evaporator
8 2194034 Heater, Defrost
9 265-261-0001 Pan, freezer evaporator
10 030-263-0001 Back, evaporator
- 2194046 Control, Limit, Fan Delay/Defrost
- 2194631 Fuse, Defrost Heater, 7 Amp
- 2184323 Harness, coil, frz, male, remote
3
2
5
9
10
6
4
1
8
7
1
2
3
4
7
6
5
8
9
Key Part Number Description
- 000-248-0037 Coil Assembly, R404A, Ref, Fan Lt
1 2160024 Guard, fan, 4.7"
2 2160023 Fan, axiel, 120V
3 3516095 Coil, evaporator
4 030-232-0003 Back, evaporator, enclosure
5 000-BNH-0030 Drip pan, evaporator
6 030-233-0038 Side, coil, angled, Rt, Blank
7 3516273 Expansion valve, 1/4, R-404a
8 030-234-0003 Front, coil
9 030-233-0039 Side, Coil, Angled, Lt, 2Fan
- 2184317 Harness, coil
- 2194808 Probe, Defrost, Danfoss, Control
- 2194809 Probe, Temp, Sensor, Danfoss
