F18 Series Service and Installation Manual
For customer service, call (800) 733-8829, (800) 773-8821, Fax (989) 773-3210, www.delfield.com
24

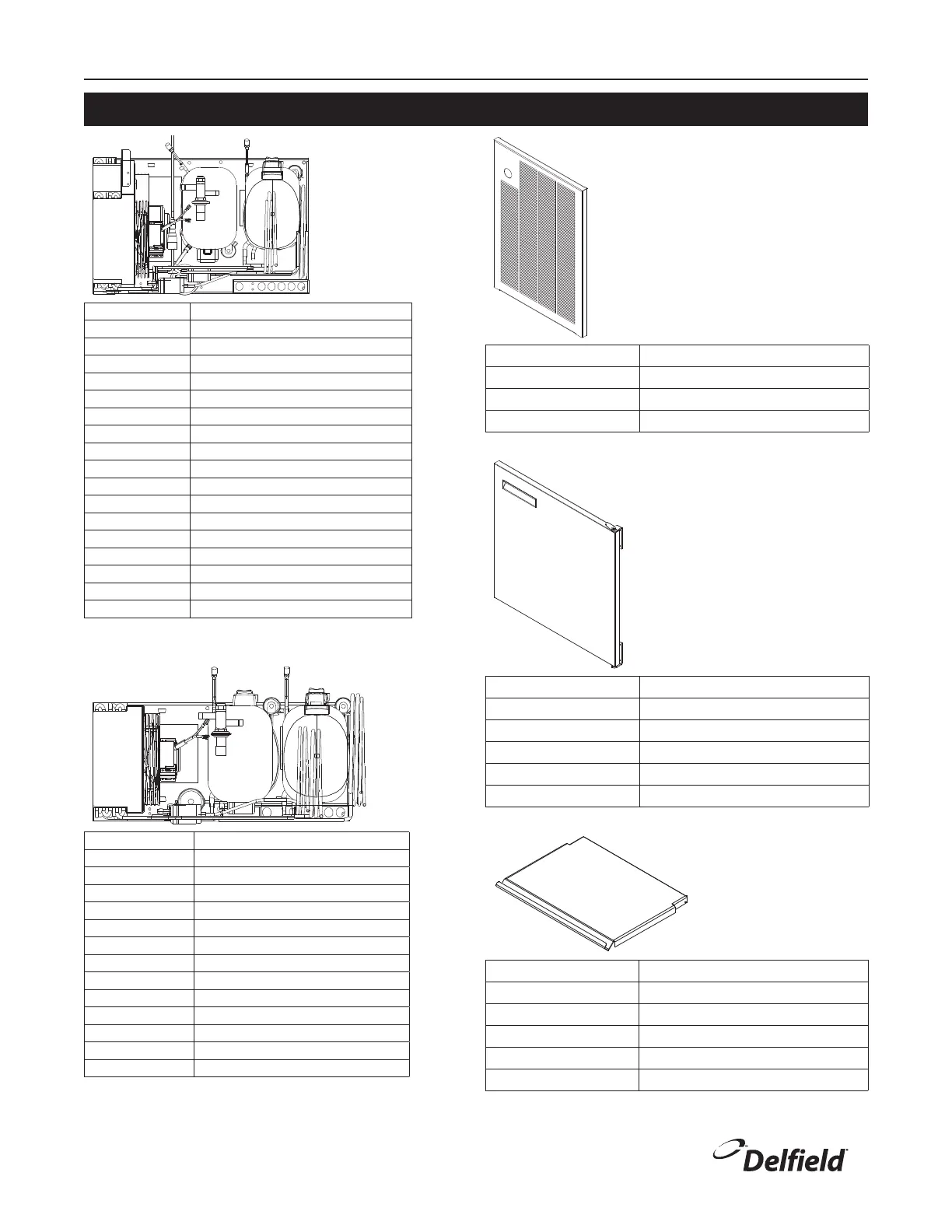

000-BN5-003Y Assembly, 1/2-1/5 Stacked,
3516457 Blade, Fan, 7.25 Dia.,
3516433 Blade, fan, 25deg, 10", cw
2194789 Capacitor, start, 240mfd
2194787 Capacitor, start, 280mfd
3516454 Coil, Condenser, 1/5, 1/4,
3516455 Coil, Condenser, 1/2 Hp
3526997 Compressor, 1/5hp, 115/60, r404a
3527001 Compressor, sc12clx.2, 115/60hz,
3516322 Drier, lter, (2)inlet
2160020 Guard, Fan, 7.25
2160019 Guard, fan, wire
2162717 Motor, fan, 9w, 115v, cw
2162513 Motor, fan, 35w, blast
3516193 Regulator, pressure, 1/2
3516446 Relay, Compressor, Danfoss
3516441 Relay, compressor, sc12clx.2
3516225 Valve, expansion, frz, 1/4ton
000-BN5-0040 Assy, 1/3-1/5 Stacked,
3516457 Blade, Fan, 7.25 Dia.
2194787 Capacitor, start, 280mfd
2194788 Capacitor, start, 320mfd
3516454 Coil, Cond., 1/5, 1/4
3526997 Comp, 1/5hp, 115/60, r404a
3527000 Comp, nf7cls, 115v/60hz
3516322 Drier, lter, (2)inlet
2160020 Guard, Fan, 7.25
2162717 Motor, fan, 9w,115v,cw
3516193 Regulator, pressure, 1/2
3516446 Relay, Comp, Danfoss
3516438 Relay, comp, ovld, nf7clx
3516225 Valve, exp, frz, 1/4ton
359-478-003E Panel, louver, 15.0, ptb
359-478-003D Panel, louver, 18.0, ptb
356-478-0038 Panel, louver, 14.0, sw Cut,lh
356-478-0039 Panel, louver, 18.0, sw Cut, lh
000-187-0081 Door Assembly, ref, 27x26, rt, 430
000-187-0082 Door Assembly, ref, 27x26, lt, 430
000-187-006B Door Assembly, ref, 27x26, lt
000-187-006A Door Assembly, ref, 27x26, rt
1701185 Gasket, door, 27, mark7
0420067 Hinge Kit
000-402-0054 Cover Assembly, hinged, 6 Pan, ptl
000-402-0056 Cover Assembly, hinged, 6pan, l/t
9321374 Pin, hinge, salad Pan
3234266 Hinge, pan Cover, end, rh,
3234282 Hinge, pan Cover, end, lh,
3234392 Hinge, pan Cover,
