Delfield F18 Series User Manual

F18 Series Service and Installation Manual
23
For customer service, call (800) 733-8829, (800) 773-8821, Fax (989) 773-3210, www.delfield.com
1
2
3
4
5
6
8
9
7

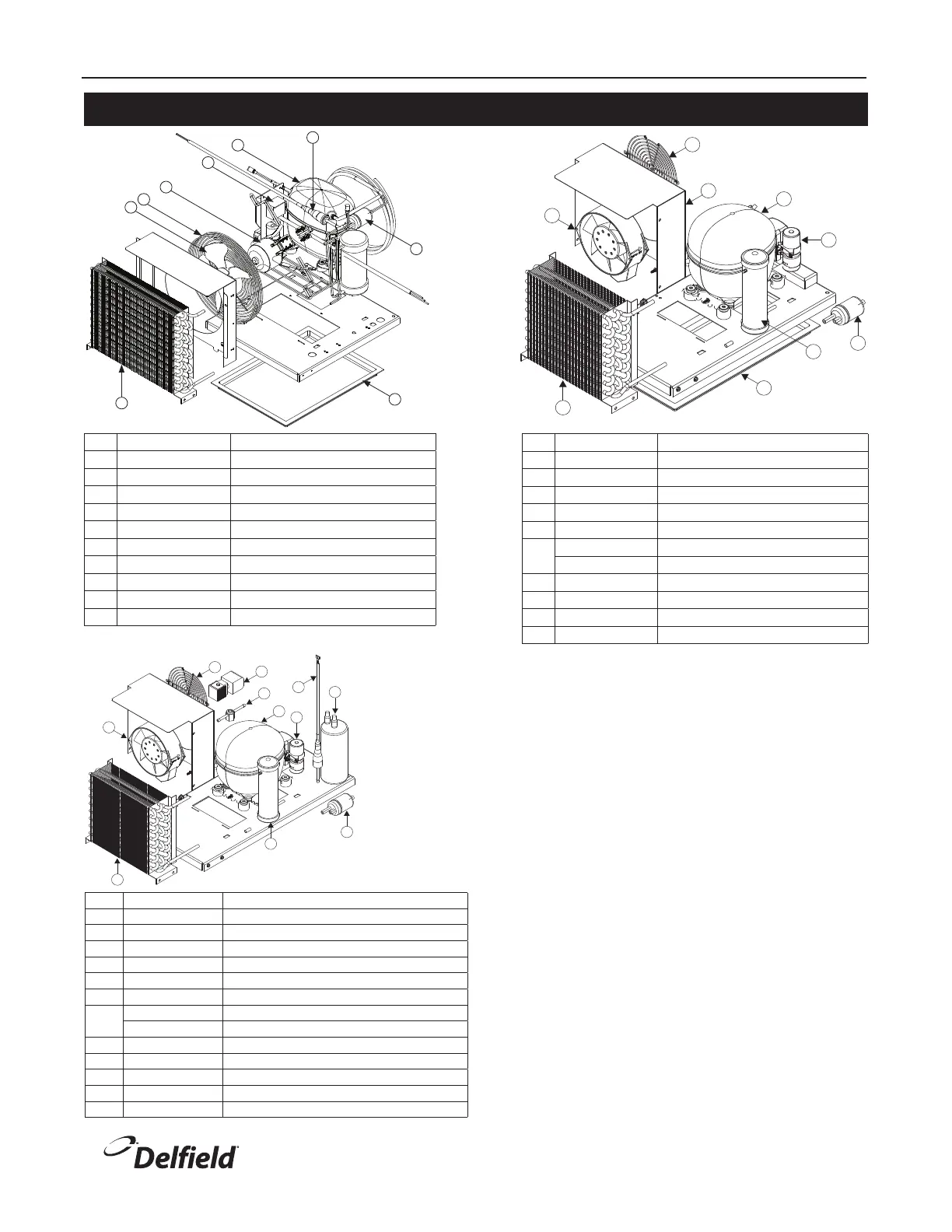

Key Part Number Description
- 000-BN5-0037 Assembly, 1/3 Condensing Unit
1 2160028 Fan, Axial, 5.5", 120V
2 2160030 Guard, Fan, 6.0"
3 026-C58-0037 Shroud, Condenser Coil
4 3527000 Compress, Danfoss, NF7CLS
5
2194788 Start Capacitor
3516438 Relay, overload, compressor
6 3516322 Filter Drier
7 3516458 Receiver tank
8 075-231-0030 Pan, Condensate
9 3516454 Condenser Coil
2
1
3
5
7
8
4
9
6
Key Part Number Description
- 000-BN5-0035 Assembly, 1/2HP Condenser, Med
1 3516554 Condenser fan blade
2 2160019 Condenser fan guard
3 2162716 Condenser fan motor, 115V
4 3516462 Capacitor, start-run assy
5 3527026 Compressor, Danfoss, SC12MLX
6 3516331 Hi pressure switch
7 3516322 Filter Drier
8 075-231-0031 Pan, Condensate
9 3516455 Condenser coil
Replacement Part Assemblies, continued
Key Part Number Description
- 000-BN5-0053 Assembly, 1/3HP Cond, w/rec, hg
1 2160028 Fan, Axial, 5.5", 120V
2 2160030 Guard, Fan, 6.0"
3 3516053 Coil, Solenoid, 120V
4 3516102 Valve, Solenoid, 1/4ODF
5 3527000 Compressor, NF7.0,115/60HZ, Danfoss
6 3516438 Relay, Comp, ovld
2194788 Capacitor, Start, 320MFD
7 000-998-0030 High Pressure Assembly, 8Amp
8 3516397 Accumulator
9 3516322 Filter Drier, (2)Inlet
10 3516458 Receiver
11 3516454 Coil, Condenser
1
2
3
5
6
9
7
11
4
8
10
