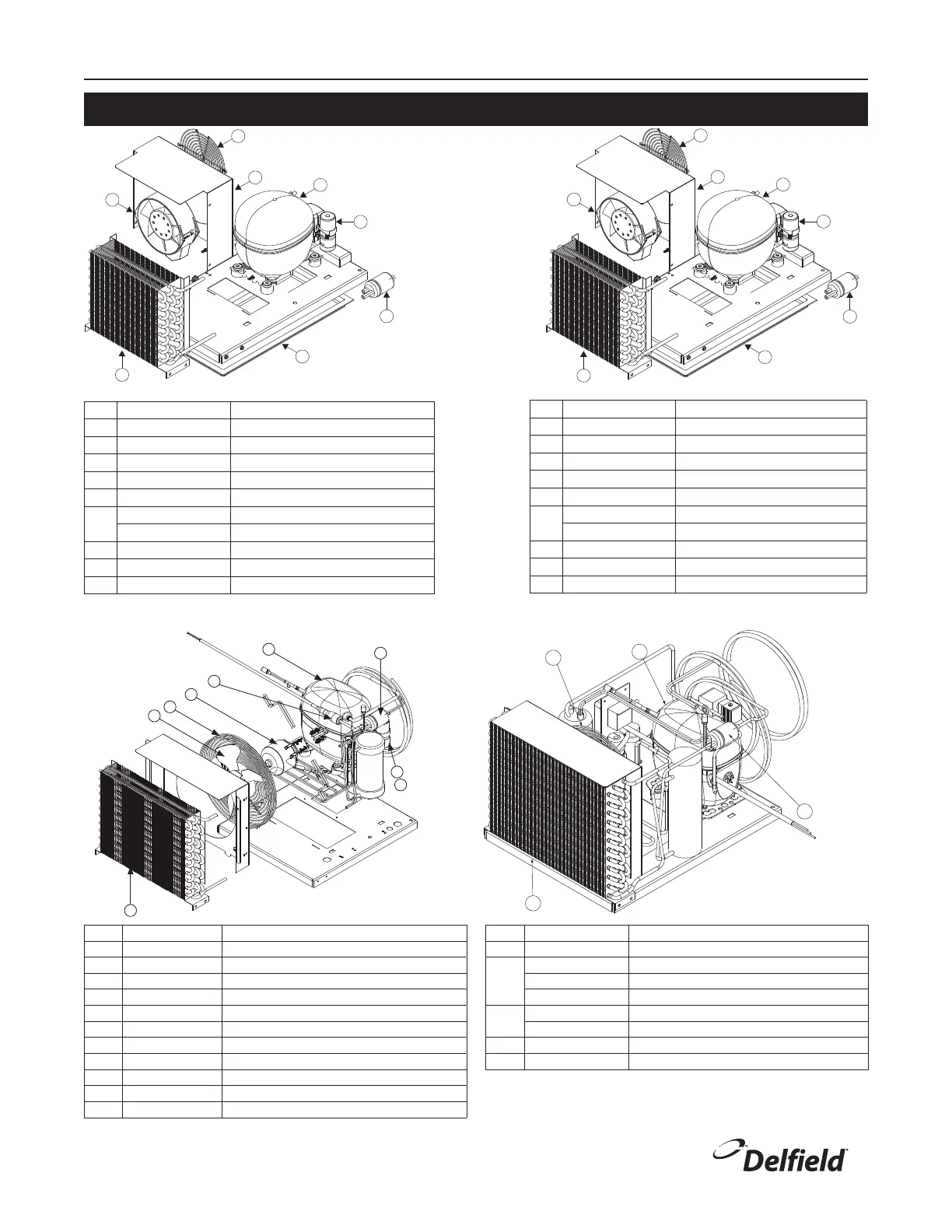

Replacement Part Assemblies, continued
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
Key Part Number Description
- 000-BN5-0030 Assembly, 1/4 HP Condensing Unit
1 2160028 Fan, Axial, 5.5", 120V
2 2160030 Guard, Fan, 6.0"
3 026-C58-0037 Shroud, Condenser Coil
4 3526999 Compressor, Danfoss, NF5.5CLX
5
2194787 Start Capacitor
3516444 Comp, Relay, Overload, NF5.5CLX
6 3516322 Filter Dryer
7 075-231-0030 Condensate Pan
8 3516454 Condenser Coil
Key Part Number Description
- 000-BN5-0031 Assembly, 1/5 Condensing Unit
1 2160028 Fan, Axial, 5.5.", 120V
2 2160030 Guard, Fan, 6.0"
3 026-C58-0037 Shroud, Condenser Coil
4 3526997 Compressor, Danfoss, TF4CLS
5
2194787 Start Capacitor
3516446 Comp, Relay, Danfoss
6 3516322 Filter Dryer
7 075-231-0030 Condensate Pan
8 3516454 Condenser Coil
Key Part Number Description
- 000-BN5-0054 Assembly, 1/2HP Cond, Low, Hot gas
1 3516554 Blade, Fan, 9.00”
2 2160019 Guard, Fan, Wire
3 2162716 Motor, Fan, 16W, 115V, CW
4 3516324 Cutout, High Pressure
5 3527001 Compressor, SC12CLX.2,115/60HZ
6 3516322 Drier, Filter, (2)Inlet
7 2194789 Capacitor, Start, 240MFD
8 3516441 Relay, Comp, SC12CLX.2
9 3516455 Coil, Condenser, 1/2 HP
- 024-034-0031 Pan, Comp, 18.00
Key Part Number Description
- 000-BN5-0055 Assembly, 3/4 HP Cond, Low, Hot gas
1 2160019 Guard, fan condenser
2162716 Motor, condenser fan 16W, 155V
3516433 Blade, fan 10” CW
2 3527002 Compressor, SC18CLS.2, 115V60hz
3516442 Capacitor, start, run assembly
3 3516322 Filter drier
4 3516456 Coil, condenser, 3/4hp
1
2
3
4
3
2
4
5
8
7
6
1
9
