X-ray tube/generator installation (ATXtreme)

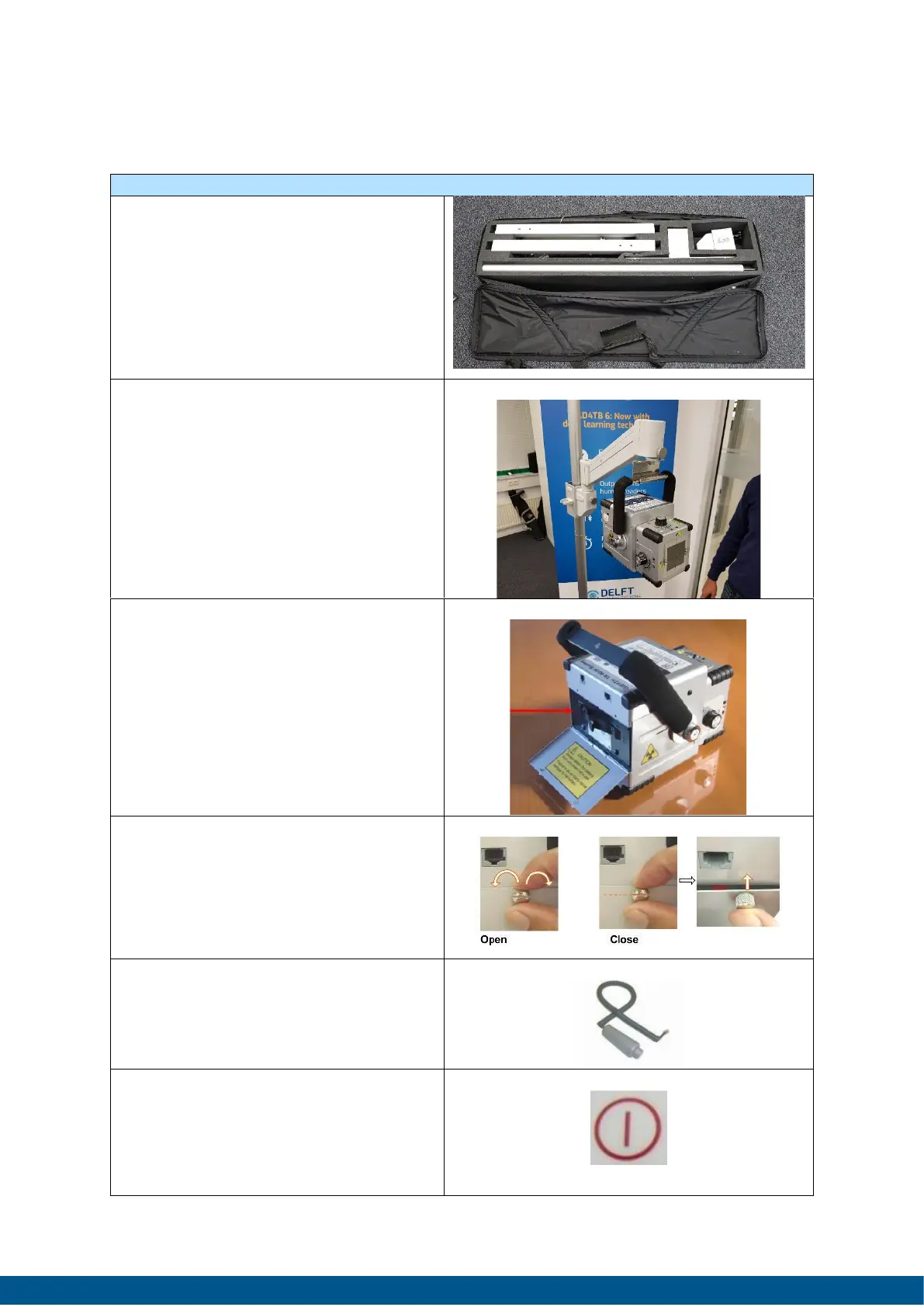

1. Unpack X-ray stand from flight
case and assemble. (Refer to
Delft Light instruction movie
how-to).
2. Using the grip on the ATXtreme
attach the grip to the spring-
arm of the X-ray stand and
securely fasten the provided
screw, level the ATXtreme using
the provided level. Measure
SID with provided ruler.
3. Install the Li-Ion battery.
4. How to open/close battery
compartment:
5. Attach the exposure switch to
RJ45 connector on the back of
the ATXtreme.
6. Power on X-ray by pressing the
power button. After
initialisation the display will
show kV and mAs settings of
the last exposure taken.
