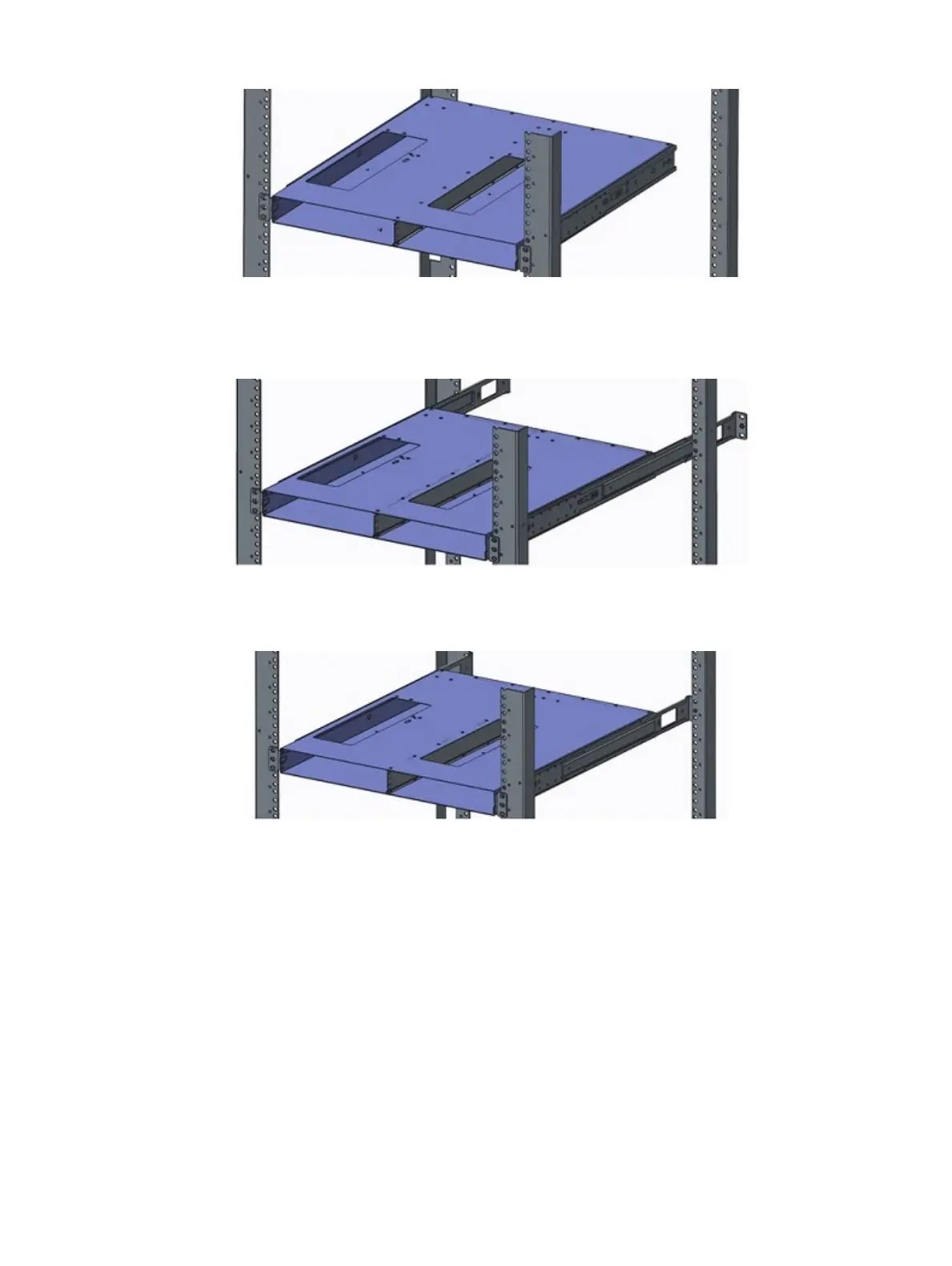

Figure 14. Attach the dual-tray front to the 4-post rack front
7 Attach the rear dual-tray switch rails to the 4-post rack from the rear. Secure the dual tray to the rack using two user-supplied screws
for each rack post.
Figure 15. Attach the dual-tray rear to the 4-post rack rear
8 Tighten all mounting screws to securely mount the dual tray into the 4-post rack.
Figure 16. Secure the dual-tray in the 4-post rack
Switch installation
Install one or two half-RU switches in the four-post rack-mounted dual tray.
1 Install one switch into either dual-tray slot from the front.
S4112–ON Series installation
23
