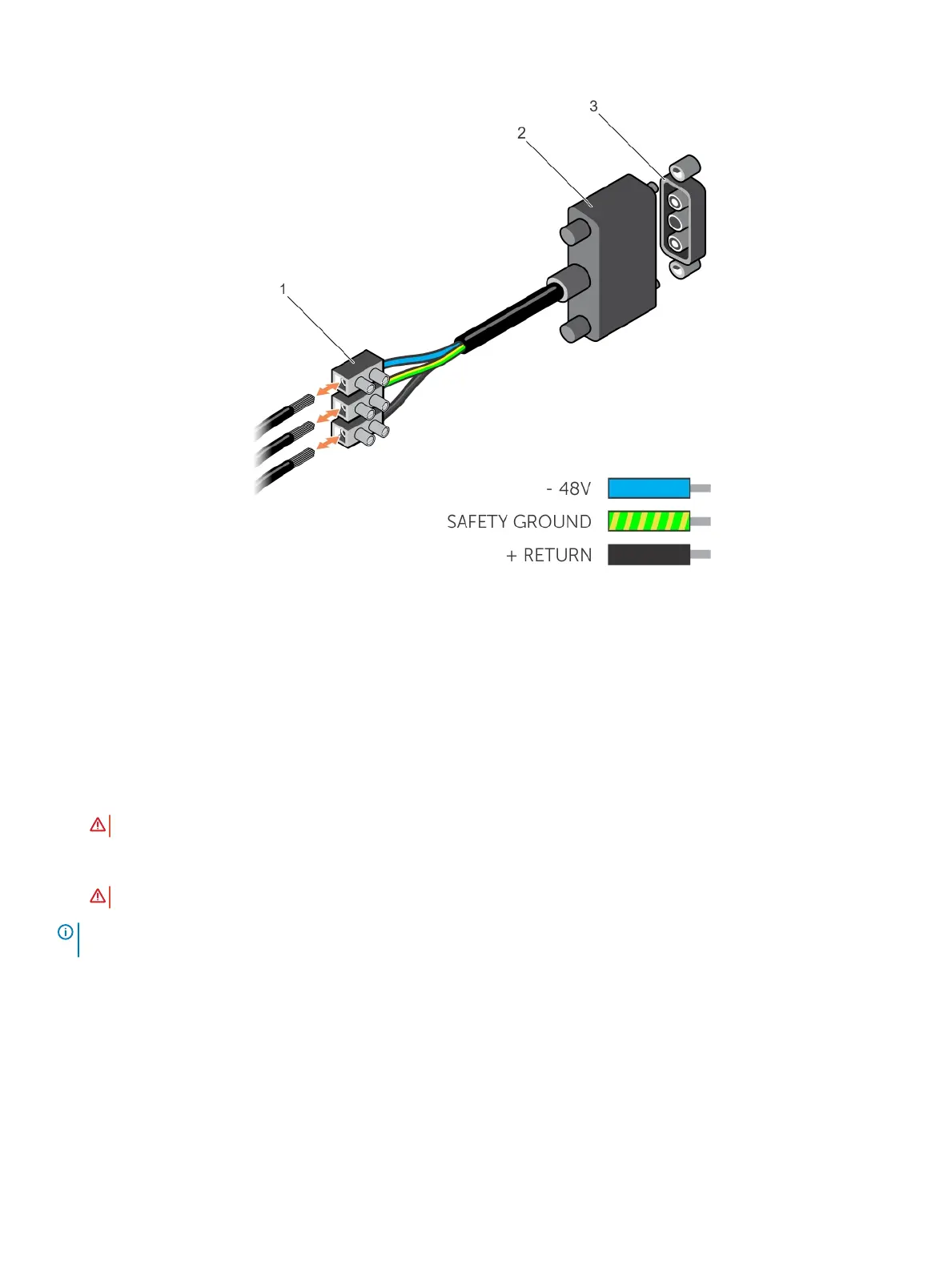

Figure 26. DC power connector and wiring block
1
Wiring block 2 Power connector
3 PSU connector
1 Strip a 1/2 inch section of insulation from each of the power connector’s wires, as shown.
2 Insert each of the power connector’s bare wire lengths into the wiring block. The blue wire is -48V, the black wire is the positive
return, and the yellow/green wire is the ground wire, as shown.
3 Use a at-blade screwdriver to tighten the screws that secures the bare wires into the wiring block.
4 Secure the site’s DC power source wires to the other side of the wiring block, see steps 1 and 3.
WARNING
: Do not cross the wires.
5 Insert the DC power connector into the power socket of the DC PSU. Ensure that the connector pins rmly seat and you hear the
click of the power connector’s left and right levered clamps lock into place.
WARNING
: Never try to force the power connector into or out of the DC PSU power socket.
NOTE: To remove the power connector from a DC PSU, unscrew the thumb screws and pull the power connector from the DC
PSU socket.
Power supplies 31
