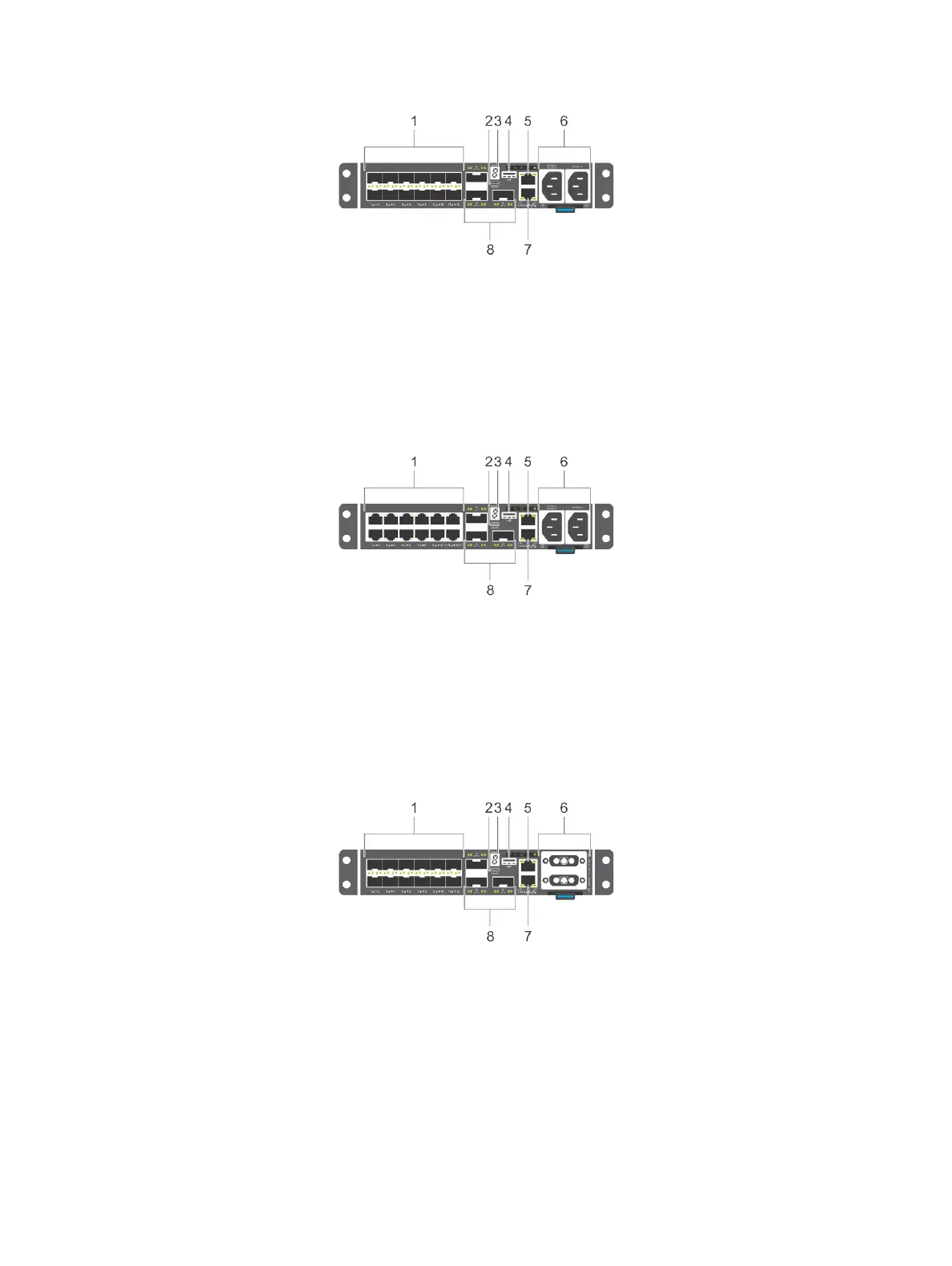

Figure 2. S4112F–ON Series AC I/O-side view
1 Twelve SFP+ ports 2 Micro USB-B console port
3 Stack ID 4 Ethernet management port
5 RS-232 console port 6 AC PSUs
7 RJ-45 management port 8 Three QSFP28 ports
Figure 3. S4112T–ON Series AC I/O-side view
1
Twelve SFP+ ports 2 Micro USB-B console port
3 Stack ID 4 Ethernet management port
5 RS-232 console port 6 AC PSUs
7 RJ-45 management port 8 Three QSFP28 ports
Figure 4. S4112F–ON Series DC I/O-side view
1
Twelve RJ-45 ports 2 Micro USB-B console port
3 Stack ID 4 Ethernet management port
5 RS-232 console port 6 DC PSUs
7 RJ-45 management port 8 Three QSFP28 ports
8 S4112–ON Series switch
