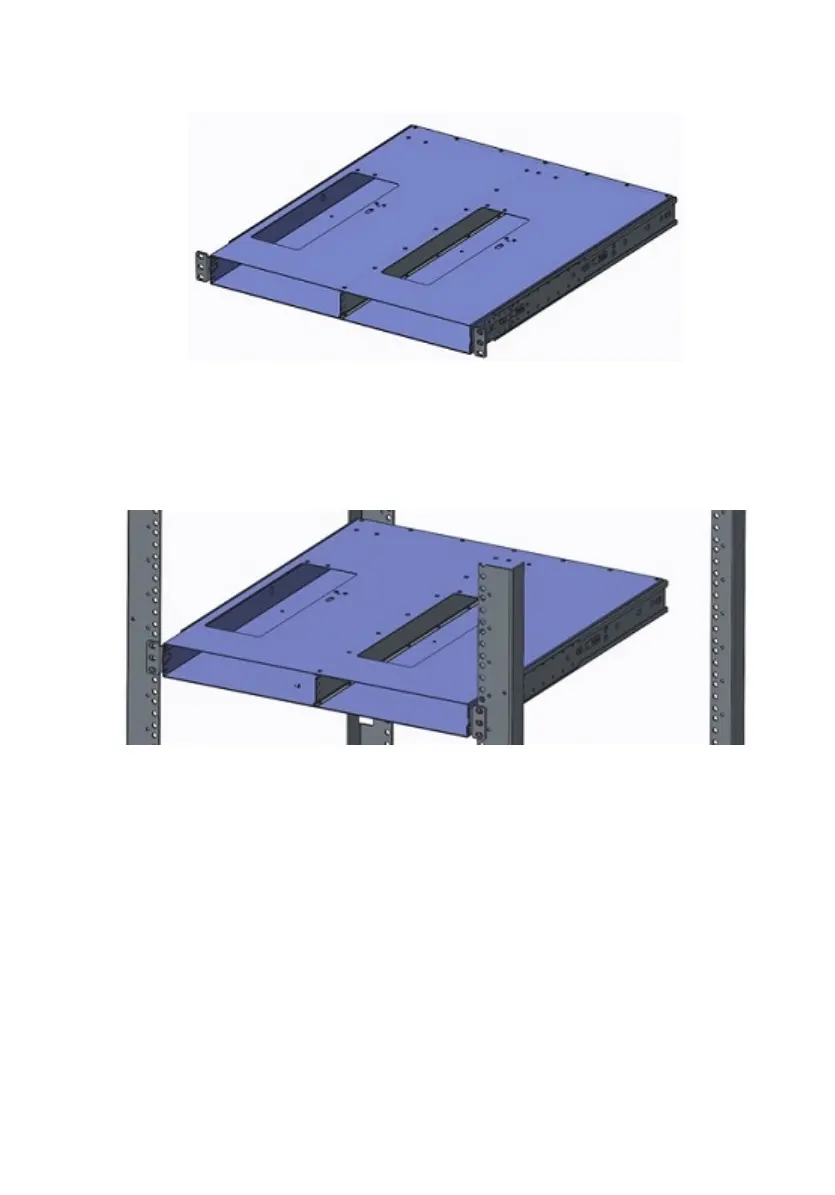

Figure 3. Attach dual-tray and rack mounting rails
5 Install the dual tray inside the four-post rack. Rackmount screws are not included.
6 Attach the front dual-tray switch rails to the four-post rack from the front. Secure the
dual tray to the rack using two user-supplied screws for each rack post.
Figure 4. Attach the dual-tray front to the four-post rack front
7 Attach the rear dual-tray switch rails to the four-post rack from the rear. Secure the
dual tray to the rack using two user-supplied screws for each rack post.
16
S5200F-ON Series switch Installation
