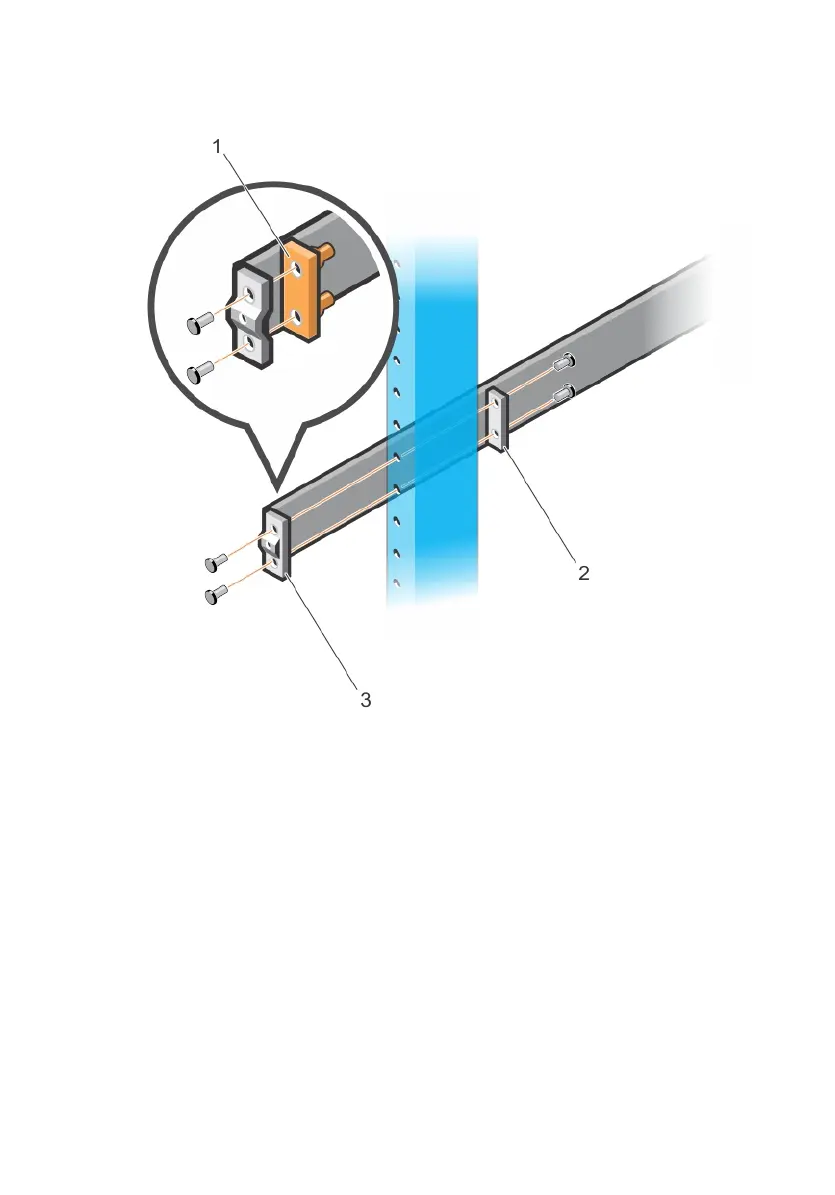

Figure 13. Two-post ush-mount installation
2 Attach one rail to the front post ange with two user-supplied screws, item 2.
3 Slide the plunger bracket forward against the vertical post and secure the plunger
bracket to the post ange with two user-supplied screws, item 3.
4 Repeat this procedure for the second rail.
S5200F-ON Series switch Installation
23
