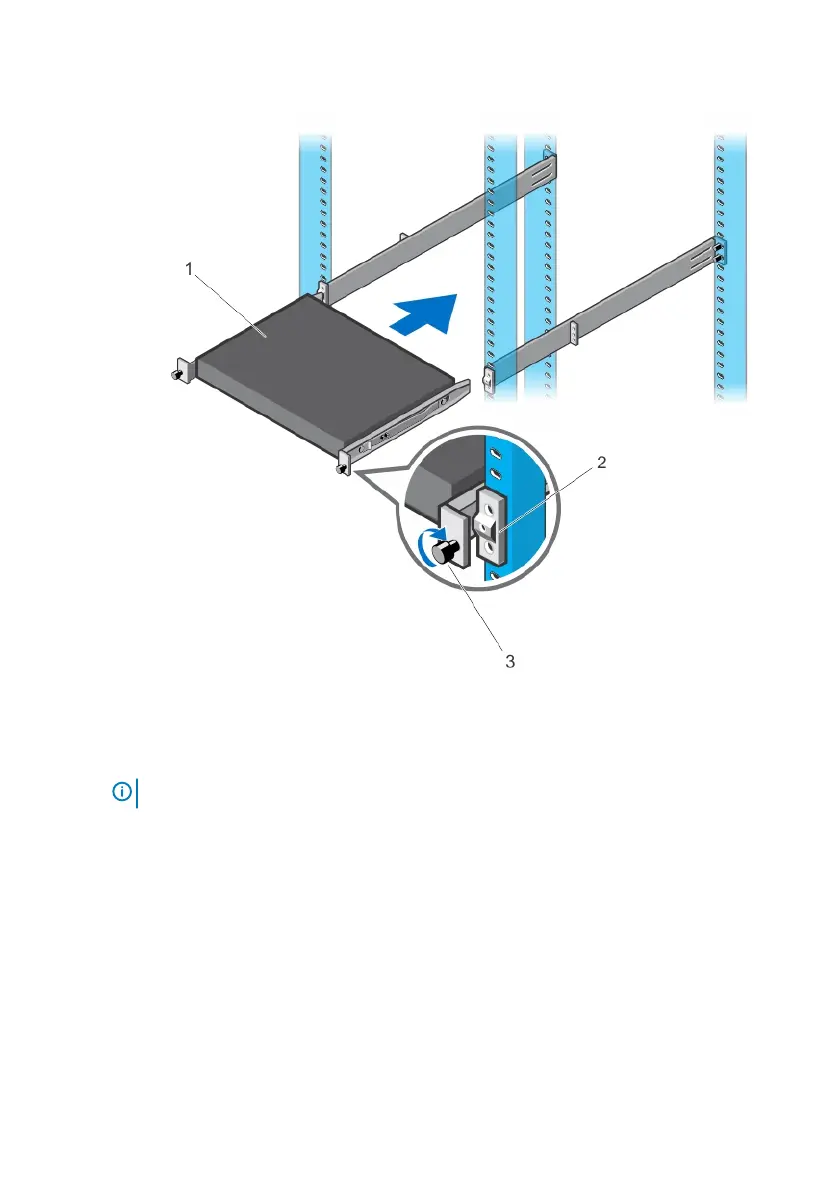

Figure 17. Front rack installation
NOTE
: Do not the use the mounted Ready-Rails as a shelf or a workplace.
3 Tighten the two thumb screws and rack screws.
To remove the chassis from the rack or cabinet, press in the two side-release bars on the
chassis at the same time and slide the chassis forward.
S5200F-ON Series switch Installation
29
