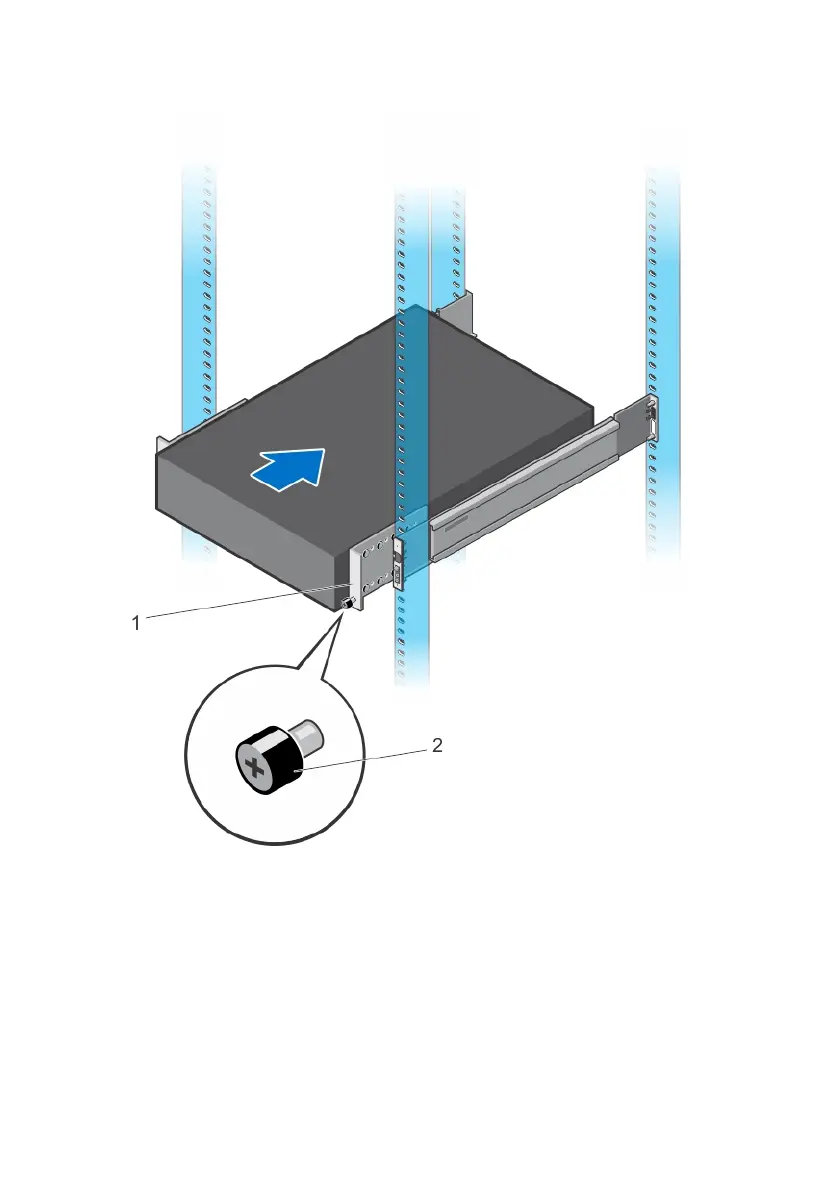

Figure 18. S5296F-ON installation
1
Extra screws to restrict front-back
movement of the switch.
2 Main screw
32 S5200F-ON Series switch Installation
