Install the disk processor enclosure
There are two types of DPE(s). Each is 2U. One utilizes 3.5" disks, while the other
utilizes 2.5" disks. The installation procedure is identical, no matter which one you
have in your system.
The DPE has a Product Serial Number Tag (PSNT) attached to the front of the
chassis. On a DPE with 12 horizontal 3.5" drive slots, the tag is located on the top
edge near the right side, see Figure 1 on page 18.

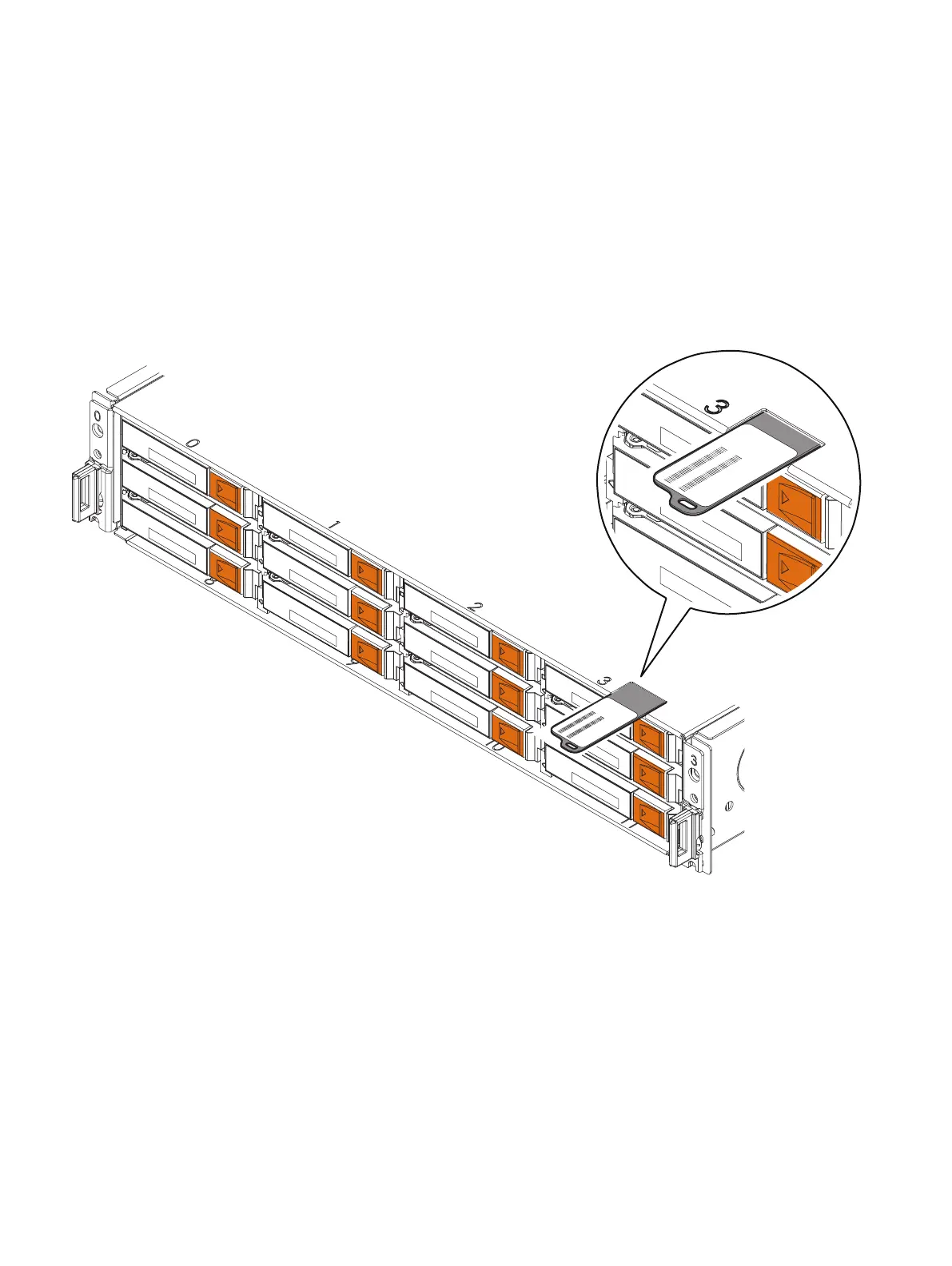

Figure 1 PSNT location on DPE with 12-drive slots
P
ROD ID/SN: FNM01234567891
P
N: 123-456-
7
89 (OBERON)
PR
OD ID/SN: FNM
0
1
2
3
4
5
6
7
8
9
1
PN: 1
2
3
-456-789 (O
BERO
N)
CL5779
On a DPE with 25 vertical 2.5" drive slots, the tag is located below the DPE power
status LED between drive slots 16 and 17, see Figure 2 on page 19.
Install your storage system components into a rack
18 Unity 300/300F, Unity 350F, Unity 380/380F, Unity 400/400F, Unity 450F, Unity 500/500F, Unity 600/600F
and Unity 650F Installation Guide
