Install the disk array enclosure
There are two types of DAEs. One is a 3U 15 disk 3.5" drive DAE. The other is a 2U 25
disk 2.5" drive DAE. DAEs are optional. The installation procedures are slightly
different for each.
Install 15-drive DAE
Installing snap-in rails in the cabinet
The snap-in rails are dedicated left and right, and cannot be interchanged. The front
edge of each rail is stamped L or R for left or right side when the rail faces the cabinet
front.
The snap-in rails have two key tabs at the top and bottom edge on the rear of each
rail. The key tabs ensure that the rails are installed in the appropriate 2U space.
Procedure
1. From the rear of the cabinet, insert the two key tabs into the holes of the 2U-
space on the rear cabinet channel.

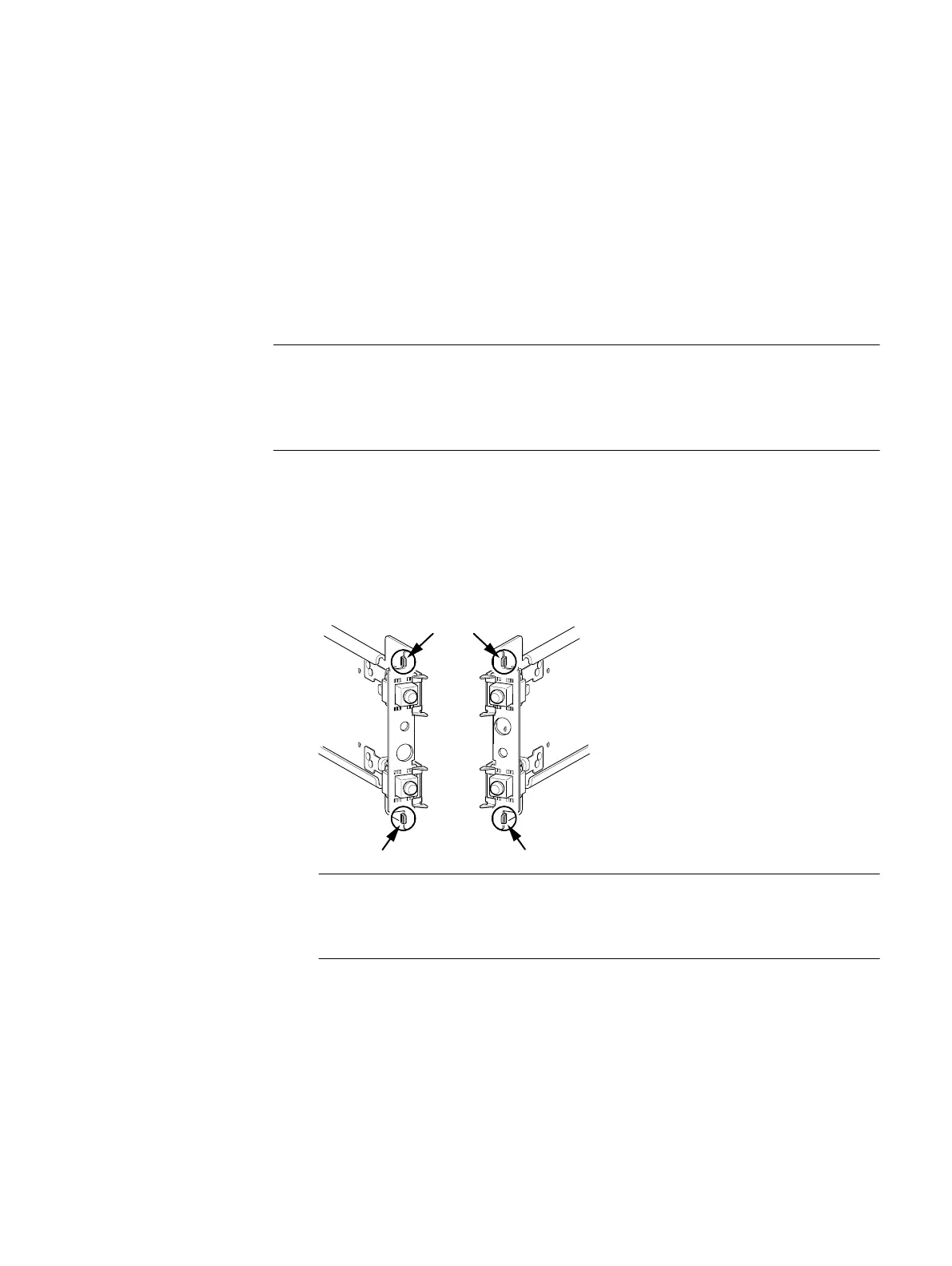

Figure 14
Key tabs at rear rail top and bottom edge
Right Rear
Left Rear
Key Tabs
CL5866
As the key tabs and adaptors are pushed into the rear mounting holes, the
spring clips will ride over the cabinet channel and snap into place.
2. Holding the rail extended, push the key tabs and the adaptors into the rear
mounting holes until the spring clips snap into place on the outside of the rear
cabinet channel.
Install your DAE components into a rack
44 Unity 300/300F, Unity 350F, Unity 380/380F, Unity 400/400F, Unity 450F, Unity 500/500F, Unity 600/600F
and Unity 650F Installation Guide
